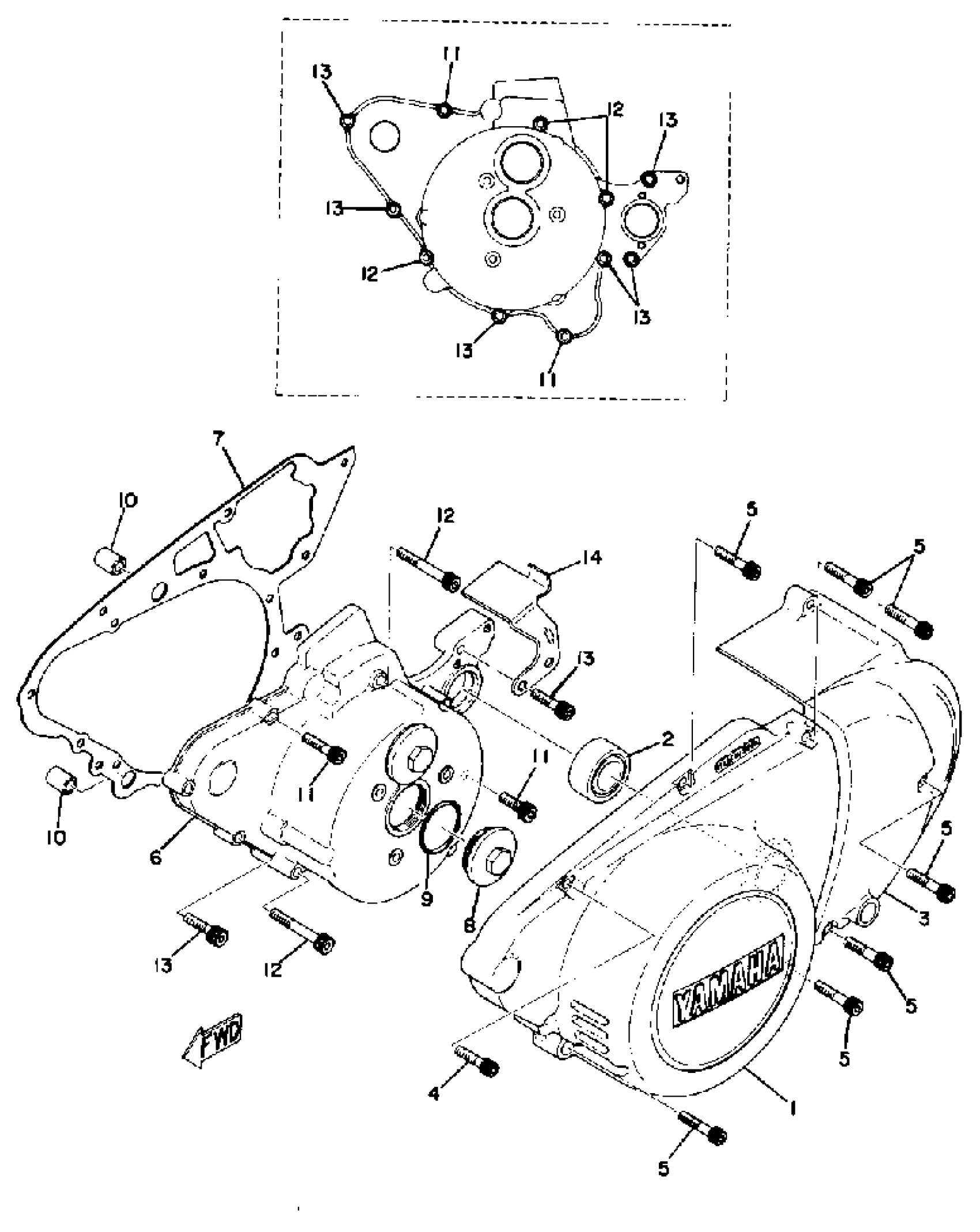

Yamaha TX750 (TX750) 1973 CRANKCASE COVER LEFT Diagram

#

Description
Price

1

COVER, CRANKCASE L

(341-15411-01-00)

Unavailable

2

SEAL, AIR DUCT

(341-15474-00-00)

Unavailable

3

COVER, CRANKCASE R

(341-15421-02-00)

Unavailable

4

BOLT,SOCKET

91317-06025-00

$5.60

5

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

6

COVER, GENERATOR

(341-15415-02-00)

Unavailable

7

GASKET 1

341-15455-14-00

Unavailable

8

COVER, GENERATOR R

341-15425-01-00

Unavailable

9

O-RING (5H0)

93210-34474-00

$5.60

10

PIN, DOWEL

99530-12016-00

$4.89

11

BOLT,SOCKET

91317-06025-00

$5.60

12

BOLT,SOCKET

91317-06050-00

$3.88

13

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

14

PROTECTOR

(341-81614-04-00)

Unavailable
