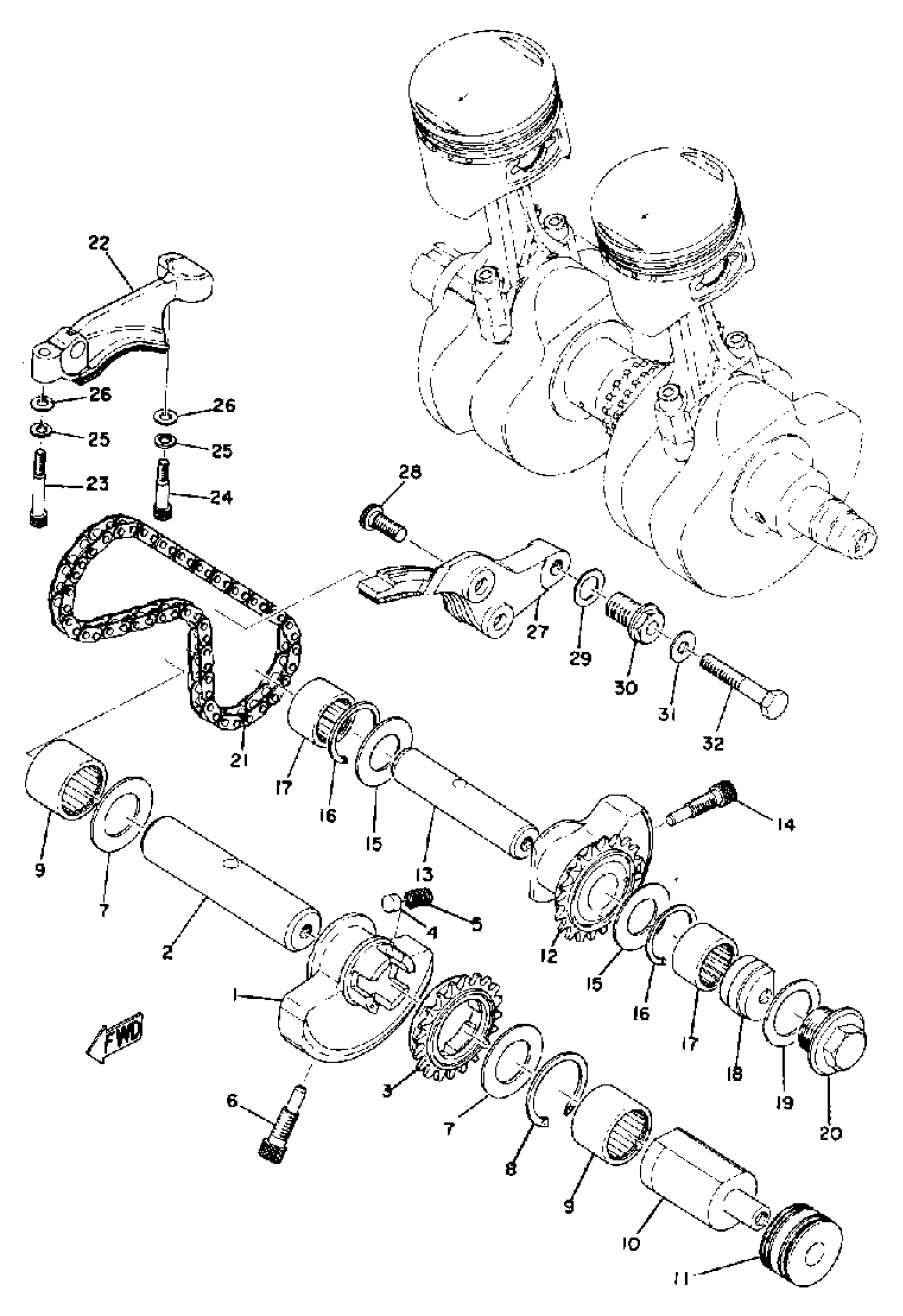

Yamaha TX750 (TX750) 1973 CRANK BALANCER (OLD TYPE) Diagram

#

Description
Price

1

WEIGHT 1

(341-11454-05-00)

Unavailable

1

BOLT

(90109-10169-00)

Unavailable

2

SHAFT 1

(341-11455-40-00)

Unavailable

3

SPROCKET, WHEEL

(341-11458-05-00)

Unavailable

4

PIN, DOWEL

93605-10090-00

$8.49

5

SPRING COMPRESSION341114880000

90501-21133-00

$8.49

6

BOLT

(90109-10169-00)

Unavailable

7

WASHER, PLATE

90201-25345-00

Unavailable

8

CIRCLIP, INNER

(93450-36018-00)

Unavailable

9

BEARING, CYLINDER.#11

(93311-52510-00)

Unavailable

10

PLUG

(341-11469-01-00)

Unavailable

11

PLUG

(341-11493-00-00)

Unavailable

12

NO LONGER AVAILABLE

341-11464-06-00

Unavailable

13

SHAFT 2

(341-11465-40-00)

Unavailable

14

BOLT

(90109-10169-00)

Unavailable

15

WASHER, PLATE

90201-20358-00

Unavailable

16

CIRCLIP, INNER

93450-30019-00

Unavailable

17

BEARING, CYLINDER.#11

93311-42009-00

Unavailable

18

SPACER

(341-11485-00-00)

Unavailable

19

GASKET

(341-11479-03-00)

Unavailable

20

PLUG, STRAIGHT SCRW (341-11477-02)

90340-32012-00

Unavailable

21

CHAIN

94563-16054-00

Unavailable

22

GUIDE, UPPER

(341-11474-06-00)

Unavailable

23

BOLT

(90109-06186-00)

Unavailable

24

BOLT (341-12249-00)

90109-06098-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLATE (371)

90201-06431-00

Unavailable

27

GUIDE, CHAIN

(341-11457-06-00)

Unavailable

28

SCREW, SPEC''L SHAPE

(90149-08082-00)

Unavailable

29

GASKET 256131670000

90430-14043-00

Unavailable

30

GASKET, OIL SEALING

(341-15395-00-00)

Unavailable

31

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

32

BOLT, HEXAGON

97013-08050-00

Unavailable
