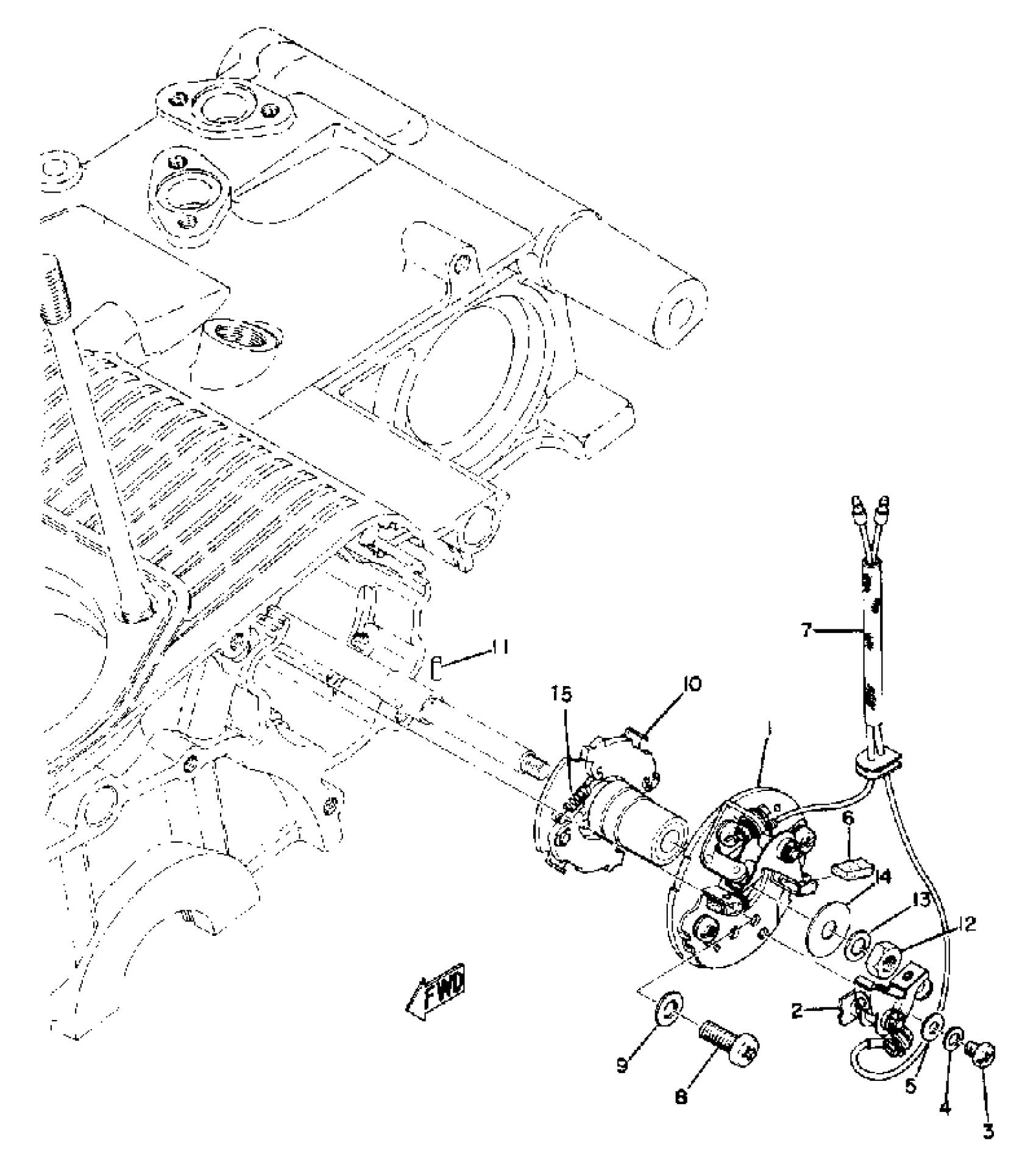

Yamaha TX750 (TX750) 1973 CONTACT BREAKER - GOVERNOR Diagram

#

Description
Price

1

BREAKER PLATE ASSEMBLY

341-81620-11-00

Unavailable

2

CONTACT BREAKER ASSY

256-81621-11-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

5

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

6

. LUBRICATOR

256-81631-10-00

Unavailable

7

WIRE, LEAD

(341-81615-11-00)

Unavailable

8

SCREW, PAN

98507-06014-00

$8.49

9

WASHER, PLATE (371)

90201-06431-00

$5.60

10

GOVERNOR ASSEMBLY

(341-81653-11-00)

Unavailable

11

PIN, DOWEL

93603-07073-00

$9.49

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER PLATE 256216150000

90201-06062-00

$10.49

15

SPRING, GOVERNOR

(341-81654-10-00)

Unavailable
