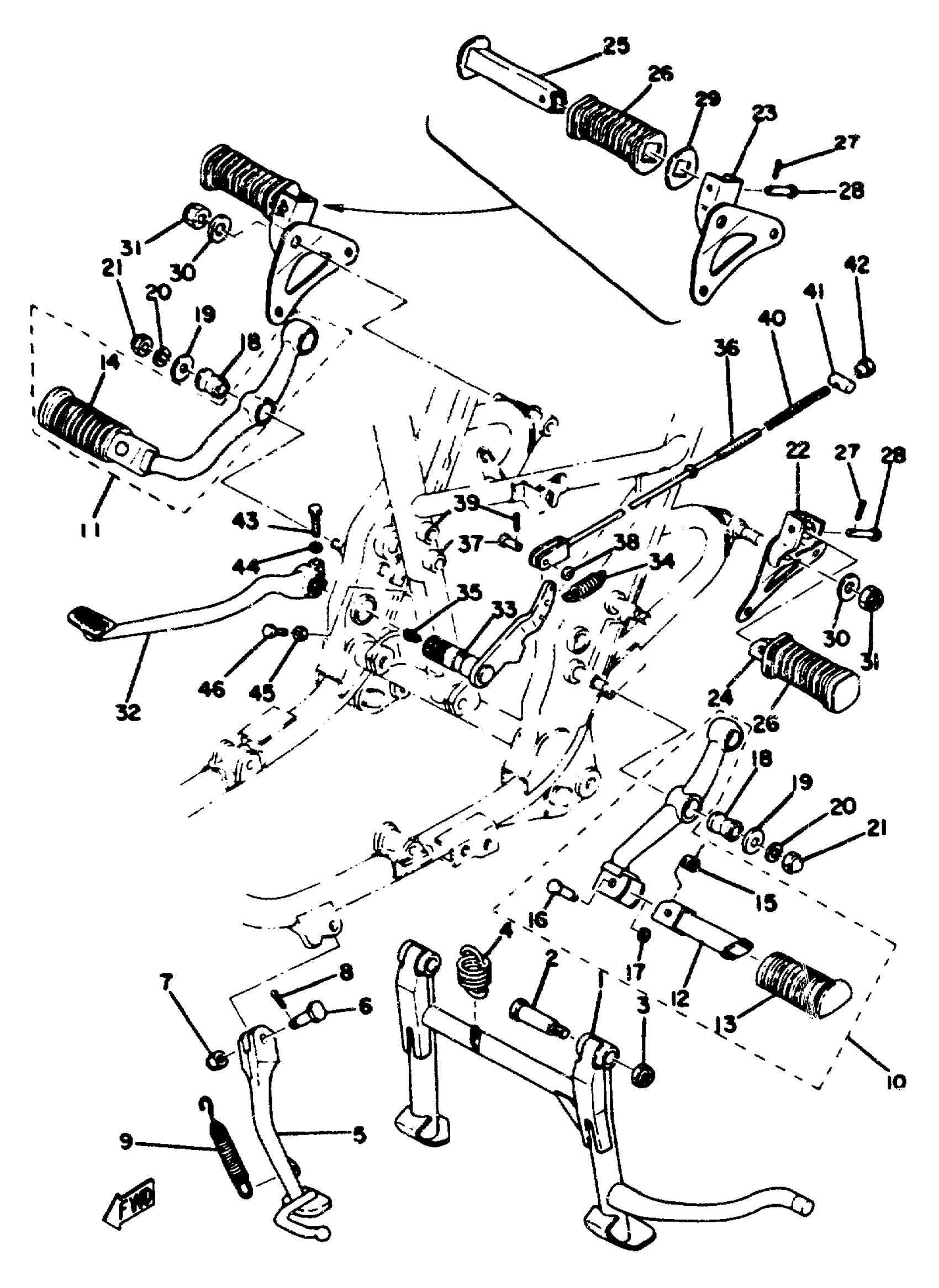

Yamaha TX650A (TX650) 1974 STAND FOOTREST BRAKE PEDAL XS650C Diagram

#

Description
Price

1

STAND, MAIN

1T3-27111-02-00

Unavailable

2

BOLT

90109-10268-00

Unavailable

3

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

4

SPRING, TENSION

90506-50064-00

Unavailable

5

STAND, SIDE

(447-27311-06-00)

Unavailable

6

BOLT

(90109-08185-00)

Unavailable

7

NUT, SLOTTED

95307-08900-00

Unavailable

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING (460)

90507-29009-00

$20.99

10

FRT FOOTREST ASY L

1T3-27410-00-93

Unavailable

11

FRT FOOTREST ASSEMBLY R

1T3-27420-00-93

Unavailable

12

. FOOTREST

341-27451-00-00

Unavailable

13

. COVER, FOOTREST

341-27423-00-00

Unavailable

14

. COVER, FOOTREST

341-27413-00-00

Unavailable

15

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

16

PIN (214-27418-00)

90243-08006-00

Unavailable

17

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

18

DAMPER, FOOTREST

256-27414-00-00

Unavailable

19

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

21

NUT, CROWN(3BM)

90176-10073-00

Unavailable

22

BRACKET 1

584-27432-00-00

Unavailable

23

BRACKET 2

584-27442-00-00

Unavailable

24

FOOTREST, REAR 1

447-27431-00-00

Unavailable

25

FOOTREST, REAR 2

447-27441-00-00

Unavailable

26

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

27

PIN, COTTER

91490-16020-00

Unavailable

28

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

29

WASHER 447274370000

90209-18070-00

Unavailable

30

WASHER, PLATE (707)

90201-13645-00

Unavailable

31

NUT, SELF-LOCKING(1KH)

90185-12134-00

Unavailable

32

PEDAL, BRAKE

533-27211-01-93

Unavailable

33

SHAFT, BRAKE PEDAL

533-27212-00-00

Unavailable

34

SPRING, TENSION(1FN)

90506-20380-00

Unavailable

35

NIPPLE, GREASE

93700-06M03-00

Unavailable

36

ROD, BRAKE

447-27231-02-00

Unavailable

37

PIN 1562723700

90249-12008-00

Unavailable

38

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

39

PIN, COTTER

91490-20025-00

$1.99

40

SPRING, (180-27236-00)

90501-10245-00

Unavailable

41

PIN 1562723700

90249-12008-00

Unavailable

42

NUT (25K)

90179-06411-00

Unavailable

43

BOLT, HEXAGON

97017-06025-00

Unavailable

44

WASHER, SPRING

92995-06100-00

Unavailable

45

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

46

SCREW 341272170000

90153-06008-00

Unavailable
