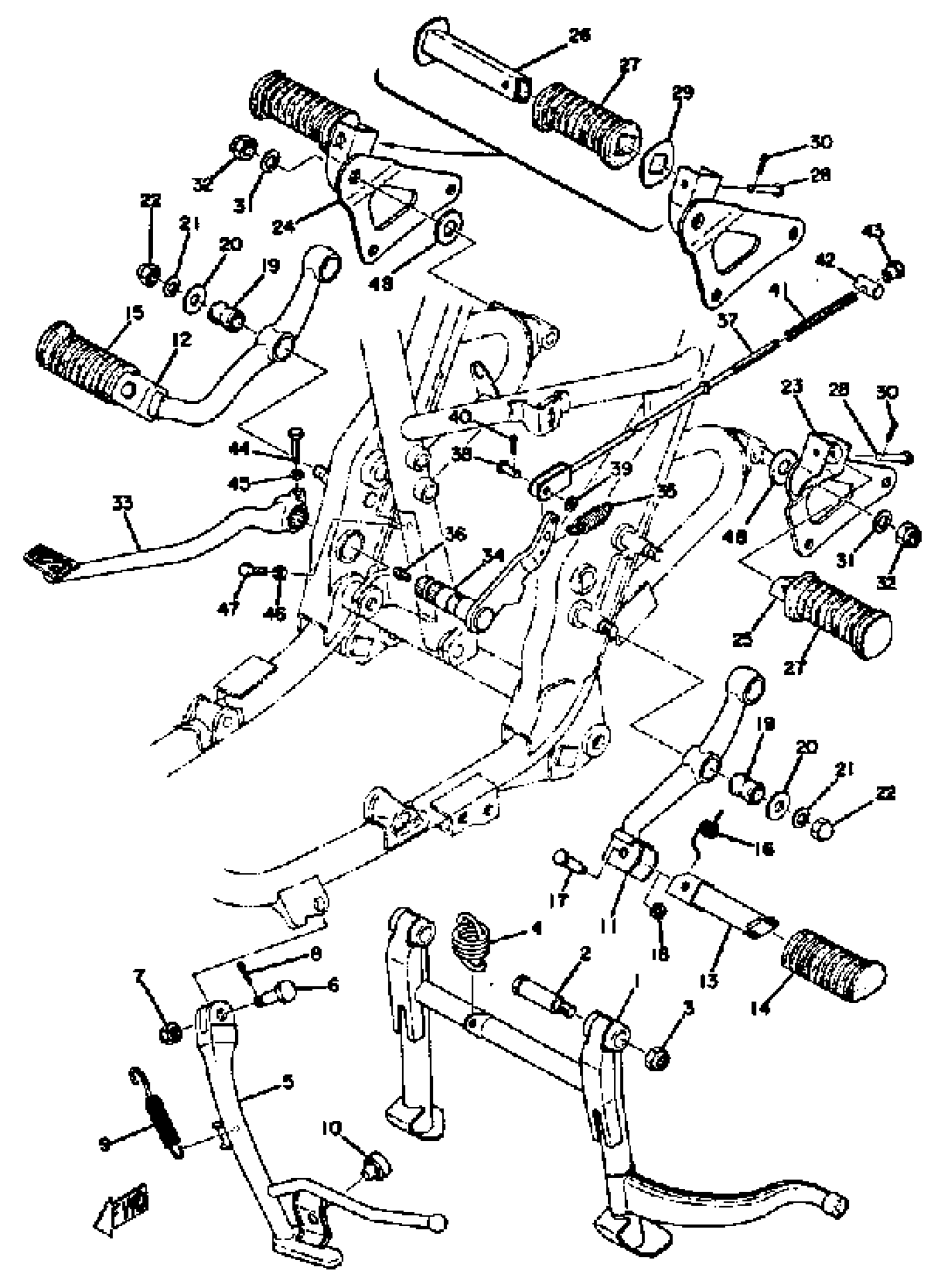

Yamaha TX650A (TX650) 1974 STAND FOOTREST BRAKE PEDAL TX650A - XS650B Diagram

#

Description
Price

1

STAND, MAIN

1T3-27111-02-00

Unavailable

2

BOLT

90109-10268-00

Unavailable

3

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

4

SPRING, TENSION

90506-50064-00

Unavailable

5

STAND, SIDE

(341-27311-01-00)

Unavailable

5

STAND, SIDE

(447-27311-06-00)

Unavailable

5

BOLT 266273170000

90109-08034-00

$7.49

5

. UNAVAILABLE IN PRICE BOOK

[90-50623-14-70

Unavailable

5

. NUT

95380-08700-00

Unavailable

5

SIDE STAND 447-03

(99999-01242-00)

Unavailable

6

BOLT

(90109-08185-00)

Unavailable

7

NUT, SLOTTED

95307-08900-00

Unavailable

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING TENSION 150273160000

90506-25047-00

$9.49

9

SPRING (460)

90507-29009-00

$20.99

10

STOPPER

341-27314-02-00

Unavailable

10

STOPPER, MAIN STAND

371-27114-00-00

Unavailable

11

FRT FOOTREST ASY L

1T3-27410-00-93

Unavailable

12

FRT FOOTREST ASSEMBLY R

1T3-27420-00-93

Unavailable

13

. FOOTREST

341-27451-00-00

Unavailable

14

. COVER, FOOTREST

341-27423-00-00

Unavailable

15

. COVER, FOOTREST

341-27413-00-00

Unavailable

16

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

17

PIN (214-27418-00)

90243-08006-00

Unavailable

18

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

19

DAMPER, FOOTREST

256-27414-00-00

Unavailable

20

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

21

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

22

NUT, CROWN(3BM)

90176-10073-00

Unavailable

23

RR FOOTREST ASSEMBLY 1

(447-27430-01-00)

Unavailable

24

RR FOOTREST ASSEMBLY 2

(447-27440-01-00)

Unavailable

25

FOOTREST, REAR 1

447-27431-00-00

Unavailable

26

FOOTREST, REAR 2

447-27441-00-00

Unavailable

27

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

28

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

29

WASHER 447274370000

90209-18070-00

Unavailable

30

PIN, COTTER

91490-16020-00

Unavailable

31

UNAVAILABLE IN PRICE BOOK

90201-13501-00

Unavailable

32

NUT, SELF-LOCKING(1KH)

90185-12134-00

Unavailable

33

PEDAL, BRAKE

533-27211-01-93

Unavailable

34

SHAFT, BRAKE PEDAL

(447-27212-01-00)

Unavailable

35

SPRING, TENSION(1FN)

90506-20380-00

Unavailable

36

NIPPLE, GREASE

93700-06M03-00

Unavailable

37

ROD, BRAKE

447-27231-02-00

Unavailable

38

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

39

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

40

PIN, COTTER

91490-20025-00

$1.99

41

SPRING, (180-27236-00)

90501-10245-00

Unavailable

42

UNAVAILABLE IN PRICE BOOK (156-27237-00)

90259-12008-00

Unavailable

43

NUT (25K)

90179-06411-00

Unavailable

44

BOLT, HEXAGON

97017-06025-00

Unavailable

45

WASHER, SPRING

92995-06100-00

Unavailable

46

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

47

SCREW 341272170000

90153-06008-00

Unavailable

48

WASHER, PLATE (707)

90201-13645-00

Unavailable
