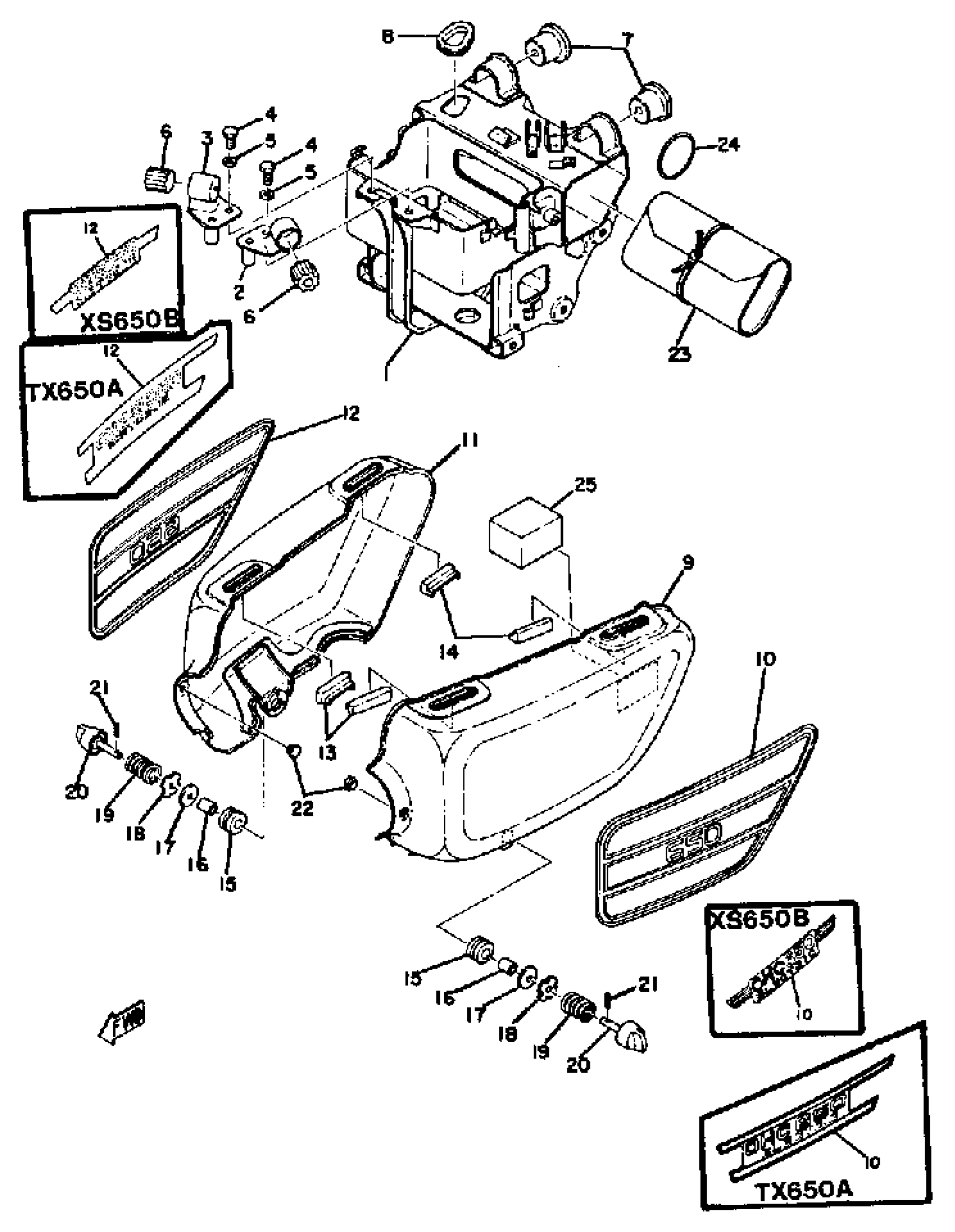

Yamaha TX650A (TX650) 1974 SIDE COVER TOOL TX650A - XS650B - C Diagram

#

Description

Price

1

BOX, BATT.

(447-21170-04-33)

Unavailable

2

BRACKET, BATT BOX

447-21149-00-00

Unavailable

3

BRACKET, BATT BOX

447-21344-00-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, SPRING

92995-06100-00

Unavailable

6

DAMPER, SIDE COVER

2J2-21729-00-00

$5.49

7

DAMPER

256-21747-00-00

Unavailable

8

BRACKET, BATTERY

(447-82128-00-00)

Unavailable

9

COVER, SIDE 1

(447-21711-01-G3)

Unavailable

9

COVER, SIDE 1

(447-21711-01-N9)

Unavailable

9

COVER, SIDE 1

447-21711-01-R7

Unavailable

10

EMBLEM 4

(447-21784-00-00)

Unavailable

10

EMBLEM 4

(447-21784-10-00)

Unavailable

10

EMBLEM 4

(584-21784-10-00)

Unavailable

11

COVER, SIDE 2

(447-21721-01-G3)

Unavailable

11

COVER, SIDE 2

(447-21721-01-N9)

Unavailable

11

COVER, SIDE 2

(447-21721-01-R7)

Unavailable

12

EMBLEM 4

(447-21784-10-00)

Unavailable

12

EMBLEM 6

(447-21786-00-00)

Unavailable

12

EMBLEM 6

(584-21786-10-00)

Unavailable

13

DAMPER

447-21717-00-00

Unavailable

14

DAMPER

447-21747-00-00

Unavailable

15

GROMMET 839774310000

90480-14023-00

Unavailable

16

COLLAR

90387-07020-00

Unavailable

17

WASHER, PLATE

90201-06095-00

Unavailable

18

WASHER, SPEC''L SHAP

90209-06044-00

Unavailable

19

SPRING, COMPRESSION

90501-18205-00

Unavailable

20

KNOB, SIDE COVER 1

447-21714-01-00

Unavailable

21

PIN, SPRING

91690-25016-00

Unavailable

21

PIN, SPRING

91690-25016-00

Unavailable

22

DAMPER, SIDE COVER

256-21717-00-00

Unavailable

23

TOOL KIT

3J3-W2810-00-00

Unavailable

23

TOOL KIT

3J3-W2810-00-00

Unavailable

24

O-RING

93210-40040-00

Unavailable

25

DAMPER

447-21746-00-00

Unavailable
