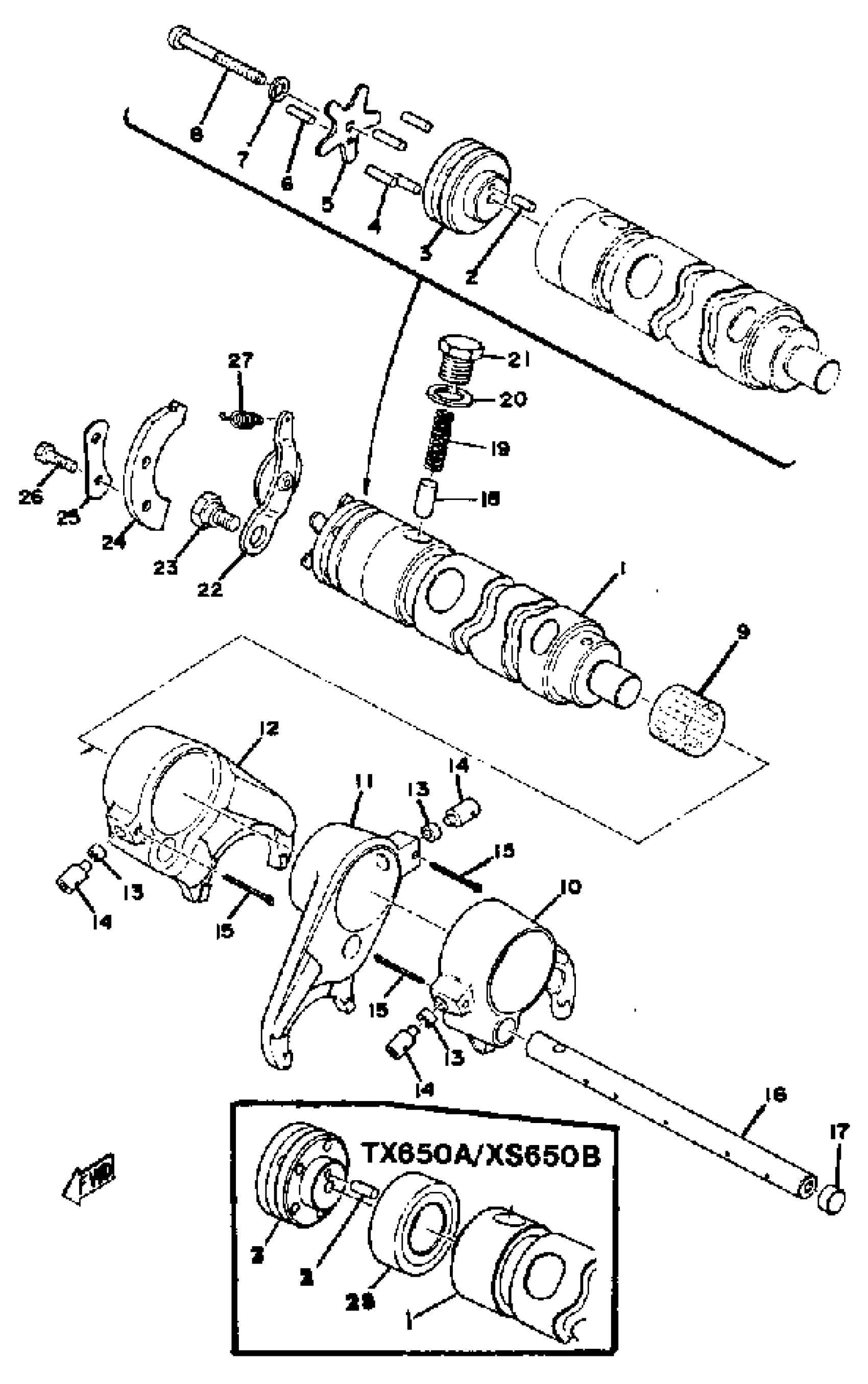

Yamaha TX650A (TX650) 1974 SHIFT CAM-FORK TX650A - XS650B - C Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

306-18540-00-00

Unavailable

2

PIN,DOWEL (603)

93604-10011-00

$8.49

3

. CAM, SHIFT 2

(306-18546-00-00)

Unavailable

4

PIN,DOWEL (137)

93604-14012-00

$1.81

5

PLATE, SIDE 1

(168-18561-00-00)

Unavailable

6

PIN, DOWEL

93603-14026-00

$8.49

7

WASHER, TOOTH

92990-05300-00

Unavailable

8

BEARING, CYLINDER.#20

93320-31501-00

Unavailable

9

BEARING, CYLINDER.#20

93320-31501-00

Unavailable

10

FORK, SHIFT 1

256-18511-00-00

Unavailable

11

FORK, SHIFT 2

256-18512-00-00

Unavailable

12

FORK, SHIFT 3

256-18513-00-00

Unavailable

13

PIN,SPEC'L SHAPE

90249-05035-00

Unavailable

14

PIN, SPEC''L SHAPE (256-18552-00) 003

90249-08001-00

Unavailable

15

PIN, COTTER(6L5)

91490-25030-00

$3.77

16

BAR, SHIF FRK GDE 1

256-18531-00-00

Unavailable

17

PLUG, STRAIGHT (256-15439-00)

90334-10007-00

Unavailable

18

STOPPER, CAM

137-18547-00-00

Unavailable

19

SPRING, COMPRESSION

90501-10068-00

Unavailable

20

GASKET

90430-16047-00

Unavailable

21

BOLT

90109-16392-00

Unavailable

22

STOPPER LEVER ASSEMBLY

341-18140-00-00

Unavailable

23

BOLT

90109-06181-00

Unavailable

24

PLATE, STOPPER 2

256-18562-00-00

Unavailable

25

PLATE, LOCK SCREW

256-18565-00-00

Unavailable

26

BOLT

90101-06091-00

Unavailable

27

SPRING, TENSION

90506-10022-00

Unavailable

28

. BEARING, CYLINDER#18

(93318-32003-00)

Unavailable
