Description

Price

1

DOUBLE SEAT ASSEMBLY (1T3-24730-90)

1T3-W2472-00-00

Unavailable

2

. COVER, DOUBLE SEAT

447-24731-00-00

Unavailable

3

HINGE, SEAT

389-24726-00-33

Unavailable

4

HINGE, SEAT

371-24726-01-00

$16.49

5

BRACKET, SEAT

371-24728-02-00

Unavailable

6

BOLT (661)

97013-06012-00

$5.60

7

WASHER, SPRING

92995-06100-00

Unavailable

8

PIN, CLEVIS

91701-05055-00

$7.49

9

CLIP (156-83525-00)

90468-10050-00

$3.05

10

SEAT LOCK ASSEMBLY

584-24705-00-00

Unavailable

11

SCREW, FLAT

98707-06012-00

$8.49

12

PAD, SEAT

1L9-24741-00-00

$9.99

13

STOPPER MAIN STAND

278-27114-00-00

$8.99

14

COVER, TAIL

389-24756-00-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

BOLT(3JP)

97017-06010-00

Unavailable

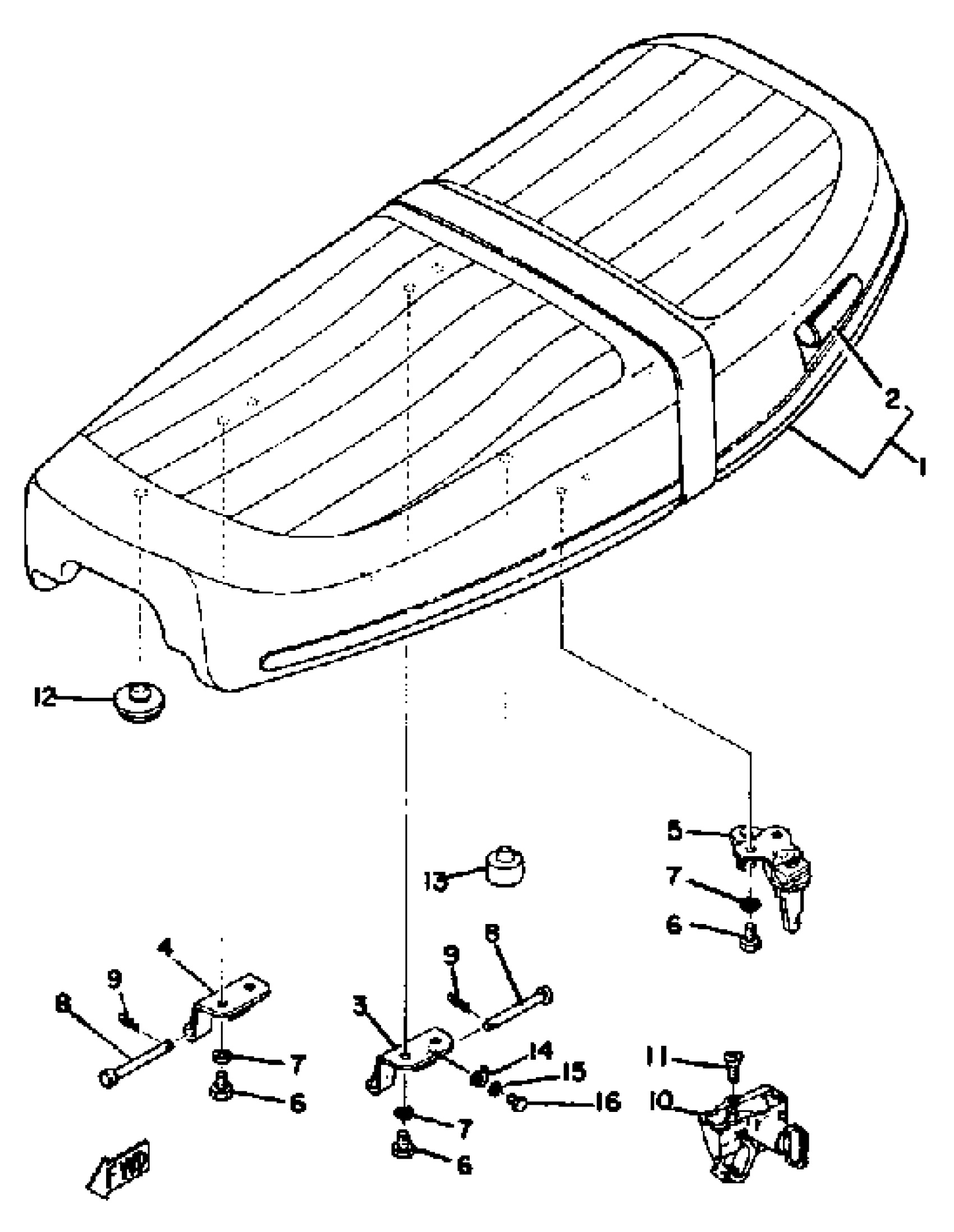

Yamaha TX650A (TX650) 1974 SEAT XS650C Diagram

DOUBLE SEAT ASSEMBLY (1T3-24730-90)

. COVER, DOUBLE SEAT

HINGE, SEAT

HINGE, SEAT

BRACKET, SEAT

BOLT (661)

WASHER, SPRING

PIN, CLEVIS

CLIP (156-83525-00)

SEAT LOCK ASSEMBLY

SCREW, FLAT

PAD, SEAT

STOPPER MAIN STAND

COVER, TAIL

WASHER, SPRING

BOLT(3JP)
