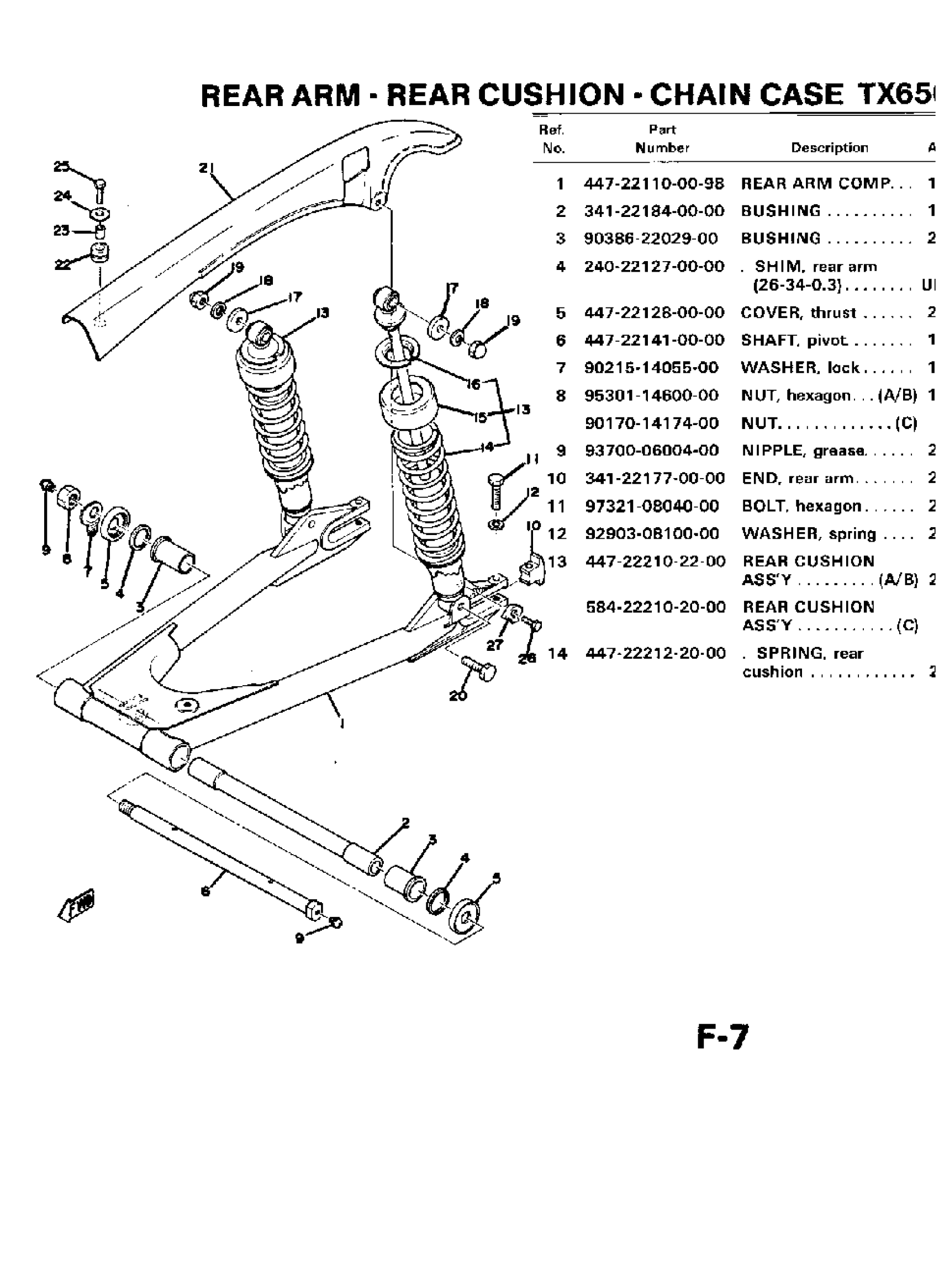

Yamaha TX650A (TX650) 1974 REAR ARM CUSHION CHAIN CASE TX650A - XS650B Diagram

#

Description
Price

1

REAR ARM

(447-22110-00-98)

Unavailable

2

BUSH

341-22184-00-00

Unavailable

3

BUSH (5A9)

90386-22102-00

$40.99

4

SHIM,REAR ARM

240-22127-00-00

$6.99

5

COVER, THRUST

447-22128-00-00

$24.99

6

SHAFT, PIVOT

447-22141-00-00

Unavailable

7

WASHER, LOCK

90215-14055-00

Unavailable

8

NUT

90170-14800-00

$4.14

8

NUT(6TC)

95337-14600-00

$11.49

9

NIPPLE, GREASE

93700-06M03-00

Unavailable

10

BAR, COMPRESSION

341-22177-00-00

Unavailable

11

BOLT

97014-08040-00

$7.49

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

SHK/ABS ASSEMBLY, REAR (A/B)

447-22210-22-00

Unavailable

13

SHK/ABS ASSEMBLY, REAR

(584-22210-20-00)

Unavailable

14

SPRING

(447-22212-20-00)

Unavailable

15

COVER

(341-22211-20-00)

Unavailable

15

COVER

(447-22211-21-00)

Unavailable

16

. SEAT, SPRING UPPER

341-22213-20-00

Unavailable

17

WASHER PLATE 341222430000

90201-10142-00

Unavailable

18

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

19

NUT, CROWN(3BM)

90176-10073-00

Unavailable

20

BOLT ROUND 214222410000

90106-10025-00

Unavailable

21

CASE, CHAIN

(2M0-22311-00-33)

Unavailable

21

CASE, CHAIN

2M0-22311-00-93

Unavailable

22

GROMMET 839774310000

90480-14023-00

Unavailable

23

COLLAR

90387-07020-00

Unavailable

24

WASHER, PLATE 1012832300

90201-06066-00

Unavailable

25

BOLT, HEXAGON

97017-06025-00

Unavailable

26

BOLT(3DM)

97024-06020-00

Unavailable

27

WASHER, LOCK

90215-07164-00

Unavailable
