1974 Yamaha TX650 (TX650A) OIL Pump Diagram

← All diagrams

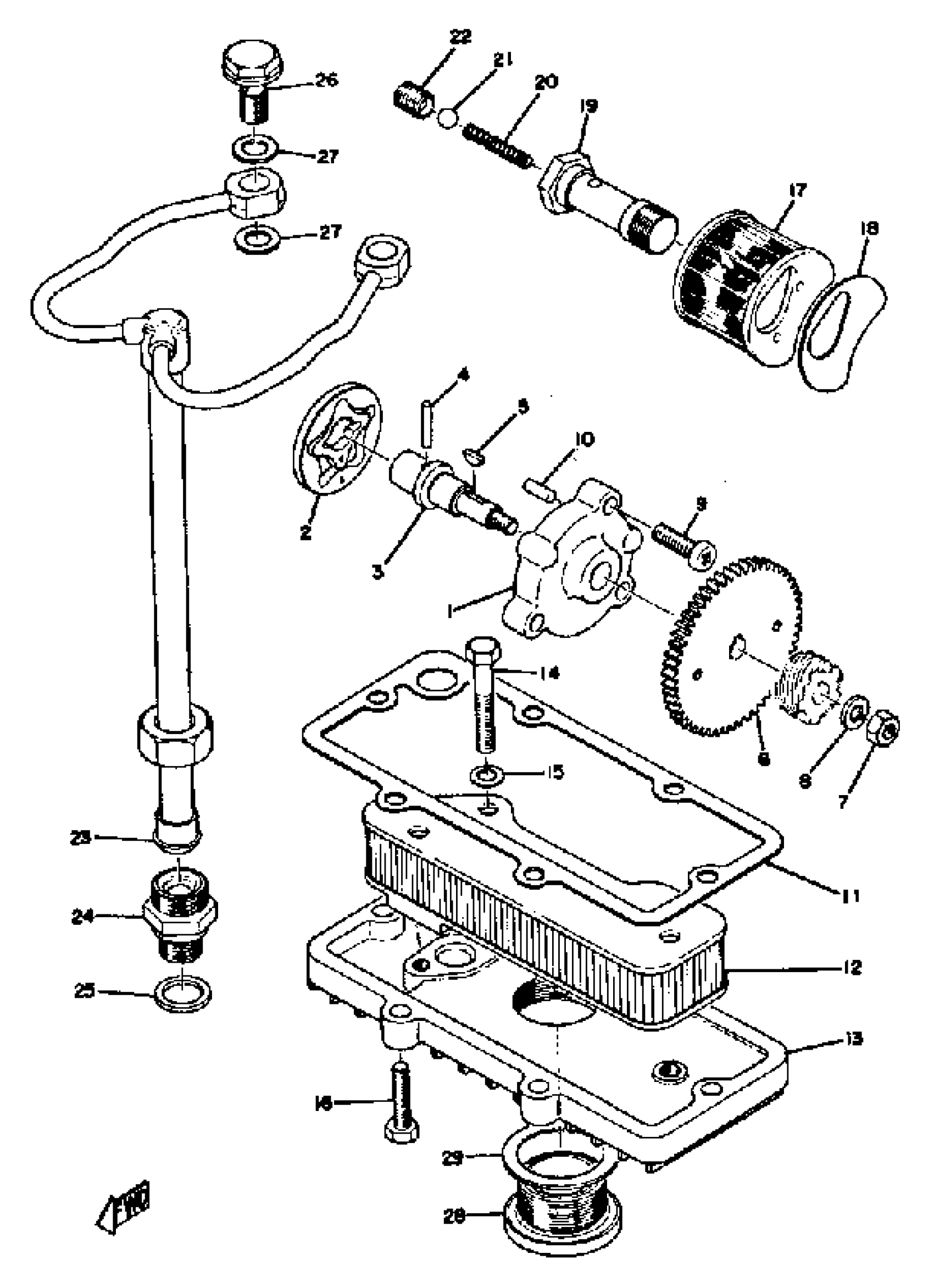

Find the part on the OIL Pump diagram for your 1974 Yamaha TX650 (TX650A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TX650 (TX650A) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, PUMP

256-00001-01-00

1
Out of stock

1

. COVER, PUMP

256-13316-02-00

1
Out of stock

2

. ROTOR ASSEMBLY 1

256-13310-02-00

1
Out of stock

3

. SHAFT, PUMP

256-13314-02-00

1
Out of stock

4

PIN,DOWEL

93603-17070-00

1

$3.03

In stock

5

KEY, WOODRUFF

90280-03023-00

1
Out of stock

6

GEAR, PUMP DRIVEN

256-13325-00-00

1
Out of stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

10

PIN,DOWEL (168)

93604-12037-00

1
Out of stock

11

GASKET, STRAINER COVER

256-13414-11-00

1
Out of stock

12

STRAINER, OIL

256-13411-01-00

1
Out of stock

13

COVER, STRAINER

256-13417-00-00

1
Out of stock

14

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

17

ELEMENT, OIL CLNR

256-13441-00-00

1
Out of stock

18

GASKET, ELEMENT

256-13445-10-00

—

$8.63

In stock

19

SCREW

256-13495-00-00

1
Out of stock

20

SPRING, COMPRESSION

90501-07031-00

1
Out of stock

21

BALL

93501-04011-00

—
Out of stock

22

SCREW, SPEC''L SHAPE

90149-10019-00

1
Out of stock

23

PIPE, DELIVERY 1

256-13161-01-00

1
Out of stock

24

BOLT, BANJO

256-13165-02-00

1
Out of stock

25

GASKET 256131670000

90430-14043-00

—

$6.46

In stock

26

BOLT, UNION (16G)

90401-10084-00

—
Out of stock

27

GASKET (5R6)

90430-10171-00

—

$3.17

In stock

28

PLUG, DRAIN

256-15351-00-00

1
Out of stock

29

GASKET, DRAIN PLUG

256-15353-00-00

—

$13.06

In stock
