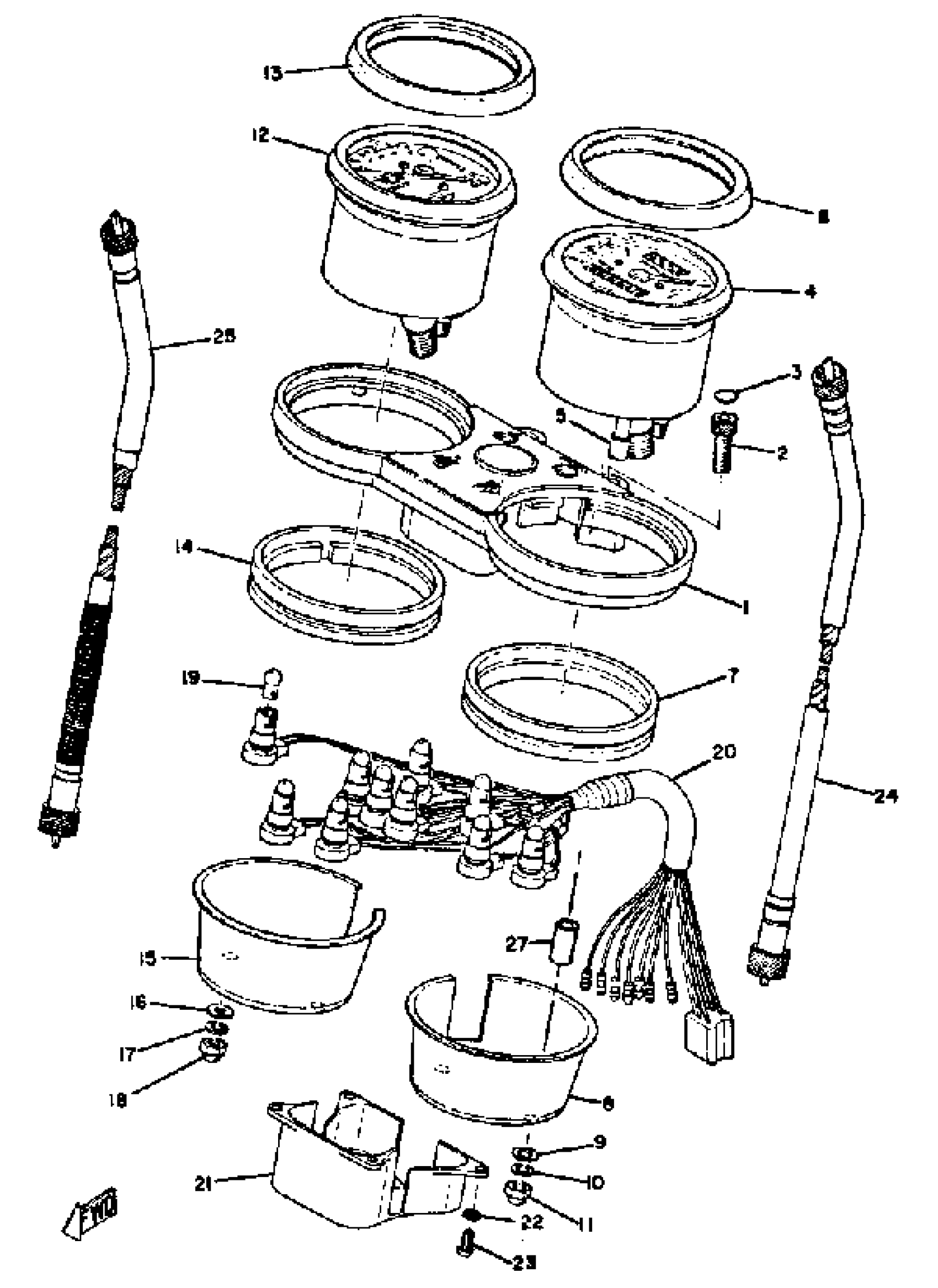

Yamaha TX650A (TX650) 1974 METER TX650A - XS650B Diagram

#

Description
Price

1

BRACKET, METER

447-83519-40-98

Unavailable

2

BOLT, SOCKET

91317-08025-00

$8.49

3

CAP, BOLT (371,447)

341-23469-00-00

$9.99

4

SPEEDOMETER ASSEMBLY

371-83570-43-00

Unavailable

5

. KNOB, TRIP METER

371-83578-70-00

Unavailable

6

DAMPER

(371-83513-70-00)

Unavailable

7

DAMPER

371-83523-70-00

Unavailable

8

COVER, SPEEDOMETER

(371-83507-70-00)

Unavailable

8

COVER, SPEEDOMETER

(371-83507-72-00)

Unavailable

9

. WASHER, PLAIN

92990-05200-00

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

NUT (CROWN)

95303-05800-00

Unavailable

12

TACHOMETER ASSEMBLY

(447-83540-02-00)

Unavailable

13

DAMPER

(371-83513-70-00)

Unavailable

14

DAMPER

371-83523-70-00

Unavailable

15

COVER, TACHOMETER

371-83508-70-00

Unavailable

15

COVER, TACHOMETER

(371-83508-71-00)

Unavailable

16

. WASHER, PLAIN

92990-05200-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

18

NUT (CROWN)

95303-05800-00

Unavailable

19

BULB (12V-3.4W)

123-83516-21-00

Unavailable

20

SOCKET CORD ASSEMBLY

(447-83509-40-00)

Unavailable

21

COVER, SOCKET

(371-83547-70-00)

Unavailable

22

WASHER(6TA)

92907-04100-00

Unavailable

23

SCREW, PAN HEAD(6G8)

98507-04010-00

Unavailable

24

SPEEDOMETER CABLE ASSY

16M-83550-01-00

Unavailable

25

TACHOMETER CABLE

447-83560-01-00

Unavailable

26

WIRE, EARTH LEAD

(447-82519-00-00)

Unavailable

27

COLLAR

(360-83522-00-00)

Unavailable
