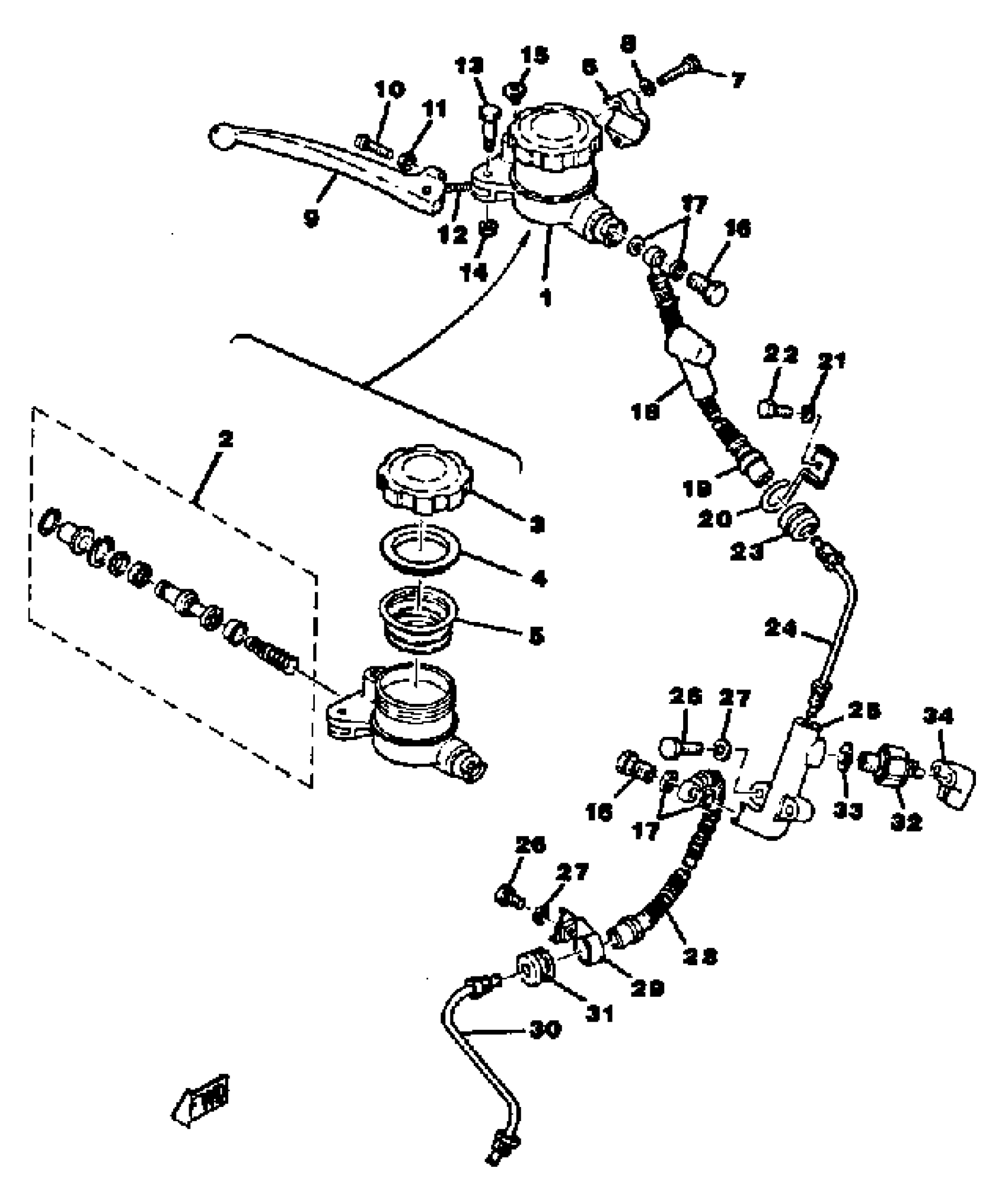

Yamaha TX650A (TX650) 1974 FRONT MASTER CYLINDER - BRAKE HOSE XS650C Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

(360-25850-31-00)

Unavailable

2

CYLINDER KIT, MASTER

1A0-W0041-00-00

Unavailable

3

CAP, RESERVOIR

(341-25852-30-00)

Unavailable

3

. CAP, RESERVOIR

360-25852-30-00

Unavailable

4

BUSH,DIAPHRAGM

2GU-25855-00-00

$30.99

4

BUSH, DIAPHRAGM (341-25855-00)

341-25855-30-00

Unavailable

5

. DIAPHRAGM RESERVOR

341-25854-00-00

Unavailable

5

DIAPHRAGM, RESERVER

360-25854-01-00

$23.99

6

BRACKET, MASTER

1J3-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92995-06100-00

Unavailable

9

LEVER R

(341-83922-00-00)

Unavailable

10

SCREW

90146-06005-00

Unavailable

11

NUT HEXAGON 306839270000

90170-06010-00

$8.49

12

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

13

BOLT (4L0)

90109-06577-00

Unavailable

14

NUT(650)

95380-06700-00

Unavailable

15

PLUG (341-26329-00)

90338-09012-00

Unavailable

16

BOLT, UNION(3GM)

90401-10159-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

19

HOSE, BRAKE 1 (341-25872-01)

341-25872-06-00

Unavailable

20

HOLDER, BRAKE HOSE

(351-25887-01-00)

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

24

PIPE, BRAKE 3

(371-25883-00-00)

Unavailable

25

JOINT

(341-25885-03-00)

Unavailable

26

BOLT, HEXAGON

97017-06025-00

$4.24

27

WASHER, SPRING

92995-06100-00

Unavailable

28

HOSE, BRAKE 2

341-25873-06-00

Unavailable

29

HOLDER, BRKE HOSE 2

(533-25876-00-00)

Unavailable

30

PIPE, BRAKE

(533-25871-00-00)

Unavailable

31

PROTC, BRAKE HOSE

306-25881-00-00

Unavailable

32

STOP SWITCH ASSEMBLY

341-83980-30-00

Unavailable

33

WASHER PLATE 341839090000

90201-10128-00

Unavailable

34

COVER, STOP SWITCH

(371-82549-00-00)

Unavailable
