FRONT FORK TX650A - XS650B

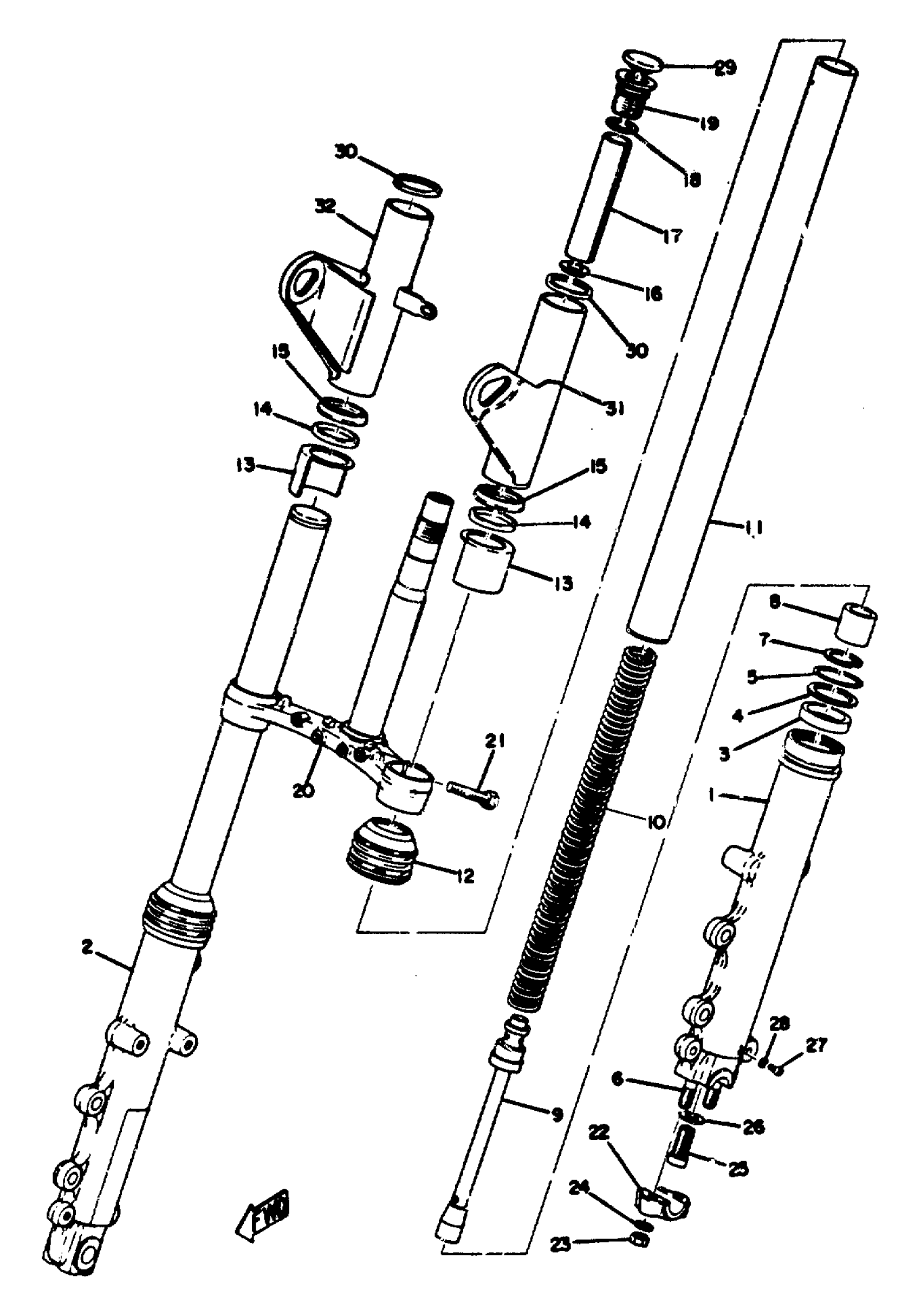

Yamaha TX650A (TX650) 1974 FRONT FORK TX650A - XS650B Diagram
#
1
TUBE, OUTER 1
(366-23126-60-00)
Unavailable
1
FRONT FORK ASSEMBLY
(447-23101-53-00)
Unavailable
2
TUBE, OUTER 2
(366-23136-60-00)
Unavailable
4
.. WASHER, OIL SEAL
214-23146-00-00
Unavailable
5
.. CLIP, OIL SEAL
214-23156-00-00
Unavailable
5
CLIP, OIL SEAL
(371-23156-60-00)
Unavailable
7
. CIRCLIP, INNER
93450-30033-00
Unavailable
8
PISTON, FRONT FORK
(278-23171-50-00)
Unavailable
8
PISTON, FRONT FORK
(371-23171-60-00)
Unavailable
9
. CYLINDER, FRTFRK
(447-23170-52-00)
Unavailable
10
. SPRING, FRONT FORK
447-23141-52-00
Unavailable
11
TUBE, INNER 1
(371-23124-62-00)
Unavailable
11
TUBE, INNER 1
(533-23124-31-00)
Unavailable
12
SEAL,DUST
278-23144-50-00
Unavailable
13
. COVER, OUTER 1
(447-23122-52-00)
Unavailable
14
. GASKET (LAMP STAY)
291-23163-61-00
Unavailable
15
. GUIDE, COVER LOWER
447-23116-52-00
Unavailable
16
. SEAT, SPRING UPPER
256-23142-60-00
Unavailable
16
SEAT, SPRING UPPER
(304-23142-50-00)
Unavailable
17
SPACER
(306-23118-60-00)
Unavailable
18
. GASKET
214-23114-00-00
Unavailable
19
. BOLT, CAP
341-23111-51-00
Unavailable
20
UNDER BRACKET
(447-23340-53-33)
Unavailable
21
BOLT, AXLE HOLDER
18G-23128-00-00
Unavailable
22
HOLDER,AXLE
341-23167-50-00
Unavailable
23
NUT, OUTER TUBE
(447-23127-00-00)
Unavailable
24
.. WASHER, PLATE
92990-08600-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
26
GASKET
509-23158-L0-00
Unavailable
27
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
28
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
29
. CAP, FRONT FORK
371-23168-60-00
Unavailable
30
. GUIDE, COVER UPPER
168-23115-00-00
Unavailable
31
COVER, UPPER 1
(447-23121-51-N9)
Unavailable
31
COVER, UPPER 1
(447-23121-51-R7)
Unavailable
32
COVER, UPPER 2
(447-23131-51-N9)
Unavailable
32
COVER, UPPER 2
(447-23131-51-R7)
Unavailable
