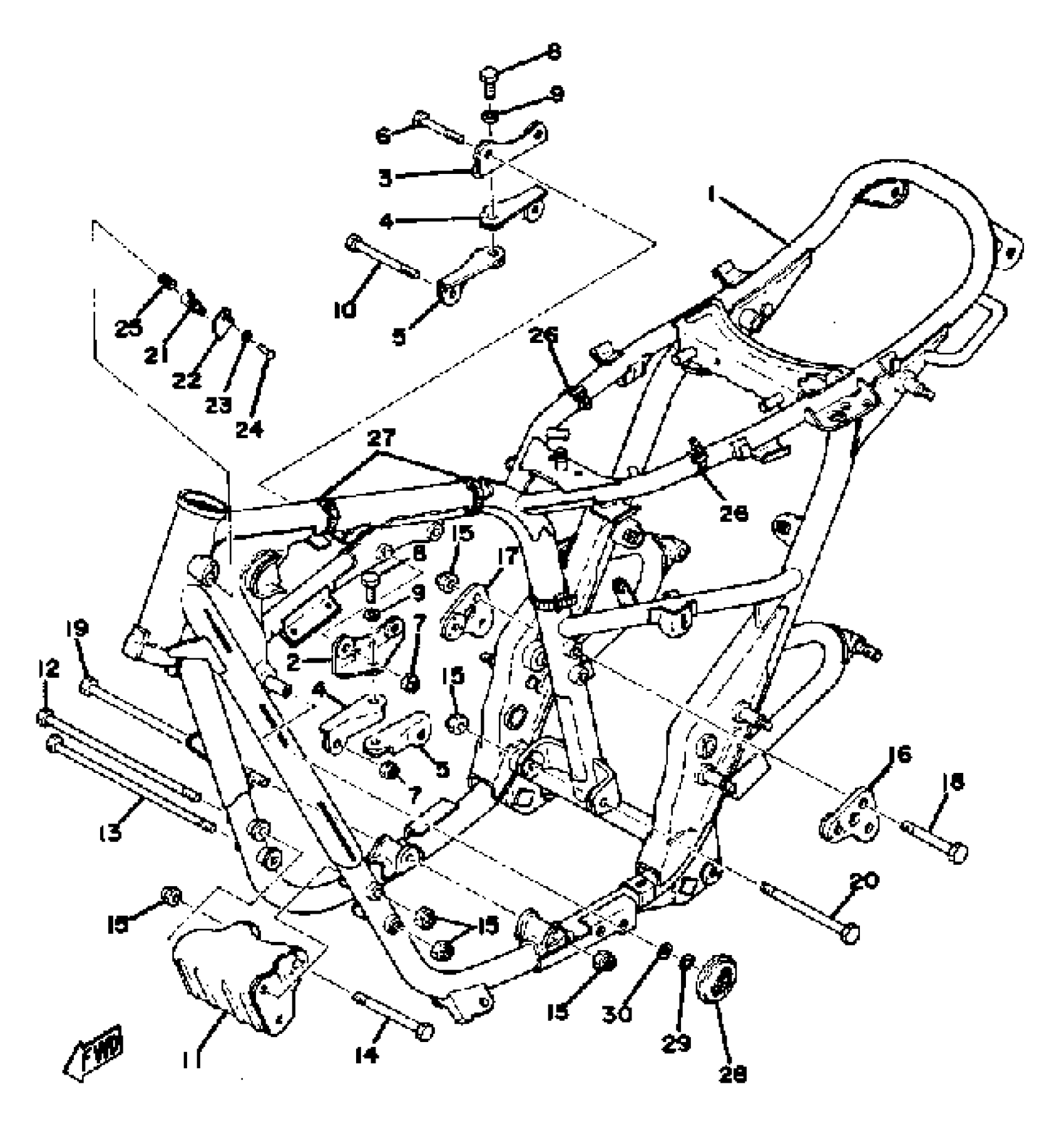

Yamaha TX650A (TX650) 1974 FRAME TX650A - XS650B - C Diagram

#

Description
Price

1

FRAME

(447-21110-04-33)

Unavailable

1

FRAME

(584-21110-00-33)

Unavailable

2

STAY, ENGINE 1

447-21314-00-00

Unavailable

3

STAY, ENGINE 2

447-21315-00-00

Unavailable

4

STAY, ENGINE 4

256-21317-01-00

Unavailable

5

STAY, ENGINE 3

256-21316-01-00

Unavailable

6

BOLT, FLANGE

95817-08055-00

$4.21

6

BOLT, HEXAGON

97013-08055-00

$2.55

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

8

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

8

BOLT(6TD)

97017-10025-00

$8.49

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

BOLT, FLANGE

95817-08090-00

$4.77

10

BOLT (97321-08090)

97023-08090-00

Unavailable

11

STAY, ENGINE 5

447-21318-00-98

Unavailable

12

BOLT, WASHER BASED (3Y1)

90105-10139-00

Unavailable

13

BOLT, FLANGE

90105-10N53-00

Unavailable

14

BOLT, WASHER BASED(1RU)

90105-10747-00

Unavailable

15

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

16

STAY, ENGINE 6

447-21319-00-00

Unavailable

17

STAY, ENGINE 7

447-21387-00-00

Unavailable

18

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

19

BOLT, DOME HEAD

90106-10029-00

Unavailable

20

BOLT(30W)

90109-101A0-00

Unavailable

21

STEERING LOCK ASSY

2A6-23408-00-00

Unavailable

21

STEERING LOCK ASSY

341-23408-01-00

Unavailable

22

CAP, HANDLE LOCK

(134-23484-10-00)

Unavailable

22

CAP, HANDLE LOCK

3DM-23484-00-00

Unavailable

23

WASHER, WAVE

90206-04003-00

Unavailable

24

RIVET 214234830000

90269-04003-00

Unavailable

25

SPRING, CONICAL

90502-08005-00

Unavailable

25

SPRING, CONICAL (1E6)

90502-09024-00

Unavailable

26

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

26

BAND, SWITCH CORD

437-83936-01-00

Unavailable

27

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

27

BAND, SWITCH CORD

437-83936-11-00

Unavailable

28

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

29

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

30

. WASHER, PLAIN

92990-05200-00

Unavailable
