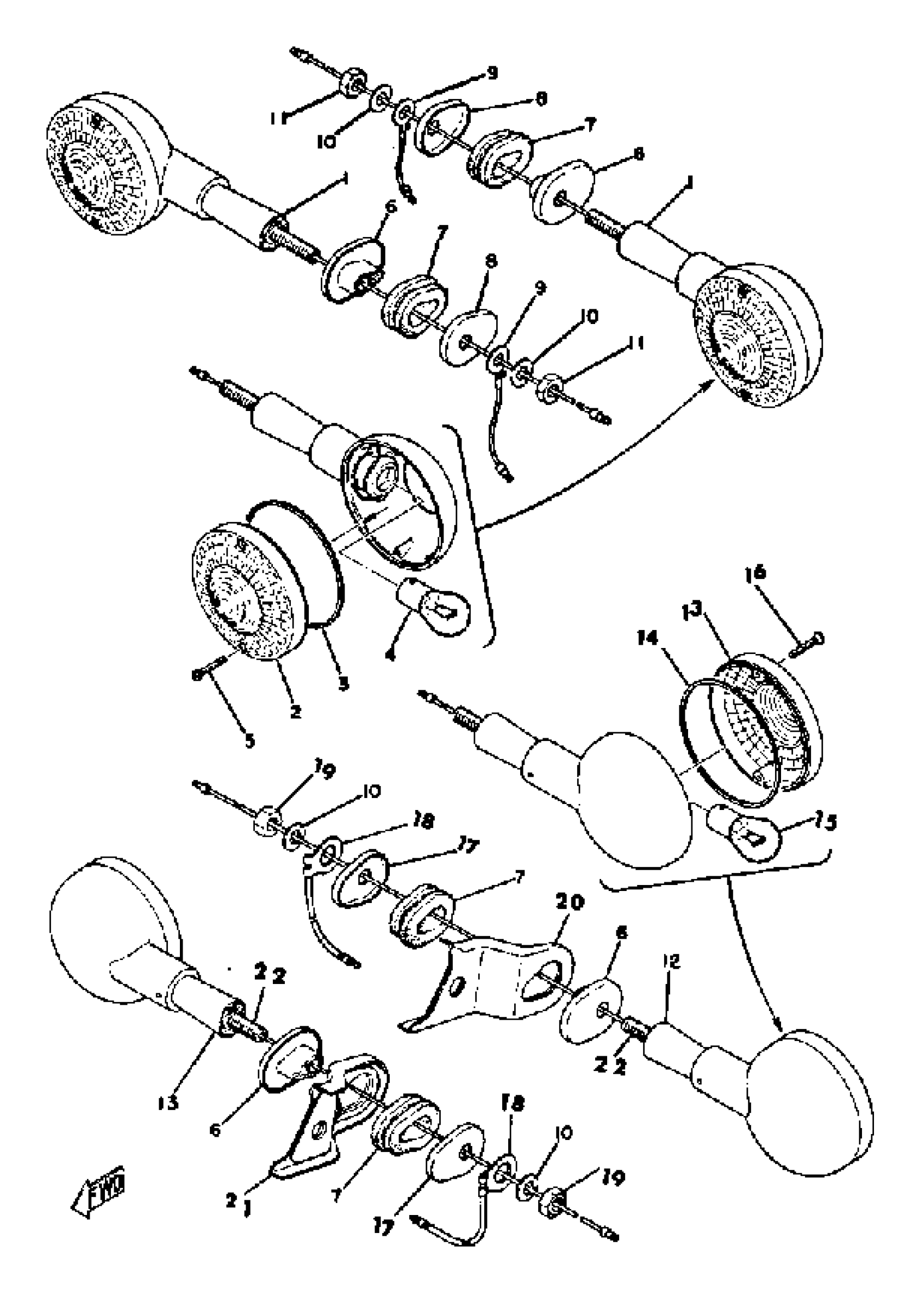

Yamaha TX650A (TX650) 1974 FLASHER LIGHT TX650A - XS650B - C Diagram

#

Description
Price

1

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

Unavailable

2

LENS, FLASHER

341-83312-70-00

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

6

COLLAR, FLASHER 1

366-83316-00-00

Unavailable

7

DAMPER, FLASHER 1

256-83321-00-00

Unavailable

8

WASHER, SPEC''L SHAP

90209-08028-00

Unavailable

9

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

. NUT

95380-08700-00

Unavailable

12

R FLSHR LITE ASSEMBLY

366-83340-71-93

Unavailable

13

. LENS, FLASHER

341-83332-70-00

Unavailable

14

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

15

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

16

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

17

WASHER, SPEC''L SHAP

90209-08028-00

Unavailable

17

WASHER

90209-08008-00

Unavailable

18

CORD

447-83336-01-00

Unavailable

19

NUT(6L2)

95333-08600-00

Unavailable

20

STAY, FLASHER

447-83368-00-00

Unavailable

21

STAY, FLASHER

447-83369-00-00

Unavailable

22

. BOLT, STUD

360-83367-09-00

Unavailable
