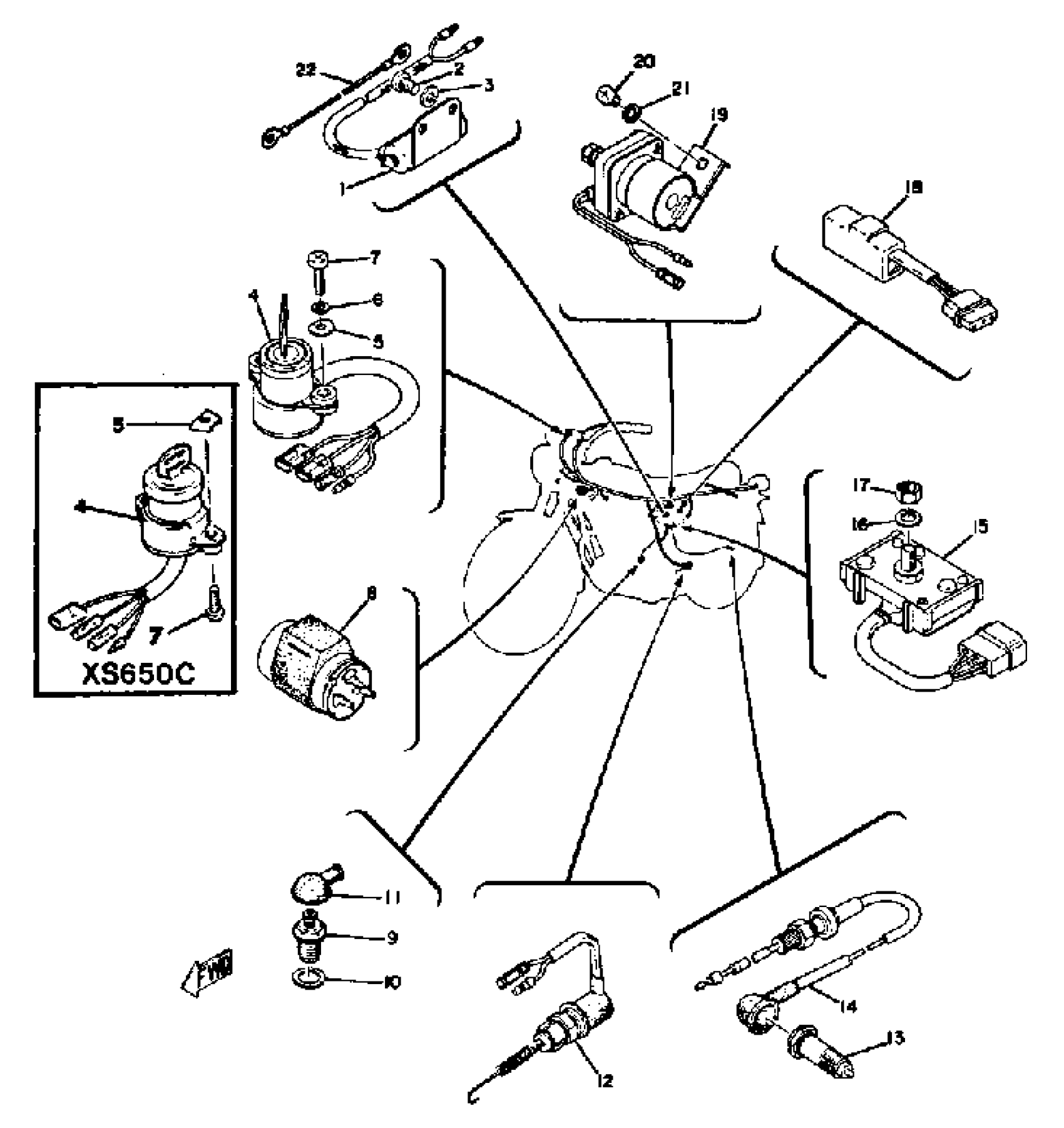

Yamaha TX650A (TX650) 1974 ELECTRICAL 2 TX650A - XS650B - C Diagram

#

Description

Price

1

CONDENSER 1

256-81625-10-00

Unavailable

2

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

3

WASHER, SPRING

92995-06100-00

Unavailable

4

UNAVAILABLE IN PRICE BOOK (360-82508-43) (A/B)

360-82509-09-00

Unavailable

4

MAIN SWITCH ASSEMBLY

584-82508-40-00

Unavailable

5

WASHER, SPECIAL

533-82517-00-00

Unavailable

5

WASHER, SPEC''L SHAP

(90209-05116-00)

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

7

SCREW, PAN HEAD

98580-05020-00

Unavailable

8

FLASHER RELAY ASSEMBLY

371-83350-71-00

Unavailable

9

NEUTRAL SWITCH ASSY

136-82540-03-00

$31.99

10

WASHER, PLATE

90201-12790-00

$9.49

11

CAP

168-82542-10-00

Unavailable

12

STOP SWITCH ASSY

447-82530-09-00

Unavailable

12

STOP SWITCH ASSEMBLY

533-82530-02-00

Unavailable

13

SWITCH, ALARM

341-82503-01-00

Unavailable

14

WIRE, LEAD

447-82531-00-00

Unavailable

15

RECTIFIER ASSEMBLY

447-81970-10-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

. NUT

95380-08700-00

Unavailable

18

CHECKER, LIGHT

371-84708-02-00

Unavailable

19

STARTER SWITCH ASSEMBLY

447-81940-10-00

Unavailable

20

SCREW, PAN

98507-06014-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WIRE, LEAD

256-81615-00-00

Unavailable
