DOUBLE DISC BRAKE XS650C

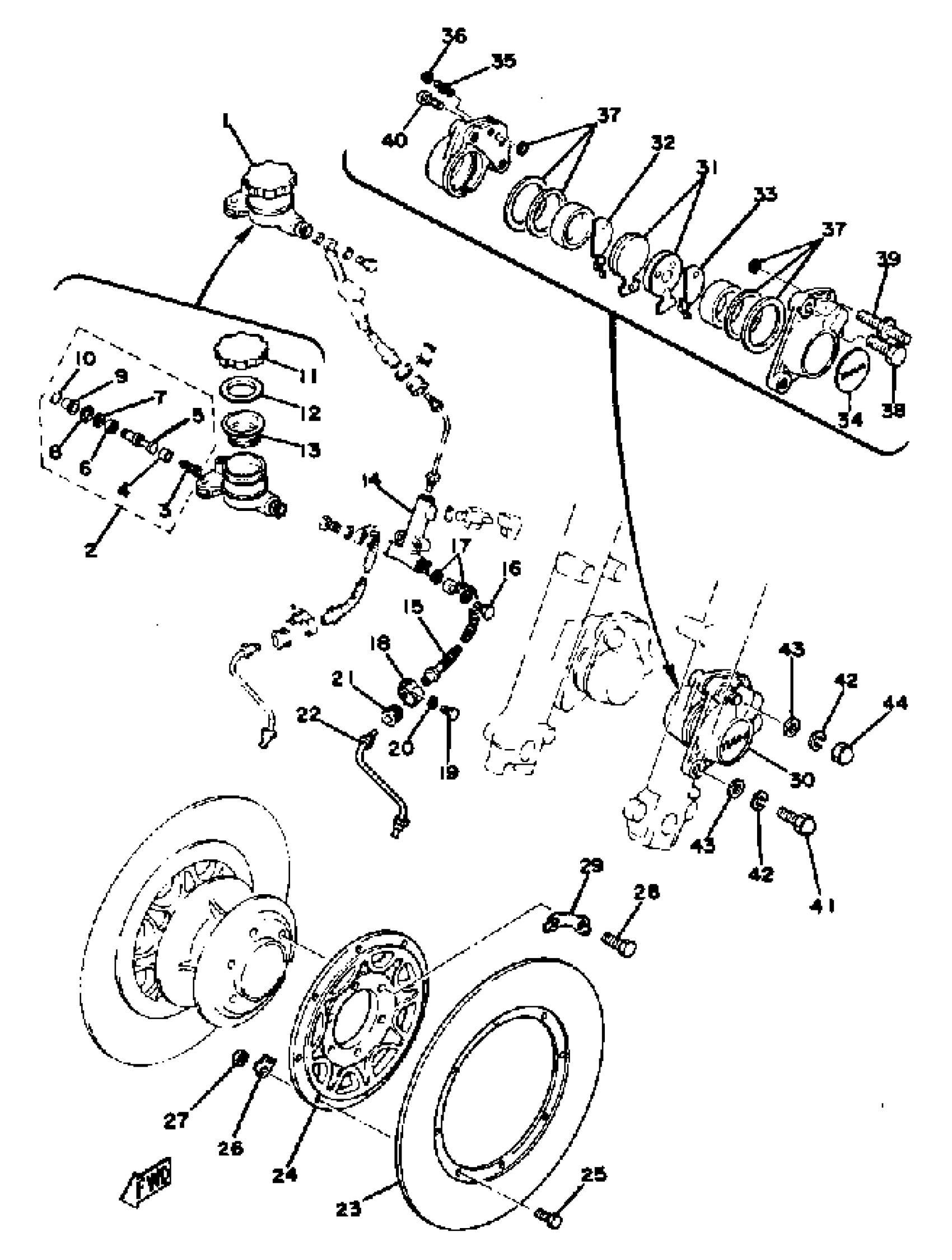

Yamaha TX650A (TX650) 1974 DOUBLE DISC BRAKE XS650C Diagram
#
1
MSTR CYLINDER ASSEMBLY
(341-25850-10-00)
Unavailable
2
. CYLINDER KIT MASTER (#3~10)
341-20000-10-00
Unavailable
11
CAP, RESERVOIR
(341-25852-30-00)
Unavailable
12
BUSH, DIAPHRAGM (341-25855-00)
341-25855-30-00
Unavailable
13
. DIAPHRAGM RESERVOR
341-25854-00-00
Unavailable
14
JOINT
(341-25885-10-00)
Unavailable
15
HOSE, BRAKE 2
341-25873-06-00
Unavailable
17
WASHER, PLATE(481)
90201-10118-00
Unavailable
18
HOLDER, BRKE HOSE 1
(533-25875-00-00)
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
PROTC, BRAKE HOSE
306-25881-00-00
Unavailable
22
PIPE, BRAKE
(533-25871-00-00)
Unavailable
23
DISC, BRAKE
(306-25831-00-00)
Unavailable
24
BRACKET, DISC
(341-25832-01-00)
Unavailable
25
BOLT 306258330000
90109-06018-00
Unavailable
26
WASHER LOCK 306258340000
90215-06106-00
Unavailable
27
NUT, HEXAGON
95380-06600-00
Unavailable
28
BOLT (341-25411-00)
90109-08367-00
Unavailable
29
WASHER, LOCK (447)
341-25412-00-00
Unavailable
30
CALIPER ASSEMBLY
(533-25810-02-00)
Unavailable
31
. BRAKE PAD KIT, FRNT
1A1-W0045-00-00
Unavailable
32
. SHIM, CALIPER
409-25827-50-00
Unavailable
33
. SHIM, CALIPER (306-25828-02)
409-25828-50-00
Unavailable
34
. EMBLEM, CALIPER
306-25829-00-00
Unavailable
35
. SCREW, BLEED
306-25824-00-00
Unavailable
36
CAP
306-25825-01-00
Unavailable
37
CALIPER SEAL KIT
856-W0047-00-00
Unavailable
39
. UNAVAILABLE IN PRICE BOOK
306-25833-01-00
Unavailable
40
. BOLT 3
306-25826-01-00
Unavailable
41
BOLT
(90109-10041-00)
Unavailable
42
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
43
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
44
NUT, CROWN(3BM)
90176-10073-00
Unavailable
