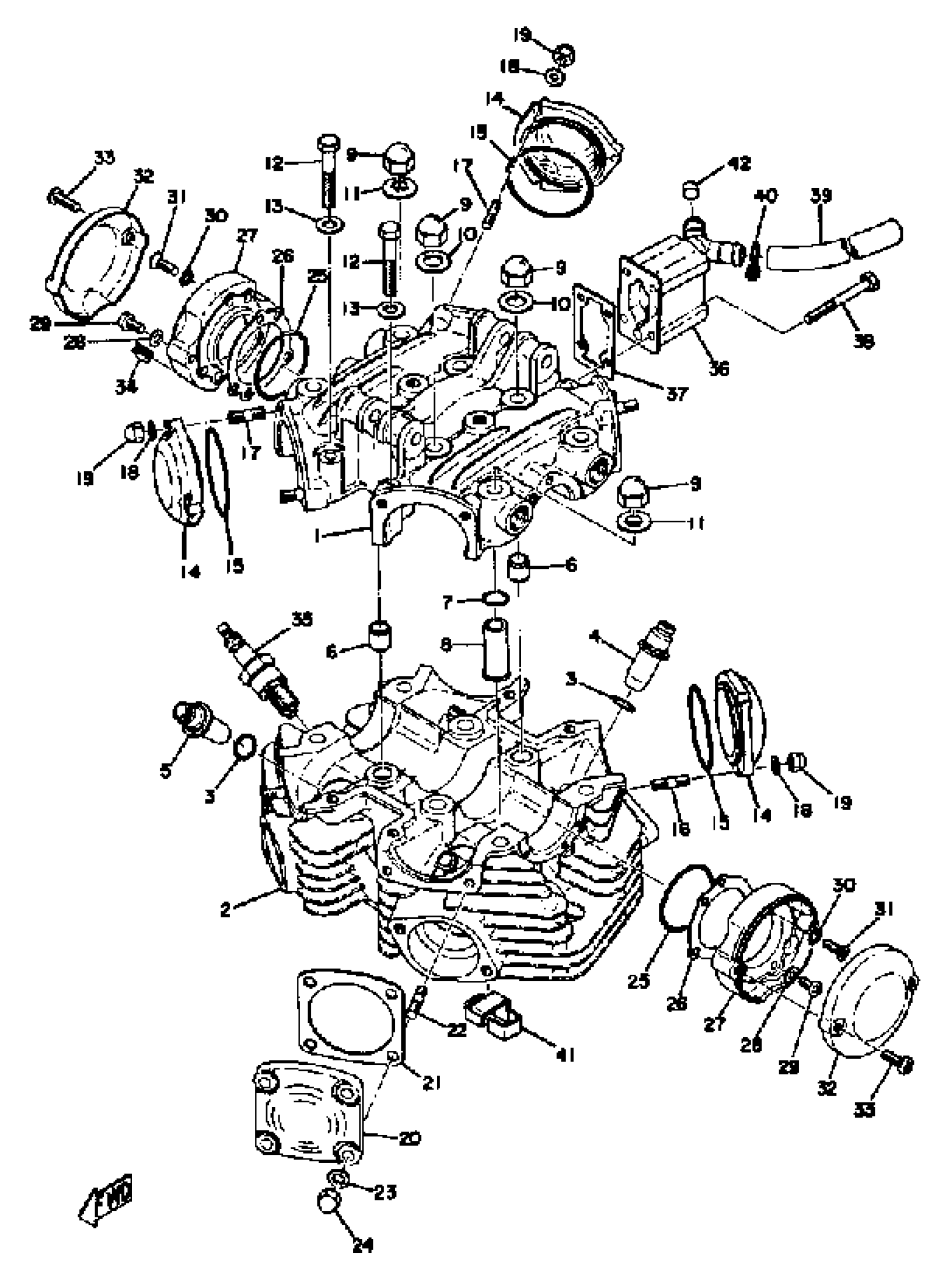

Yamaha TX650A (TX650) 1974 CYLINDER HEAD COVER TX650A - XS650B Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(5V4-11101-00-00)

Unavailable

3

O-RING (256)

93210-15151-00

Unavailable

4

GDE, INTK VLV 1 O/S

(256-11133-21-00)

Unavailable

4

.. GDE, INTK VLV 1 O/S

341-11133-11-00

Unavailable

5

GDE, EXST VLV 1 O/S

(256-11134-21-00)

Unavailable

5

. GDE, EXST VLV 1 O/S

341-11134-11-00

Unavailable

6

PIN, DOWEL

99530-14016-00

$3.80

7

O-RING (256)

93210-12152-00

$7.49

8

SLEEVE, CYLINDER HD COVR

256-11199-00-00

Unavailable

9

NUT, CROWN(2GG)

90176-10075-00

$8.49

10

WASHER PLATE 256111740000

90201-10131-00

$9.49

11

WASHER SEAL 256111730200

90210-10004-00

$4.77

12

BOLT (663)

97013-08060-00

$4.41

13

WASHER, PLAIN

92990-08200-00

Unavailable

14

COVER, CYLINDER.HEAD 2

447-11186-00-00

Unavailable

15

GASKET, CLINDER HEAD SIDE 1

256-11196-09-00

Unavailable

16

BOLT, STUD

90116-06017-00

Unavailable

17

BOLT STUD 306111790000

90116-06016-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

NUT (J17)

95380-06800-00

Unavailable

20

GASKT KIT TE XS650

(3G1-W0001-90-00)

Unavailable

20

. CVR, CYLINDER HD SIDE 1

447-11185-00-00

Unavailable

20

O-RING (4M4)

93210-62451-00

Unavailable

20

COVER, CYLINDER HEAD 3

(99999-00856-00)

Unavailable

21

GASKET

306-11198-10-00

Unavailable

22

BOLT, STUD

90116-08150-00

Unavailable

23

WASHER, PLAIN

92990-08200-00

Unavailable

24

NUT, CROWN

95303-08800-00

Unavailable

25

O-RING (256)

93210-45150-00

Unavailable

26

GASKET, BREAKER COVER

256-11146-11-00

Unavailable

27

COVER, BREAKER 1

256-11157-03-00

Unavailable

28

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

29

SCREW, PAN

98507-06014-00

Unavailable

30

WASHER

92990-06500-00

Unavailable

31

SCREW, FLAT

98707-06014-00

Unavailable

32

COVER, BREAKER 2

256-11158-01-00

Unavailable

33

GASKT KIT TE XS650

(3G1-W0001-90-00)

Unavailable

33

SCREW, BIND (J17)

98980-06020-00

Unavailable

34

PLUG, SPECL SHAPE

90338-12044-00

Unavailable

35

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

36

BREATHER COVER ASSEMBLY

584-11108-00-00

Unavailable

37

GASKET,BRTHR COVER

256-11169-11-00

Unavailable

38

BOLT,SOCKET

91317-06060-00

Unavailable

39

PIPE, BREATHER 1 (B)

447-11166-00-00

Unavailable

39

PIPE, BREATHER 1 (B)

447-11166-00-00

Unavailable

40

CLIP (371)

90467-14015-00

Unavailable

40

CLIP (371)

90467-14015-00

Unavailable

41

PLATE, BREATHER 3

(447-11135-00-00)

Unavailable

42

GASKT KIT TE XS650

(3G1-W0001-90-00)

Unavailable

42

PLUG, SPECL SHAPE

90338-10040-00

Unavailable
