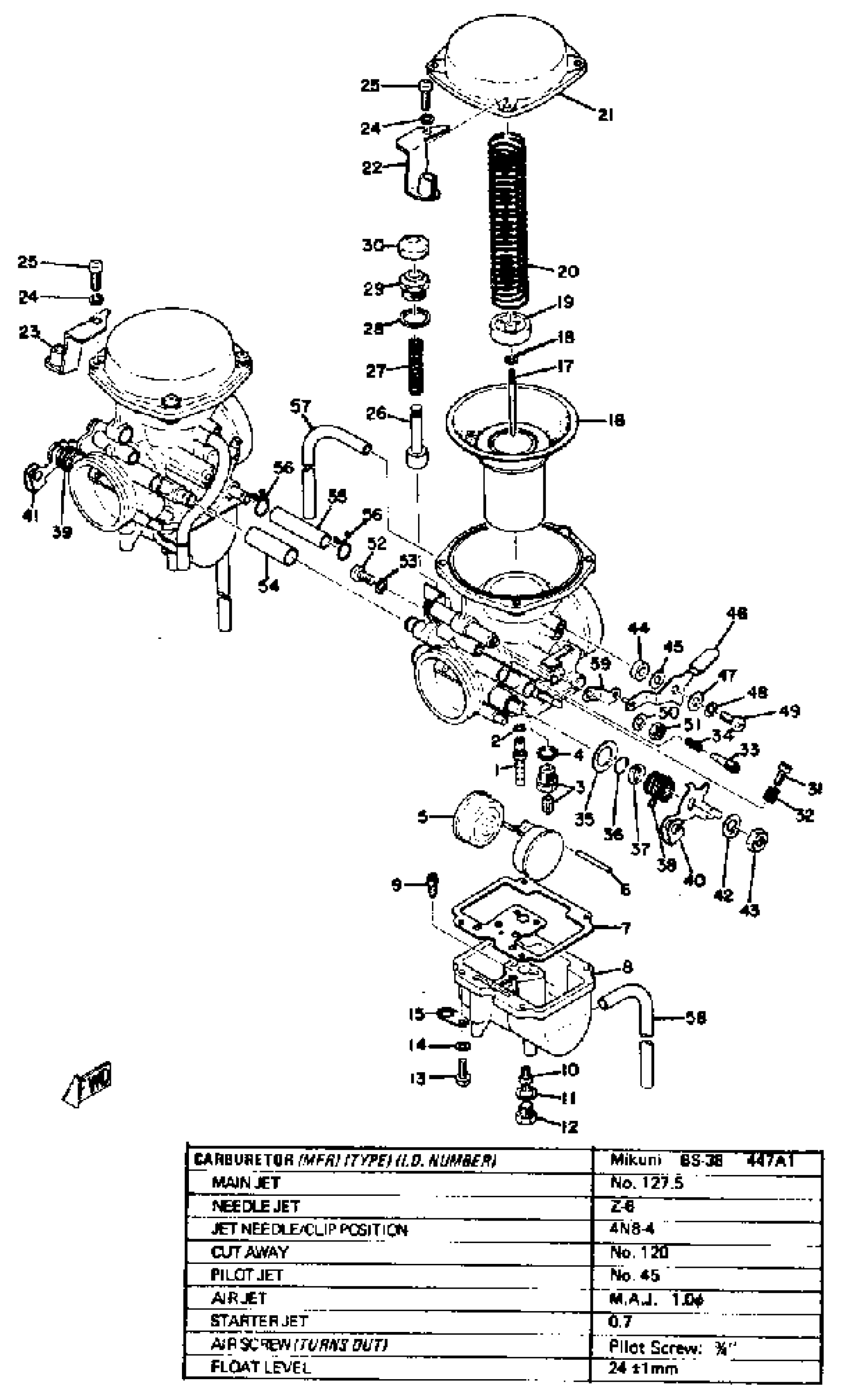

Yamaha TX650A (TX650) 1974 CARBURETOR TX650A - XS650B Diagram

#

Description
Price

1

. NOZZLE, MAIN (Z-6)

341-14941-84-00

Unavailable

1

CARBURETOR ASSEMBLY 1

(447-14901-01-00)

Unavailable

2

CARBURETOR ASSEMBLY 2

447-14902-00-00

Unavailable

2

O-RING (256)

93210-03142-00

$12.49

3

VALVE SEAT ASSY

168-14190-20-00

$35.99

4

WASHER, VALVE SEAT

214-14195-00-00

$7.99

5

FLOAT

256-14985-00-00

$93.99

6

PIN, FLOAT

127-14186-00-00

$6.65

7

GASKET, FLOAT CHAMBER

256-14984-01-00

$44.99

8

. BODY, FLOAT CHAMBER

447-14981-00-00

Unavailable

9

. JET, PILOT (NO 45)

256-14942-45-00

Unavailable

10

JET, MAIN (#130)

3G2-14231-26-A0

$10.99

10

JET, MAIN (#125)

3G2-14231-25-00

$13.49

10

JET, MAIN (#135)

3G2-14231-27-00

$13.49

10

JET,MAIN #127.5

3G2-1423A-76-00

$5.49

11

WASHER

256-14956-01-00

Unavailable

12

.. SCREW, PLUG

256-14991-00-00

Unavailable

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

15

PLATE

500-14146-00-00

Unavailable

16

.. DIAPHRAGM ASSY (256-14940-01-00)

256-14940-00-00

Unavailable

17

. NEEDLE (4N08-4)

341-14116-08-00

Unavailable

18

CLIP

256-14919-00-00

Unavailable

19

.. PLATE, NEEDLE FITTING

256-14946-00-00

Unavailable

20

. SPRING, DIAPHRAGM

256-14933-00-00

Unavailable

21

COVER, DIAPHRAGM

(256-14958-00-00)

Unavailable

22

BRACKET, THROTTLE 1

(447-14926-00-00)

Unavailable

23

BRACKET, THROTTLE 2

(447-14927-00-00)

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

26

PLUNGER, STARTER

(306-14171-01-00)

Unavailable

27

. SPRING, PLUNGER

256-14135-00-00

Unavailable

28

WASHER

(306-14954-00-00)

Unavailable

29

CAP, PLUNGER

(306-14174-00-00)

Unavailable

30

.. COVER, PLUNGER CAP

306-14173-00-00

Unavailable

31

.. SCREW, THROTTLE STOP

256-14922-01-00

Unavailable

32

.. SPRING, THROTTLE STOP

256-14934-01-00

Unavailable

33

SCREW, PILOT

(256-14923-00-00)

Unavailable

34

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

35

WASHER

(306-14954-00-00)

Unavailable

36

.. SEAL

256-14997-00-00

Unavailable

37

VALVE, THROTTLE

(306-14970-00-00)

Unavailable

38

JET, STARTER

(306-14961-00-00)

Unavailable

39

SPRING THROTTLE

(306-14960-00-00)

Unavailable

40

LEVER, THROTTLE 2

(306-14964-00-00)

Unavailable

41

LEVER, THROTTLE 4

(306-14963-00-00)

Unavailable

42

.. WASHER

256-14953-00-00

Unavailable

43

NUT(3DM)

95304-12600-00

Unavailable

44

.. RING

256-14918-00-00

Unavailable

45

. WASHER

256-14955-00-00

Unavailable

46

.. LEVER ASSY

306-14905-02-00

Unavailable

47

WASHER

4CW-14962-00-00

Unavailable

48

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

49

SCREW, PAN HEAD

98511-04012-00

Unavailable

50

WASHER

(256-14973-00-00)

Unavailable

51

NUT (682)

95380-10700-00

Unavailable

52

SCREW, PAN HEAD

98511-04012-00

Unavailable

53

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

54

PIPE, STARTER CON

(306-14988-00-00)

Unavailable

55

PIPE, OVERFLOW

(341-14196-00-00)

Unavailable

56

CLIP

(341-14919-00-00)

Unavailable

57

PIPE, AIRVENT

(256-14197-01-00)

Unavailable

58

HOSE

(256-14987-00-00)

Unavailable

59

LEVER, STARTER 1

(306-14975-00-00)

Unavailable
