CAMSHAFT CHAIN TENSIONER TX650A - XS650B

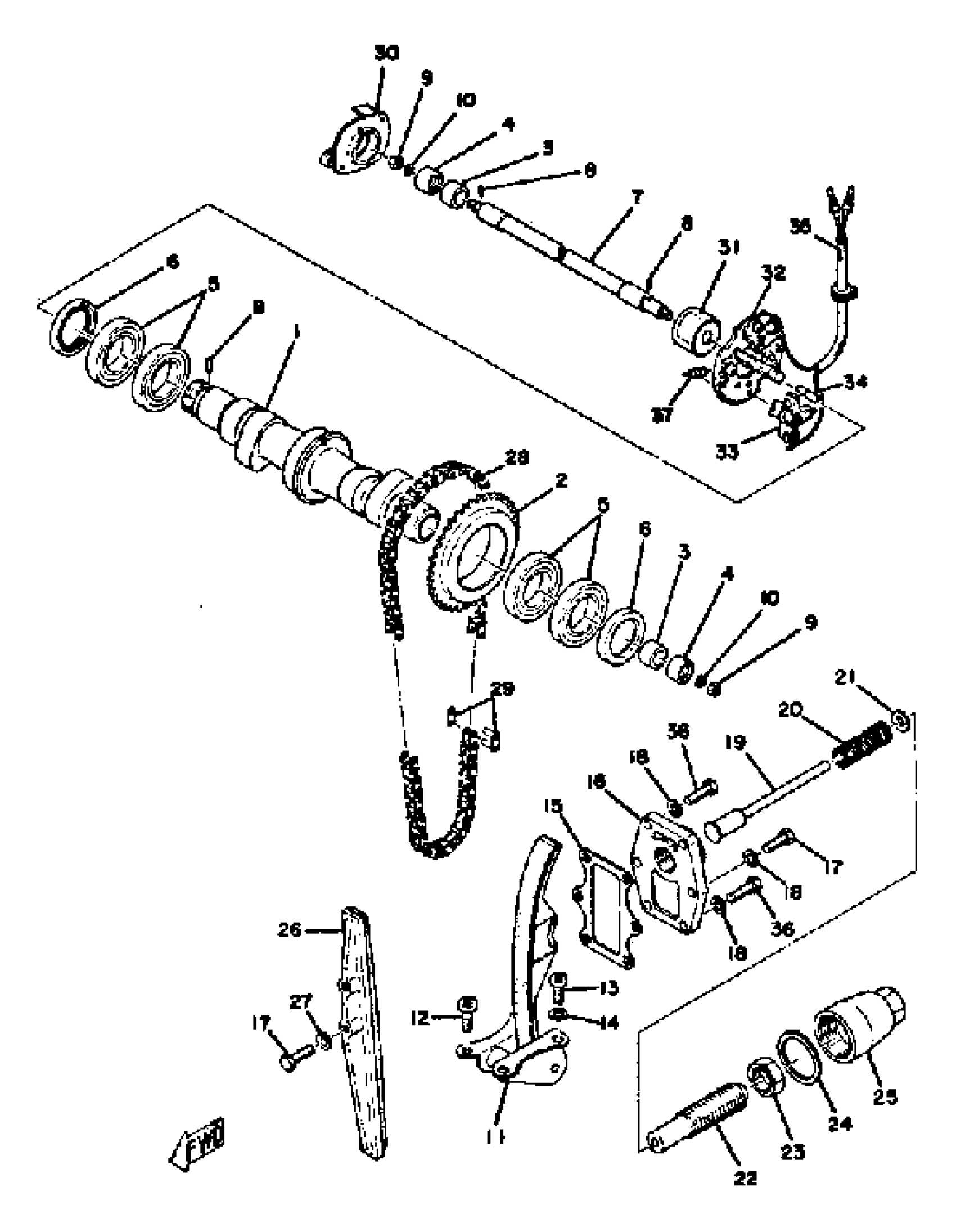

Yamaha TX650A (TX650) 1974 CAMSHAFT CHAIN TENSIONER TX650A - XS650B Diagram
#
1
CAMSHAFT ASSEMBLY 1
447-12170-00-00
Unavailable
4
. SEAL, LABYRINTH
256-11155-00-00
Unavailable
7
SHAFT, BREAKER
256-11156-00-00
Unavailable
9
NUT, HEXAGON
95380-06600-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
GUIDE, STOPPER 2
447-12220-00-00
Unavailable
12
SCREW, SPEC''L SHAPE
90149-06009-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
GASKET,TENSION CAS
306-12213-12-00
Unavailable
16
HOLDER, TENSIONER
(447-12211-00-00)
Unavailable
17
BOLT(3DM)
97024-06020-00
Unavailable
18
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
19
ROD, CHN TENSIONER
(447-12217-00-00)
Unavailable
20
SPRING COMPRESSION341122160200
90501-14095-00
Unavailable
21
DAMPER
341-12232-01-00
Unavailable
22
BOLT
(90109-18306-00)
Unavailable
23
NUT, HEXAGON (256-12218-00)
90170-18103-00
Unavailable
24
GASKET (30.2-40-1.4) (256-12214-00)
90430-30051-00
Unavailable
24
O-RING (341)
93210-32172-00
Unavailable
25
CASE, CHAIN TENSNR
341-12212-02-00
Unavailable
26
GUIDE, STOPPER 1
256-12231-01-00
Unavailable
27
GASKET 256113960000
90430-06014-00
Unavailable
27
GASKET 256113960000
90430-06014-00
Unavailable
28
CHAIN
94562-19106-00
Unavailable
29
JOINT, CHAIN
94662-19001-00
Unavailable
30
GOVERNOR ASSEMBLY
256-81653-10-00
Unavailable
31
CAM
256-81651-10-00
Unavailable
32
BREAKER PLATE ASSEMBLY
447-81620-10-00
Unavailable
33
CONTACT BREAKER ASSY
256-81621-11-00
Unavailable
34
. LUBRICATOR
256-81631-10-00
Unavailable
35
. WIRE, LEAD
256-81615-10-00
Unavailable
36
BOLT
(90109-06019-00)
Unavailable
37
SPRING, GOVERNOR
256-81654-10-00
Unavailable
