- TX500 (TX500) 1973
STAND FOOTREST BRAKE PEDAL

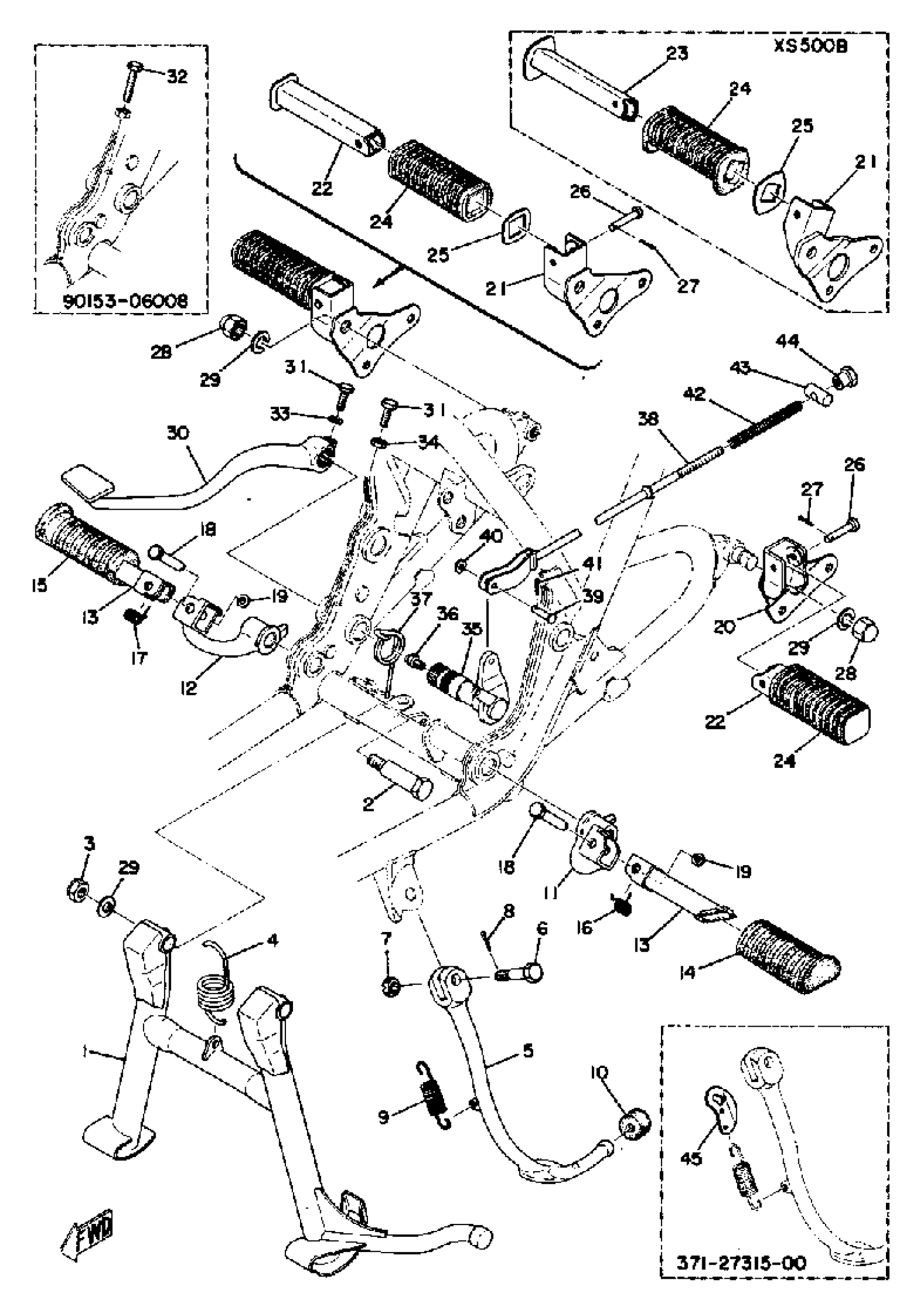

Yamaha TX500 (TX500) 1973 STAND FOOTREST BRAKE PEDAL Diagram
#
1
STAND, MAIN (371-27111-04)
2F1-27111-00-00
Unavailable
1
FRT FOOTREST ASSEMBLY L
(371-27410-00-00)
Unavailable
2
FRT FOOTREST ASSEMBLY R
(371-27420-00-00)
Unavailable
2
BOLT
90109-10440-00
Unavailable
3
NUT, SELF LOCKING
90185-10031-00
Unavailable
4
SPRING, TENSION
90506-45063-00
Unavailable
5
STAND, SIDE
(1J7-27311-00-00)
Unavailable
6
BOLT
90109-10399-00
Unavailable
7
NUT, CASTLE
95307-10900-00
Unavailable
10
STOPPER
278-27314-00-00
Unavailable
13
FOOTREST 2
(371-27421-00-00)
Unavailable
14
. COVER, FOOTREST
341-27423-00-00
Unavailable
15
. COVER, FOOTREST
341-27413-00-00
Unavailable
16
. SPRING, TORSION
90508-20154-00
Unavailable
17
SPRING TORSION 371274560000
90508-20155-00
Unavailable
18
PIN (214-27418-00)
90243-08006-00
Unavailable
19
WASHER, PLATE (214-27417-00)
90201-06042-00
Unavailable
20
BRACKET 1
(371-27432-00-00)
Unavailable
20
BRACKET 1
(371-27432-01-00)
Unavailable
21
BRACKET 2
(371-27442-00-00)
Unavailable
21
BRACKET 2
(371-27442-01-00)
Unavailable
22
. FOOTREST, REAR 1
168-27431-10-00
Unavailable
22
FOOTREST, REAR 1
447-27431-00-00
Unavailable
23
FOOTREST, REAR 2
447-27441-00-00
Unavailable
24
. COVER, RR FOOTREST
307-27433-00-00
Unavailable
24
COVER, REAR FOOTREST
447-27433-00-00
Unavailable
25
WASHER 447274370000
90209-18070-00
Unavailable
25
. WASHER, SPEC''L SHAP (168-27437-10)
90209-18117-00
Unavailable
26
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
27
PIN, COTTER
91490-16020-00
Unavailable
28
NUT, CAP (371)
90176-10009-00
Unavailable
28
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
29
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
30
PEDAL, BRAKE
371-27211-02-93
Unavailable
31
BOLT, HEXAGON
97017-06025-00
Unavailable
31
BOLT, HEXAGON
97017-06025-00
Unavailable
32
SCREW 341272170000
90153-06008-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
34
NUT, HEXAGON (371 447)
90170-06184-00
Unavailable
35
ROD, BRAKE
371-27231-02-00
Unavailable
36
NIPPLE, GREASE
93700-06M03-00
Unavailable
37
SPRING, TORSION
(90508-35157-00)
Unavailable
38
ROD, BRAKE
371-27231-02-00
Unavailable
39
PIN, WITH HOLE (248-27228-00)
90240-06006-00
Unavailable
40
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
41
PIN, COTTER
91490-25020-00
Unavailable
42
SPRING, (180-27236-00)
90501-10245-00
Unavailable
43
PIN 1562723700
90249-12008-00
Unavailable
44
NUT (25K)
90179-06411-00
Unavailable
45
LINK, SIDE STAND
371-27315-00-00
Unavailable
