1973 Yamaha TX500 (TX500) Seat Diagram

← All diagrams

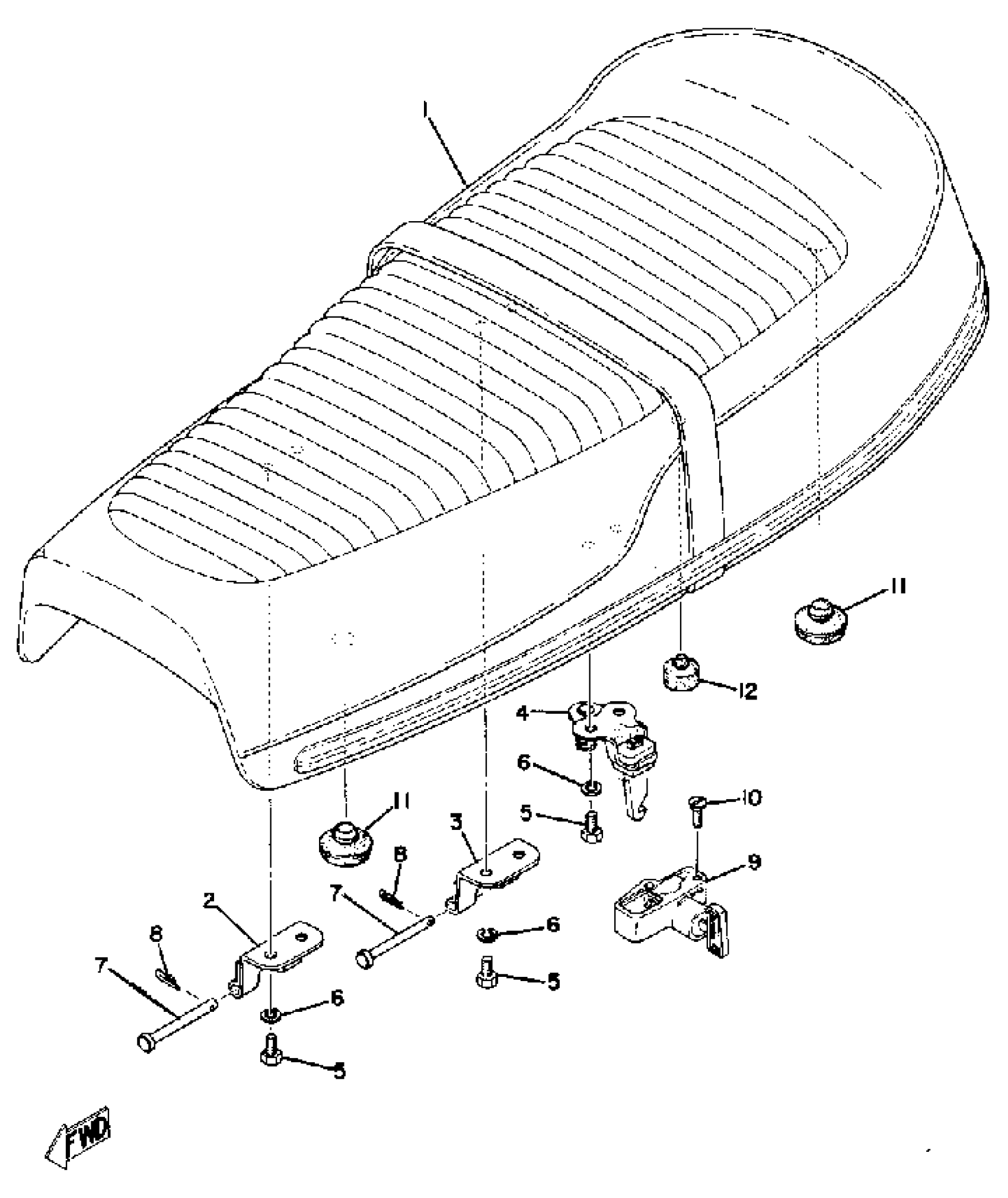

Find the part on the Seat diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(371-24730-02-00)

1
Out of stock

1

COVER, DOUBLE SEAT

(371-24731-00-00)

1
Out of stock

2

HINGE, SEAT

307-24726-00-33

1
Out of stock

3

HINGE, SEAT

371-24726-01-00

1
Out of stock

4

BRACKET, SEAT

371-24728-02-00

1
Out of stock

5

BOLT (661)

97013-06012-00

1

$4.71

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

PIN, CLEVIS

91701-05055-00

1
Out of stock

8

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

9

SEAT LOCK ASSEMBLY

584-24705-00-00

1
Out of stock

10

SCREW, FLAT

98707-06012-00

1

$6.18

In stock

11

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

12

STOPPER MAIN STAND

278-27114-00-00

1

$8.45

In stock
