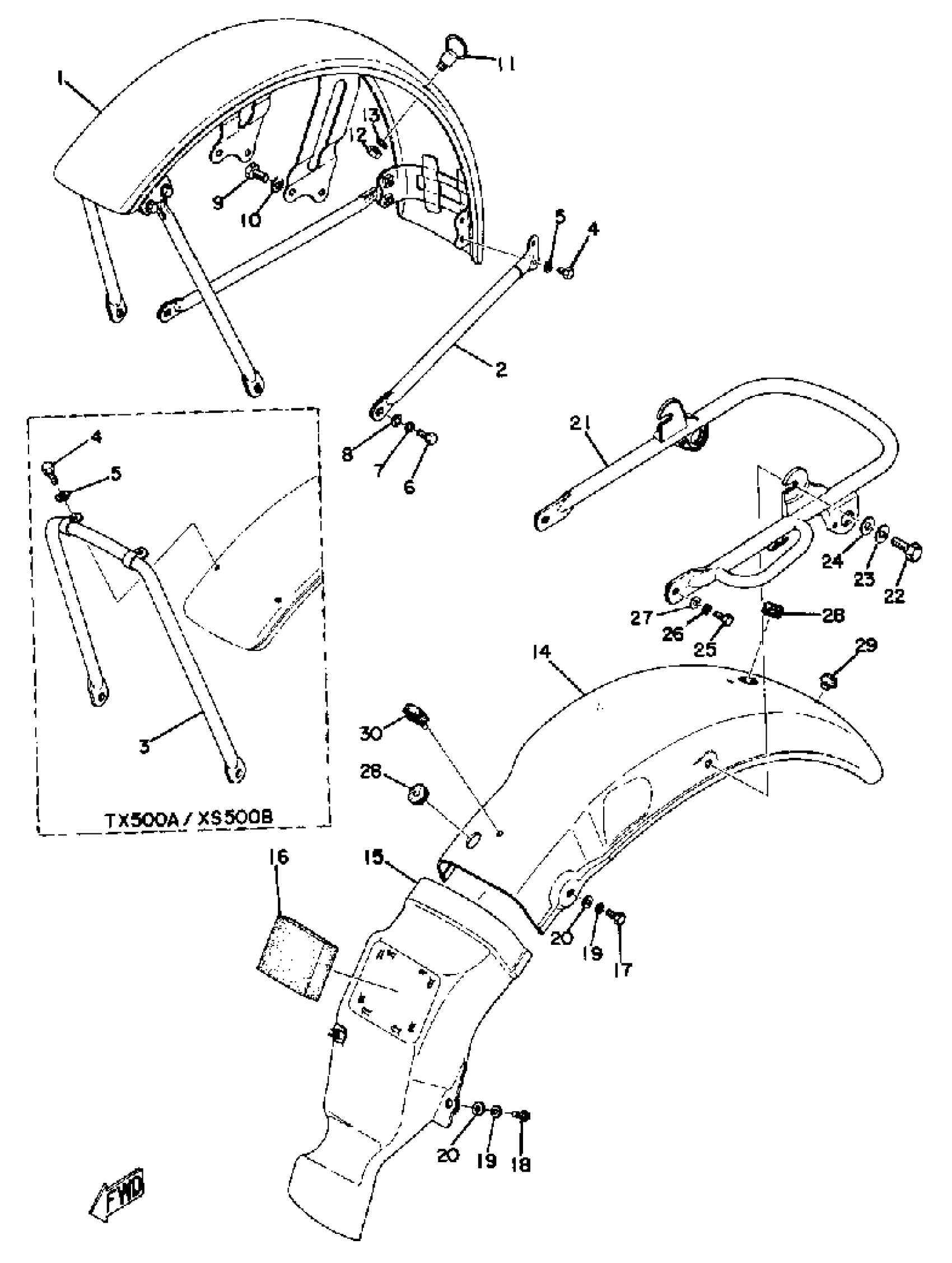

Yamaha TX500 (TX500) 1973 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(421-21510-00-93)

Unavailable

2

STAY, FENDER 1

(371-21513-00-00)

Unavailable

2

STAY, FENDER 1

(371-21513-00-00)

Unavailable

3

STAY, FENDER 1

(421-21513-00-00)

Unavailable

4

BOLT (661)

97013-06012-00

$4.40

4

BOLT (661)

97013-06012-00

$4.40

5

WASHER, SPRING

92995-06100-00

$2.95

5

WASHER, SPRING

92995-06100-00

$2.95

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

7

WASHER, SPRING

92995-06100-00

$2.95

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

9

BOLT(JA9)

90101-08691-00

$4.65

10

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

11

HOLDER, CABLE

(174-21518-00-00)

Unavailable

12

NUT, HEXAGON

95380-06600-00

$4.11

13

WASHER, SPRING

92995-06100-00

$2.95

14

FENDER, REAR

(371-21610-01-93)

Unavailable

15

GUARD, MUD

(371-21629-00-00)

Unavailable

16

SEAL

(371-21268-00-00)

Unavailable

17

BOLT (661)

97013-06012-00

$4.40

18

SCREW, PAN

98507-06014-00

Unavailable

19

WASHER, SPRING

92995-06100-00

$2.95

20

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

21

STAY, REAR

(371-21645-00-00)

Unavailable

22

BOLT (682)

97013-08025-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

24

WASHER, PLAIN

92990-08200-00

$2.36

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

26

WASHER, SPRING

92995-06100-00

$2.95

27

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

28

GROMMET

(90480-01142-00)

Unavailable

29

DAMPER 2

5A8-21639-00-00

Unavailable

30

CLAMP

(90464-04014-00)

Unavailable
