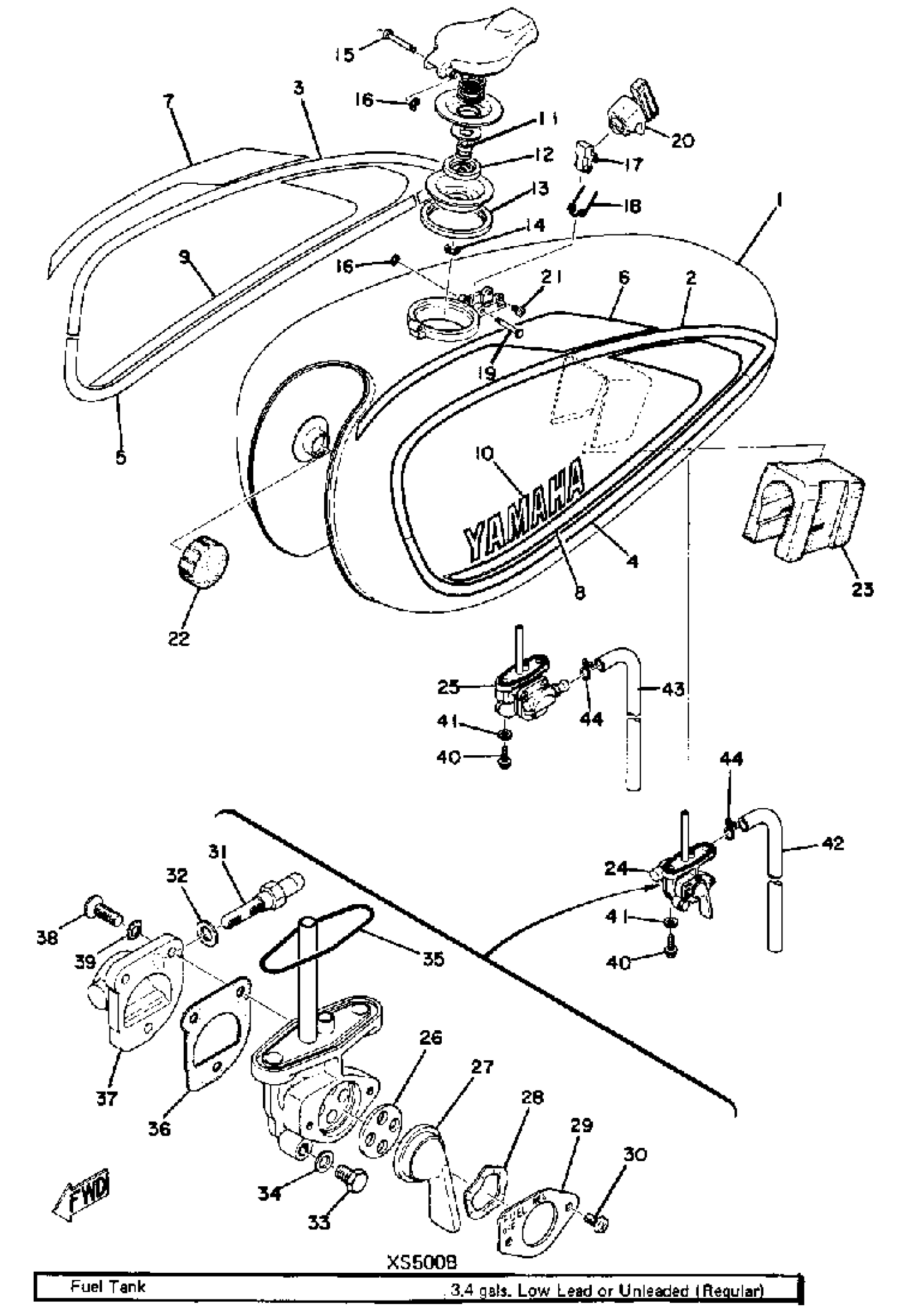

Yamaha TX500 (TX500) 1973 FUEL TANK 2 XS500B Diagram

#

Description

Price

1

CAP ASSEMBLY

341-24653-00-00

Unavailable

1

FUEL TANK

(371-24110-20-E4)

Unavailable

2

GRAPHIC, FUEL TNK 1

(371-24244-60-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(371-24245-60-00)

Unavailable

4

GRAPHIC, FUEL TNK 3

(371-24246-60-00)

Unavailable

5

GRAPHIC, FUEL TNK 4

(371-24247-60-00)

Unavailable

6

GRAPHIC, FUEL TNK 5

(371-24248-60-00)

Unavailable

7

GRAPHIC, FUEL TNK 6

(371-24249-60-00)

Unavailable

8

GRAPHIC, FUEL TNK 7

(371-24254-60-00)

Unavailable

9

GRAPHIC, FUEL TNK 8

(371-24255-60-00)

Unavailable

10

EMBLEM, YAMAHA(4GA)

99221-00140-00

$4.46

11

GASKET, CAP 2

(308-24642-00-00)

Unavailable

12

GASKET, CAP 1

(308-24641-00-00)

Unavailable

13

. GASKET, CAP

341-24612-01-00

Unavailable

14

CIRCLIP(53L)

99001-06600-00

$1.01

15

PIN, SPECIAL SHAPE (308-24623-00)

90249-03087-00

Unavailable

16

CIRCLIP (604)

93430-02001-00

Unavailable

17

HOOK

341-24628-00-00

Unavailable

18

SPRING, TORSION

90508-07235-00

Unavailable

19

PIN, SPECIAL SHAPE

90249-03088-00

Unavailable

20

CAP ASSEMBLY

341-24602-01-00

Unavailable

21

SCREW, PAN HEAD

98507-04018-00

Unavailable

22

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

23

DAMPER, LOCATING 1

(371-24181-00-00)

Unavailable

24

FUEL COCK ASSEMBLY 1

447-24500-02-00

Unavailable

25

FUEL COCK ASSEMBLY 2

447-24510-02-00

Unavailable

26

VALVE

137-24523-00-00

Unavailable

27

. LEVER, COCK

447-24524-00-00

Unavailable

28

WASHER, WAVE

132-24518-00-00

Unavailable

29

. PLATE, LEVER FITTING

447-24525-00-00

Unavailable

29

PLATE, LVR FITTING

(447-24546-00-00)

Unavailable

30

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

31

. NIPPLE

256-24537-00-00

Unavailable

32

. GASKET

256-24528-00-00

Unavailable

33

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

34

. GASKET, BODY 4

801-24437-00-00

Unavailable

35

GASKET, BODY

256-24512-00-00

Unavailable

36

GASKET FILTER

447-24522-00-00

Unavailable

37

COVER, FILTER

(447-24547-00-00)

Unavailable

38

SCREW, FLAT

98707-04010-00

Unavailable

39

WASHER, EX.TOOTH

(92901-04500-00)

Unavailable

40

SCREW 256241430000

90149-06011-00

Unavailable

41

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

42

HOSE (L420)

90445-092K1-00

Unavailable

43

HOSE (L420)

90445-092K1-00

Unavailable

44

CLIP 101235600

90467-08003-00

Unavailable
