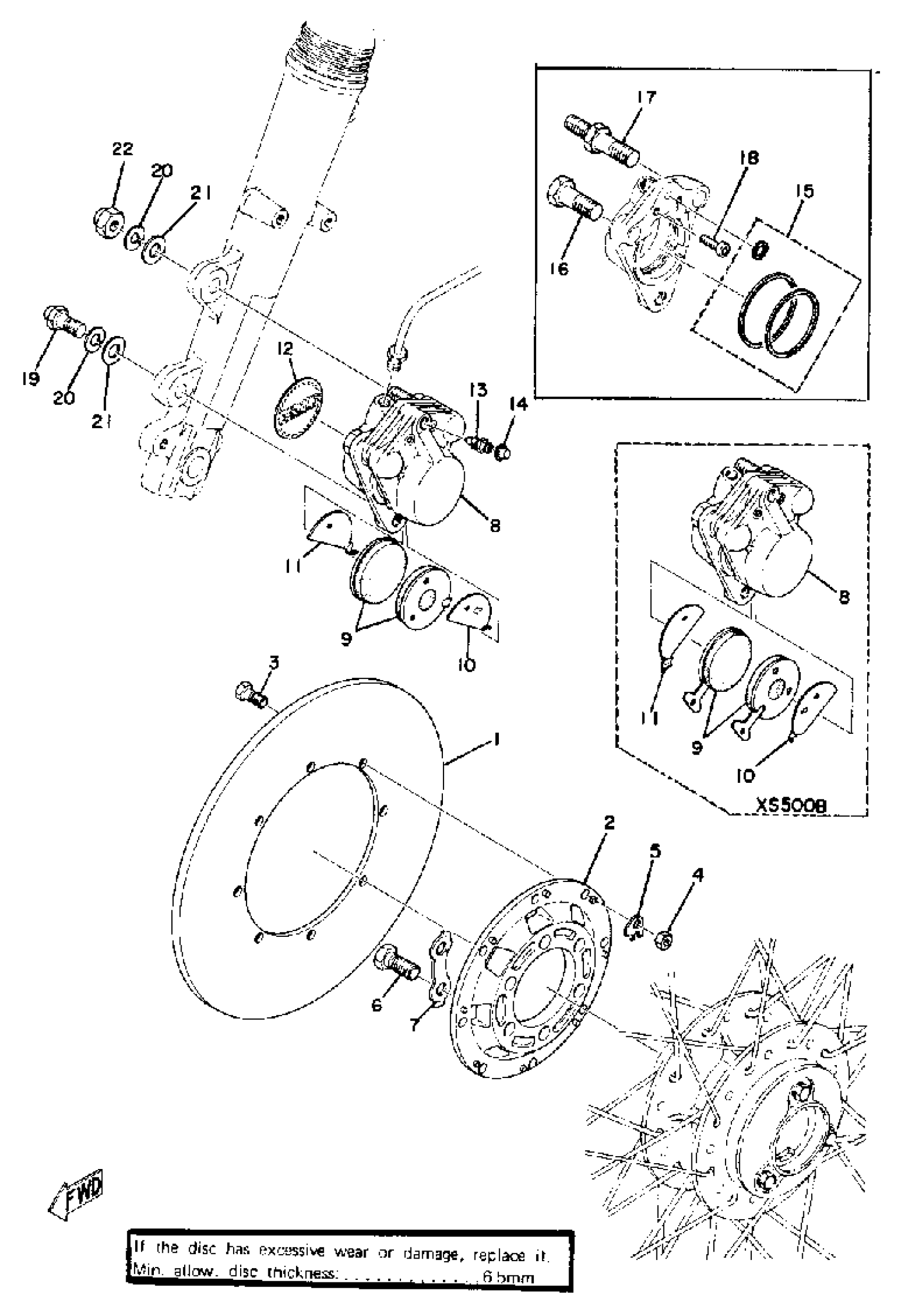

Yamaha TX500 (TX500) 1973 DISC BRAKE CALIPER Diagram

#

Description

Price

1

DISC, BRAKE

(351-25831-01-00)

Unavailable

2

BRACKET, DISC

(351-25832-00-00)

Unavailable

3

BOLT 306258330000

90109-06018-00

$10.49

4

NUT, HEXAGON

95380-06600-00

Unavailable

5

WASHER LOCK 306258340000

90215-06106-00

Unavailable

6

BOLT (341-25411-00)

90109-08367-00

Unavailable

7

WASHER, LOCK (447)

341-25412-00-00

$12.99

8

CALIPER ASSEMBLY (306-25810-09)

306-25810-0A-00

Unavailable

9

. BRAKE PAD KIT, FRNT

1A1-W0045-00-00

Unavailable

10

. SHIM, CALIPER (306-25827-02)

306-25827-04-00

Unavailable

11

. SHIM, CALIPER

306-25828-04-00

Unavailable

11

. SHIM, CALIPER (306-25828-02)

409-25828-50-00

Unavailable

12

. SCREW, BLEED

306-25824-00-00

Unavailable

13

. SCREW, BLEED

306-25824-00-00

Unavailable

14

CAP

306-25825-01-00

$9.99

15

CALIPER SEAL KIT

856-W0047-00-00

Unavailable

16

. BOLT 1

306-25821-01-00

Unavailable

17

. BOLT 2

306-25822-01-00

Unavailable

18

. BOLT 3

306-25826-01-00

Unavailable

19

BOLT

(90109-10041-00)

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

21

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

22

NUT, CROWN (650)

95380-10800-00

Unavailable
