- TX500 (TX500) 1973
CYLINDER HEAD CYLINDER

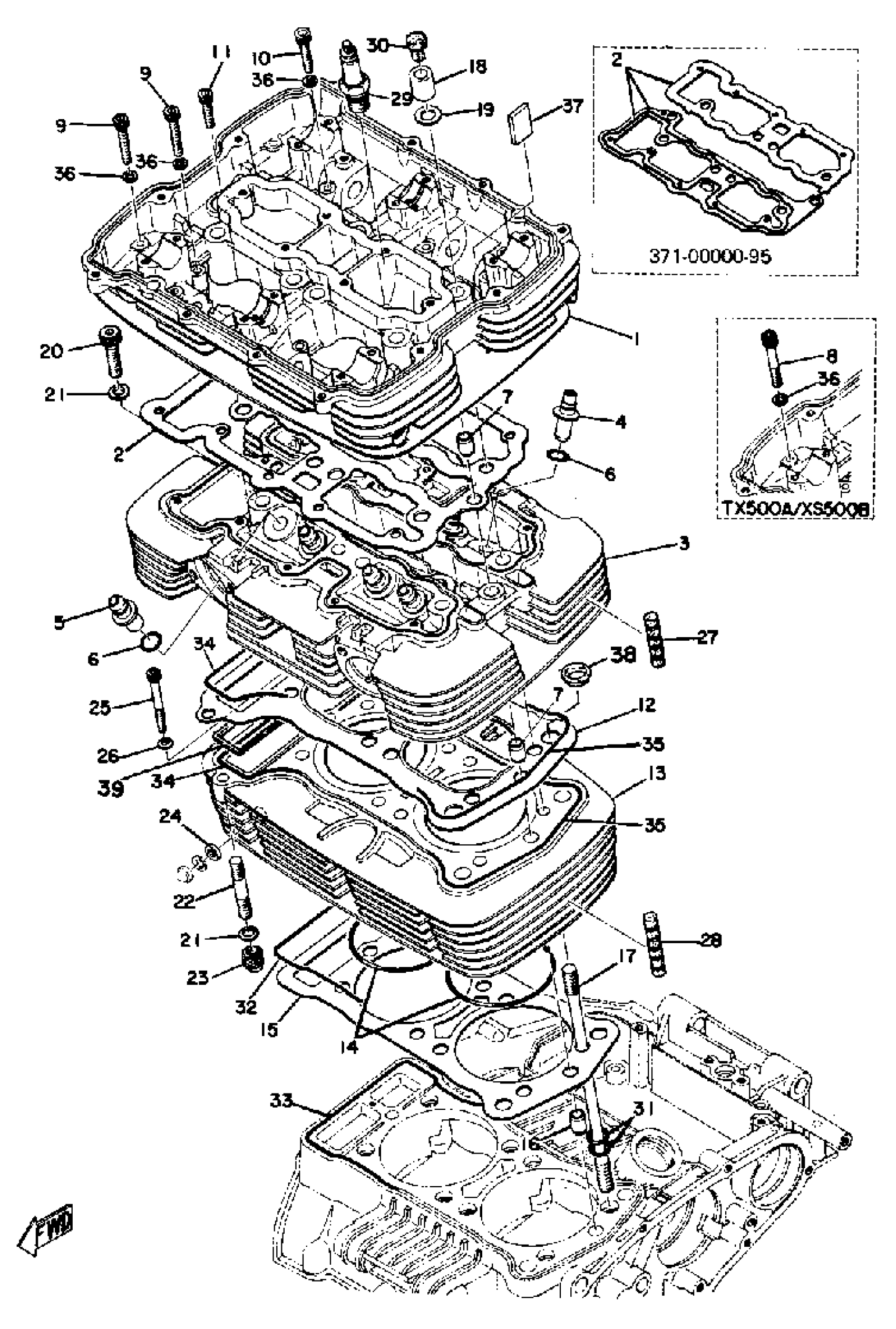

Yamaha TX500 (TX500) 1973 CYLINDER HEAD CYLINDER Diagram
#
1
CASE, CAMSHAFT
(371-11153-03-00)
Unavailable
2
GASKET, CYLINDER.HD.COVR
371-11180-00-00
Unavailable
2
GASKET, HD.COVER 2
371-11194-04-00
Unavailable
3
CYLINDER HEAD ASSEMBLY
(1A8-11110-09-00)
Unavailable
3
CYLINDER HEAD ASSEMBLY
(99999-00844-00)
Unavailable
4
. GDE, INTK VLV 1 O/S
371-11133-12-00
Unavailable
5
. GDE, EXST VLV 1 O/S
371-11134-12-00
Unavailable
9
BOLT,SOCKET
91317-06035-00
Unavailable
9
BOLT,SOCKET
91317-06035-00
Unavailable
11
BOLT,SOCKET
91317-06020-00
Unavailable
12
GASKET, CYL.HEAD 1
2F1-11181-10-00
Unavailable
12
GASKET, CYLINDER HEAD 1
371-11181-01-00
Unavailable
12
GASKET, CYLINDER HEAD 1
371-11181-02-00
Unavailable
13
CYLINDER 1
(371-11311-02-00)
Unavailable
14
O-RING (2H7)
93210-77363-00
Unavailable
15
GASKET, CYL
371-11351-10-00
Unavailable
17
BOLT, STUD
(90116-10270-00)
Unavailable
18
NUT, SPEC''L SHAPE
(90179-10056-00)
Unavailable
18
NUT, SPEC''L SHAPE
(90179-10205-00)
Unavailable
19
WASHER, PLATE 3711117500
90201-10124-00
Unavailable
20
BOLT, SOCKET HEAD
(91313-08030-00)
Unavailable
20
BOLT, SOCKET
91317-08030-00
Unavailable
21
WASHER, PLATE (33N)
90201-084G3-00
Unavailable
22
BOLT, STUD
90116-08048-00
Unavailable
22
BOLT, STUD
(90116-08059-00)
Unavailable
22
BOLT, STUD
90116-08161-00
Unavailable
23
NUT (371)
90179-08004-00
Unavailable
24
OIL SEAL (8X12X3-371)
93104-08040-00
Unavailable
25
BOLT,SOCKET
91317-06050-00
Unavailable
26
WASHER, PLATE
(90201-06329-00)
Unavailable
27
ABSORBER 1
(1A8-11161-01-00)
Unavailable
27
ABSORBER 1
(371-11161-00-00)
Unavailable
28
ABSORBER 2
(371-11162-00-00)
Unavailable
29
D8EA NGK SPLUG 10PK
D8E-A0000-00-00
Unavailable
30
PLUG, BLIND
371-11197-00-00
Unavailable
31
O-RING (371)
93210-06245-00
Unavailable
32
SEAL, CYLINDER 1
371-11355-00-00
Unavailable
33
SEAL, CYLINDER 2
371-11356-00-00
Unavailable
34
SEAL, CYLINDER 3
371-11357-00-00
Unavailable
35
SEAL, CYLINDER 4
371-11358-00-00
Unavailable
36
WASHER, PLATE (371)
90201-06431-00
Unavailable
37
PLATE, BREATHER 4
(371-11136-00-00)
Unavailable
38
SEAL, CYLINDER 4
1A8-11358-01-00
Unavailable
39
CYLINDER HEAD ASSEMBLY
(1A8-11110-09-00)
Unavailable
39
ABSORBER 1
(1A8-11161-01-00)
Unavailable
39
. COVER, CYLINDERHEAD 1
1A8-11191-00-00
Unavailable
39
COVER, CYLINDER.HEAD 2
(1A8-11192-01-00)
Unavailable
39
SEAL, CYLINDER 3
1A8-11357-00-00
Unavailable
39
GUIDE, STOPPER 2
(1A8-12241-00-00)
Unavailable
39
GASKET, HD COVER 1
2F1-11193-10-00
Unavailable
39
BOLT, STUD
90116-08048-00
Unavailable
39
BOLT, STUD
(90116-08059-00)
Unavailable
39
NUT, SPEC''L SHAPE
(90179-10205-00)
Unavailable
39
BOLT,SOCKET
91317-08040-00
Unavailable
39
CYLINDER HEAD ASSEMBLY
(99999-00844-00)
Unavailable
