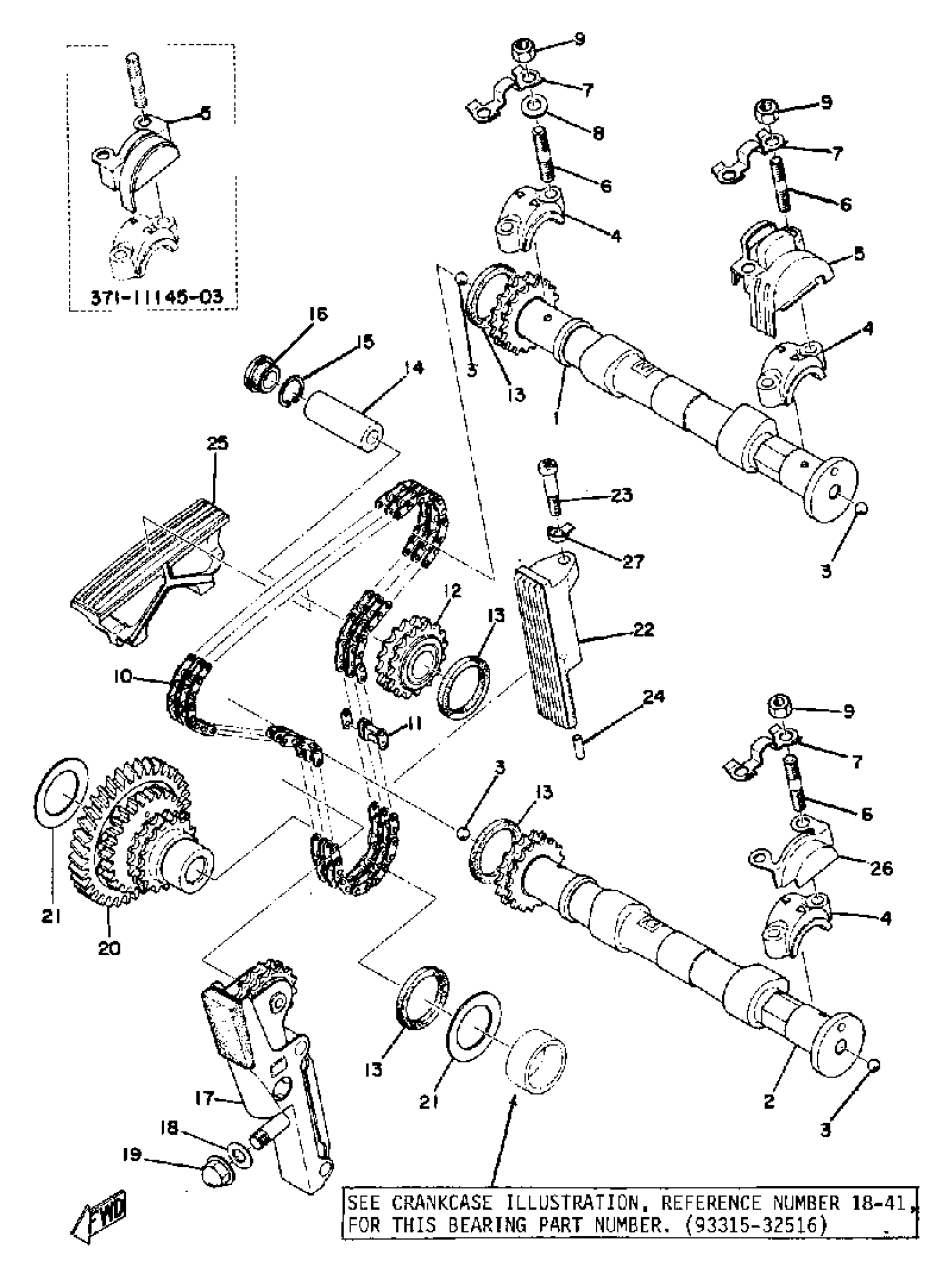

Yamaha TX500 (TX500) 1973 CAMSHAFT CHAIN TENSIONER Diagram

#

Description
Price

1

CAMSHAFT ASSEMBLY 1

(371-12170-01-00)

Unavailable

2

CAMSHAFT ASSEMBLY 2

(371-12180-02-00)

Unavailable

3

BALL

93501-04011-00

$8.49

4

CAP, CAMSHAFT 1

(371-12173-00-00)

Unavailable

5

PLATE, BREATHER 2

(371-11145-03-00)

Unavailable

6

BOLT, STUD (371-12174-00)

90116-06098-00

Unavailable

7

WASHER, LOCK

371-12175-00-00

Unavailable

7

WASHER, LOCK

371-12175-00-00

Unavailable

8

WASHER, PLATE

(90201-06329-00)

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

CHAIN

94862-09104-00

Unavailable

11

. CHAIN JOINT

94962-09001-00

Unavailable

12

SPROCKET, IDLE

(371-12264-01-00)

Unavailable

13

DAMPER, CHAIN 1

(371-12251-01-00)

Unavailable

14

SHAFT 1

371-11455-00-00

Unavailable

15

CIRCLIP, R-TYPE

(93420-16032-00)

Unavailable

16

PLUG, SPEC''L SHAPE

90338-16003-00

Unavailable

17

TENSNR ASSEMBLY, CAM CHN

(1J3-12210-00-00)

Unavailable

18

WASHER, PLATE

90201-07384-00

Unavailable

18

WASHER, PLAIN

92990-08200-00

Unavailable

19

NUT, CROWN

90176-07018-00

Unavailable

19

NUT, CROWN

(90176-08011-00)

Unavailable

20

CM CHN SPRKT ASSEMBLY 1

(371-11540-03-00)

Unavailable

21

WASHER PLATE 371115580000

90201-25291-00

Unavailable

22

GUIDE, STOPPER 1

(371-12231-00-00)

Unavailable

23

SCREW, SPEC''L SHAPE

(90149-06010-00)

Unavailable

24

PIN,DOWEL (137)

93604-14012-00

Unavailable

25

GUIDE, STOPPER 2

(1A8-12241-00-00)

Unavailable

26

PLATE, BREATHER

(371-11165-01-00)

Unavailable

27

WASHER, LOCK (371)

90215-06040-00

Unavailable
