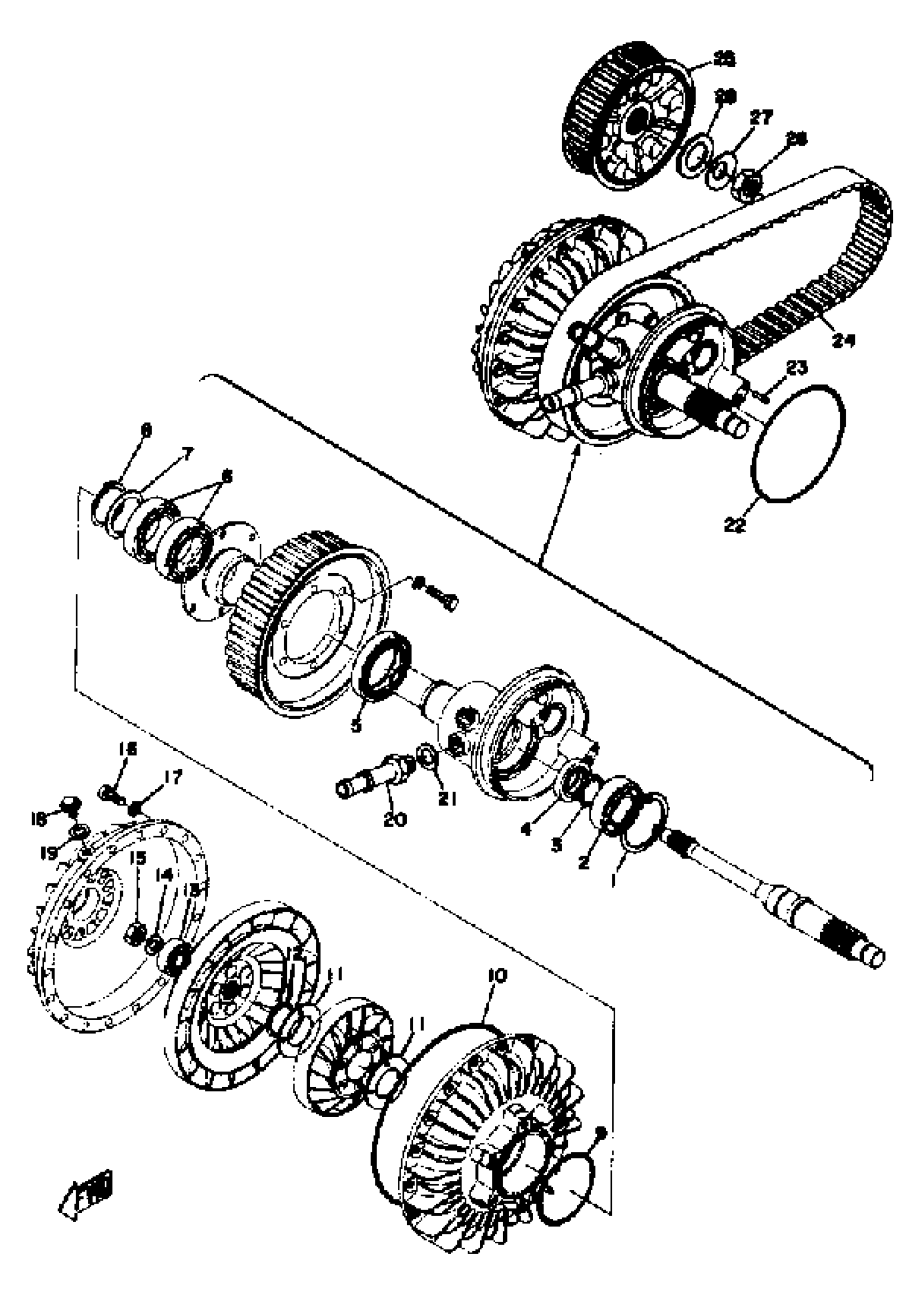

Yamaha TW433F 1974 TORQUE CONVERTER Diagram

#

Description
Price

1

TORQUE CONV ASSEMBLY

(868-16700-00-00)

Unavailable

1

CIRCLIP(26H)

99009-52500-00

$12.49

2

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

3

CIRCLIP (4L0)

93440-25084-00

$5.60

4

OIL SEAL (5V6)

93103-25125-00

Unavailable

5

. OIL SEAL, SW-TYPE

93103-48070-00

Unavailable

6

BEARING

(93306-00703-00)

Unavailable

7

SHIM

(834-16715-00-00)

Unavailable

8

. CIRCLIP, S-TYPE (S-35)

93410-35027-00

Unavailable

9

O-RING

(93210-69203-00)

Unavailable

10

. O-RING

93211-64236-00

Unavailable

11

BEARING, THRUST

(834-16737-00-00)

Unavailable

12

CIRCLIP, S-TYPE

(93410-28028-00)

Unavailable

13

BEARING(3WF)

93306-20119-00

$33.99

14

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

15

NUT (682)

95380-10700-00

Unavailable

16

SCREW, PAN HEAD

(98511-05018-00)

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

BOLT, WASHER BASED(4JT)

90105-08729-00

Unavailable

19

GASKET

90430-08023-00

Unavailable

20

CONNECTOR, PIPE

(868-16756-00-00)

Unavailable

21

GASKET

214-11198-01-00

Unavailable

22

O-RING

93211-13109-00

Unavailable

23

PIN, DOWEL(4SS)

93604-18251-00

Unavailable

24

V-BELT

(868-17641-00-00)

Unavailable

25

PULLEY 1

(868-16785-00-00)

Unavailable

26

NUT

90170-16425-00

Unavailable

27

WASHER, CONICAL SPR

(90208-16014-00)

Unavailable

28

SPACER

(90560-17078-00)

Unavailable
