PUMP DRIVE - GEAR

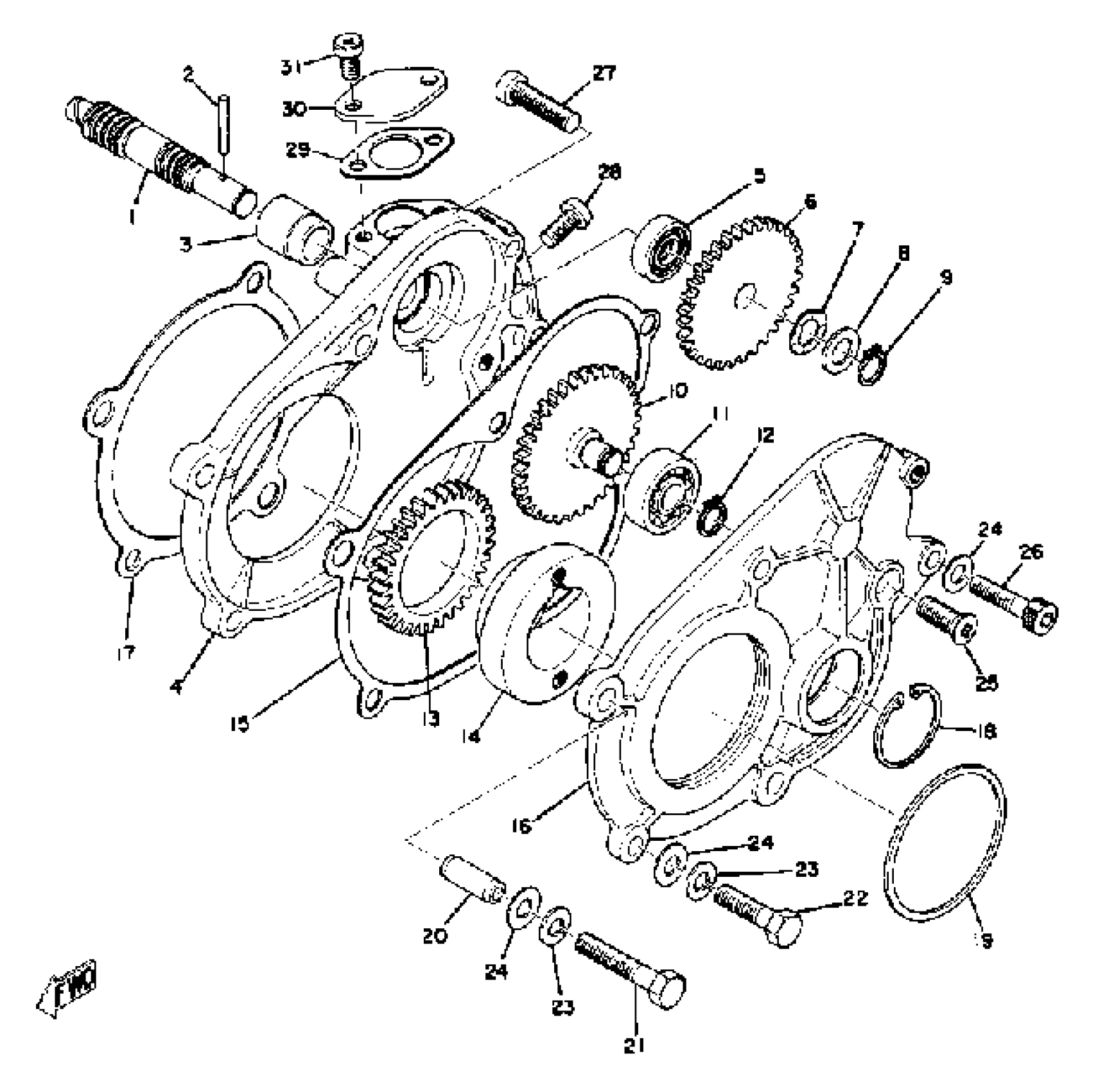

Yamaha TW433F 1974 PUMP DRIVE - GEAR Diagram
#
1
SHAFT, WORM
826-13175-00-00
Unavailable
2
PIN,DOWEL (137)
93603-22028-00
$3.76
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
COVER, OIL PUMP
(8E3-15416-00-00)
Unavailable
5
OIL SEAL (J10)
93101-10090-00
$8.49
6
GEAR, DRIVE 2
821-13188-00-00
Unavailable
7
WASHER, WAVE (137)
90206-11016-00
Unavailable
8
PLATE, CAM THRUST
137-13148-00-00
Unavailable
9
CIRCLIP(10W)
99009-10400-00
$4.73
10
GEAR, IDLE
(821-13179-00-00)
Unavailable
11
BRG,R-B 6000RS 32MM 30G KY
93306-00002-00
Unavailable
12
CIRCLIP(10W)
99009-10400-00
$4.73
13
GEAR, PUMP DRIVE
821-13178-00-00
Unavailable
14
COLLAR, DISTANCE
(868-16136-00-00)
Unavailable
15
GASKET 2
859-15466-09-00
Unavailable
16
COVER, OIL PUMP R
838-15426-00-00
Unavailable
17
GSKT,O PMPCVR
838-15456-09-00
Unavailable
18
CIRCLIP, R-TYPE (R-26)
93420-26024-00
Unavailable
19
SEAL, GREASE
(838-13119-00-00)
Unavailable
20
PIN, DOWEL
91810-18022-00
Unavailable
21
BOLT(3RV)
97014-06035-00
Unavailable
22
BOLT, HEXAGON
97017-06025-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
25
SCREW, FLAT
98707-06014-00
Unavailable
26
BOLT,SOCKET
91317-06025-00
Unavailable
27
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
28
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
29
GASKET
821-17818-02-00
Unavailable
30
CAP, HOUSING
824-17819-00-00
Unavailable
31
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
