ENGINE COWL

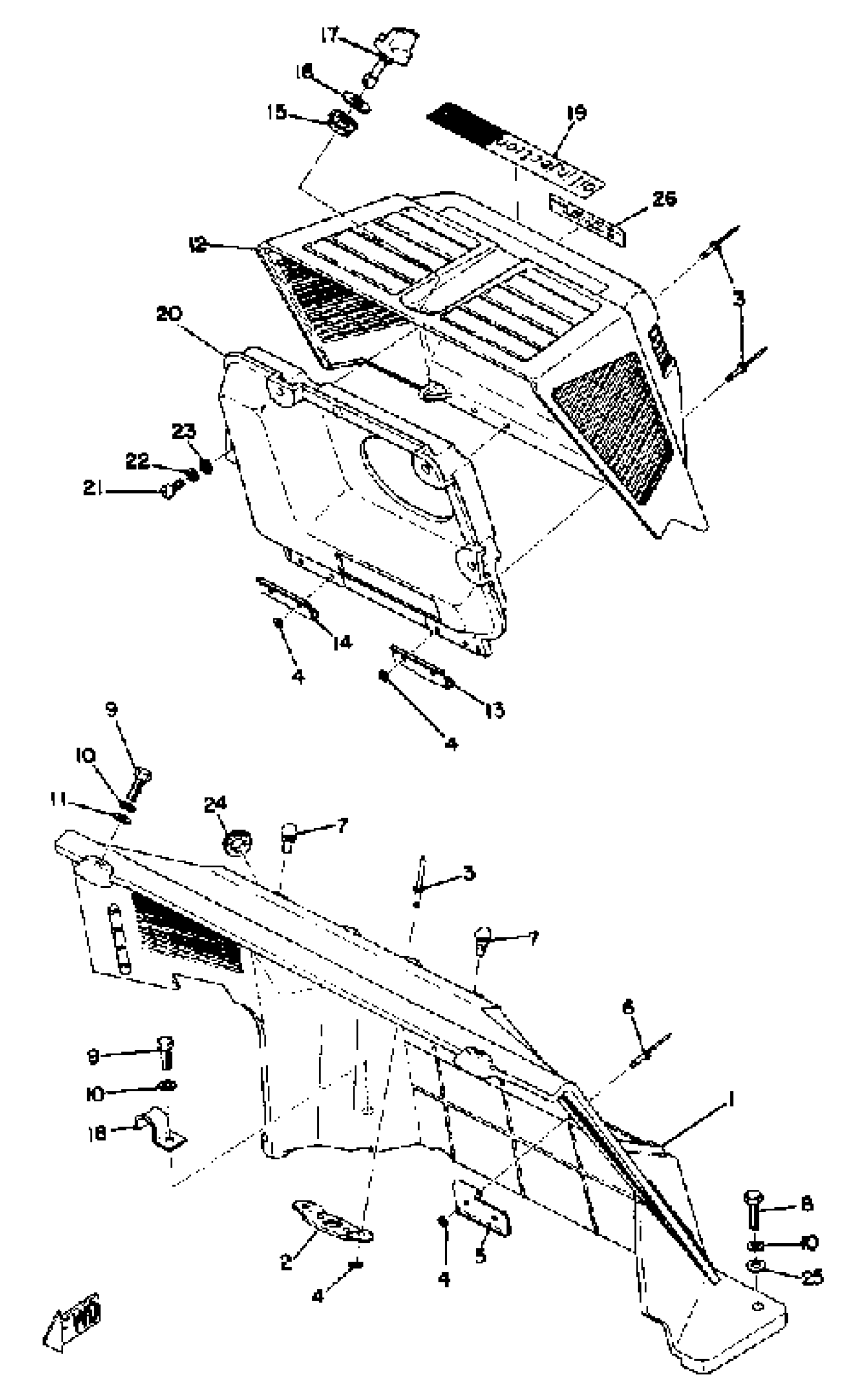

Yamaha TW433F 1974 ENGINE COWL Diagram
#
Description
Price
1
COWL, ENGINE
(863-77411-01-00)
Unavailable
2
BRACKET 4
(807-77424-00-00)
Unavailable
3
RIVET, BLIND
90267-40029-00
$8.49
4
WASHER
90201-04015-00
Unavailable
5
HINGE 3
811-77478-00-00
Unavailable
6
RIVET, BLIND
(90267-40030-00)
Unavailable
7
DAMPER 1
(811-77461-00-00)
Unavailable
8
BOLT, HEXAGON
97017-06020-00
$4.06
9
BOLT, HEXAGON
97017-06020-00
$4.06
10
WASHER, SPRING
92907-06100-00
$4.25
11
WASHER, PLATE (4L0)
90201-062A8-00
$8.49
12
LID, ENGINE COWL
(838-77425-00-00)
Unavailable
13
HINGE 1
(811-77475-00-00)
Unavailable
14
HINGE 2
(811-77476-00-00)
Unavailable
15
BUSHING
(807-77446-00-00)
Unavailable
16
WASHER 6154275100
90201-08103-00
Unavailable
17
FASTNER
(811-42753-00-00)
Unavailable
18
CLAMP
90462-10007-00
Unavailable
19
EMBLEM 1
(868-77351-00-00)
Unavailable
20
SILENCER, INTAKE 2
(838-14441-00-00)
Unavailable
21
SCREW, PAN
98517-06012-00
Unavailable
22
WASHER, SPRING
92907-06100-00
$4.25
23
WASHER(6TA)
92907-06200-00
Unavailable
24
GROMMET
(102-82598-00-00)
Unavailable
25
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
26
EMBLEM 14
(863-77369-00-00)
Unavailable
