Description

Price

1

COVER, SIDE 1

3AW-21711-20-0X

$115.99

2

SCREW, BINDING (10V)

90154-05013-00

$5.60

3

COVER, SIDE 2

3AW-21721-20-0X

$117.99

4

BOX

5EK-2177A-00-00

$37.99

5

BRACKET 1

5EK-2175T-00-00

$15.49

6

BRACKET 2

5EK-2175U-00-00

Unavailable

7

RIVET,BLIND

90267-40080-00

Unavailable

8

WASHER, PLATE(26H)

90201-044H9-00

$8.49

9

GROMMET

90480-13014-00

$8.49

10

BOLT, WITH WASHER

90119-06152-00

$7.49

11

GROMMET(41Y)

90480-01401-00

$8.49

12

BAND, BATTERY

116-82131-00-00

$31.99

13

LABEL, NOTICE BATTERY

10D-2815N-00-00

Unavailable

14

GRAPHIC 1

10D-2173E-10-00

Unavailable

15

GRAPHIC 2

10D-2173F-10-00

Unavailable

16

PLATE, EPA (NON CALIFORNIA)

10D-2179W-10-00

Unavailable

17

PLATE, ROUTING 2

4YN-21686-00-00

Unavailable

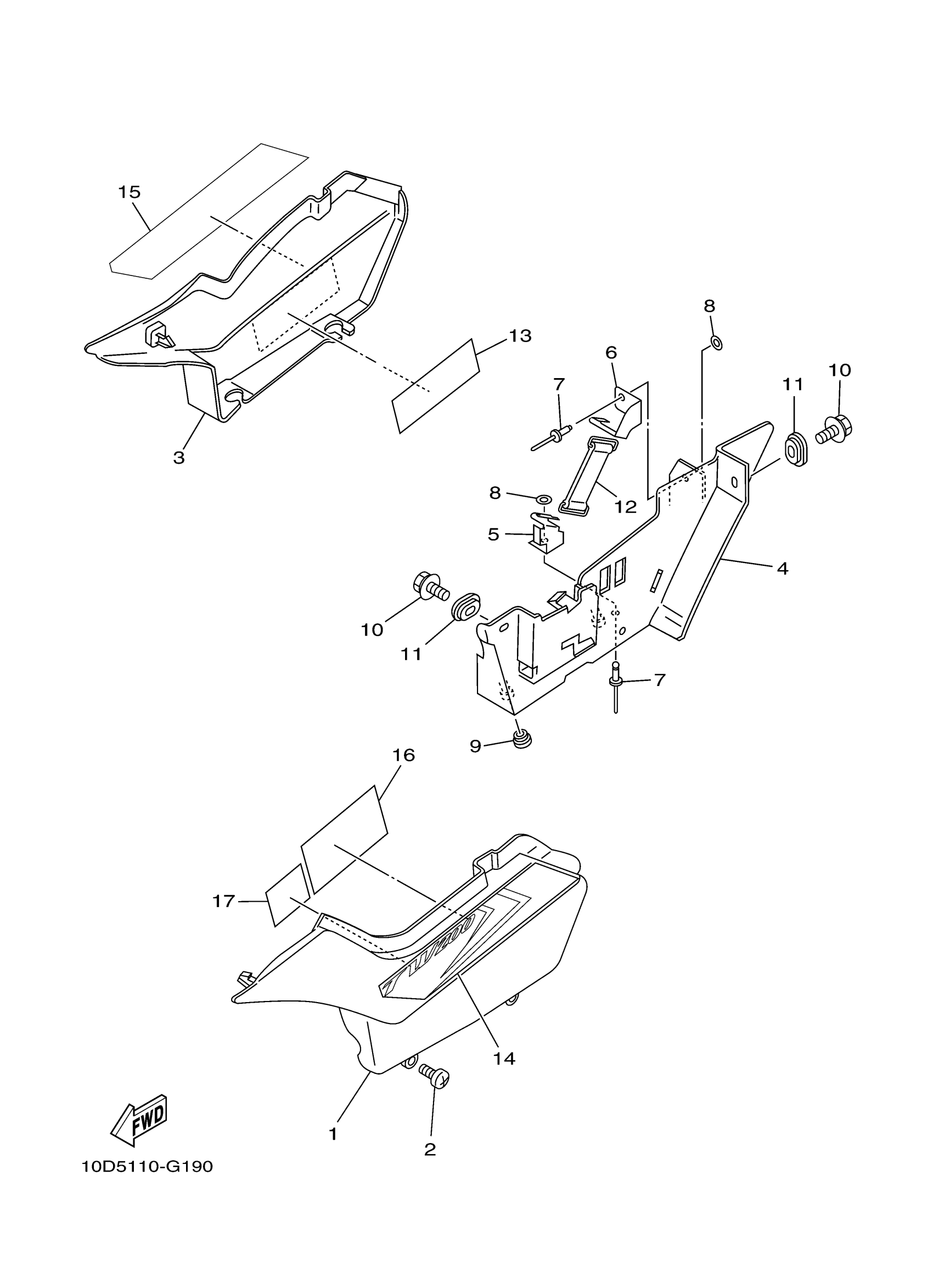

Yamaha TW200YC (TW200 CA) 10DA 2009 SIDE COVER Diagram

COVER, SIDE 1

SCREW, BINDING (10V)

COVER, SIDE 2

BOX

BRACKET 1

BRACKET 2

RIVET,BLIND

WASHER, PLATE(26H)

GROMMET

BOLT, WITH WASHER

GROMMET(41Y)

BAND, BATTERY

LABEL, NOTICE BATTERY

GRAPHIC 1

GRAPHIC 2

PLATE, EPA (NON CALIFORNIA)

PLATE, ROUTING 2
