2007 Yamaha TW200 CA (TW200W1C) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2007 Yamaha TW200 CA (TW200W1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

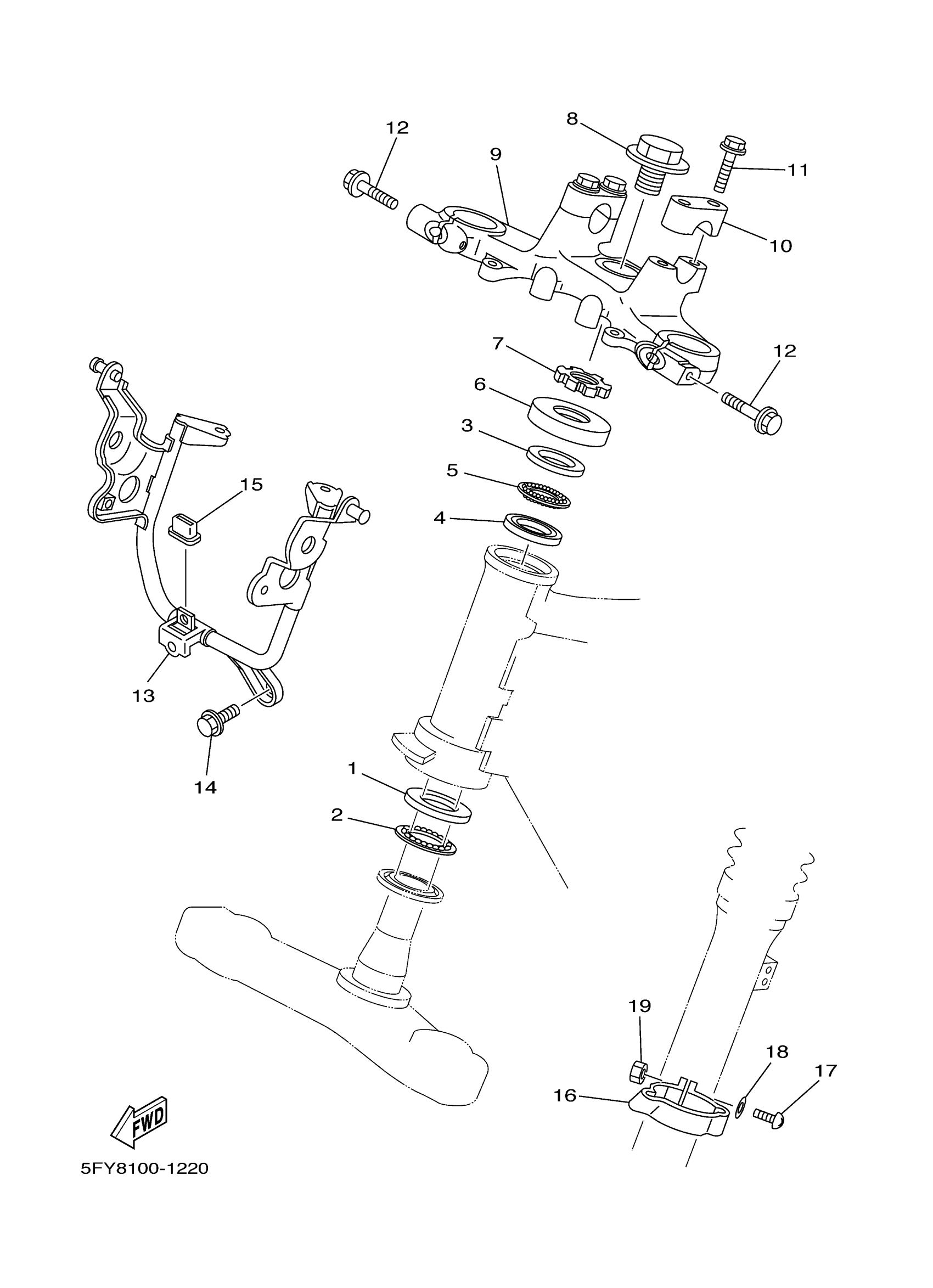

2007 Yamaha TW200 CA (TW200W1C) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

2

RETAINER, BALL BEARING

B6E-2341E-00-00

1

$11.88

In stock

3

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

RETAINER, BALL BEARING

BP2-2341E-00-00

1

$12.27

In stock

6

COVER, BALL RACE 2

36X-23416-00-00

1

$10.35

In stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

9

CROWN, HANDLE

2JX-23435-10-35

1

$110.55

In stock

10

HOLDER, HANDLE UPPER

1E6-23441-10-35

1

$20.51

In stock

11

BOLT, FLANGE(4FM)

95814-08035-00

1

$6.68

In stock

12

BOLT, FLANGE(3XF)

95024-08050-00

1

$6.55

In stock

13

STAY, HEADLIGHT

5FY-23174-00-00

1

$91.26

In stock

14

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

15

DAMPER

30X-23445-00-00

1

$8.77

In stock

16

HOLDER, CABLE

34X-23317-00-00

—

$6.52

In stock

17

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

18

WASHER(1RW)

92907-05600-00

—
Out of stock

19

NUT, HEXAGON

95317-05600-00

—

$1.10

In stock
