2007 Yamaha TW200 CA (TW200W1C) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2007 Yamaha TW200 CA (TW200W1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

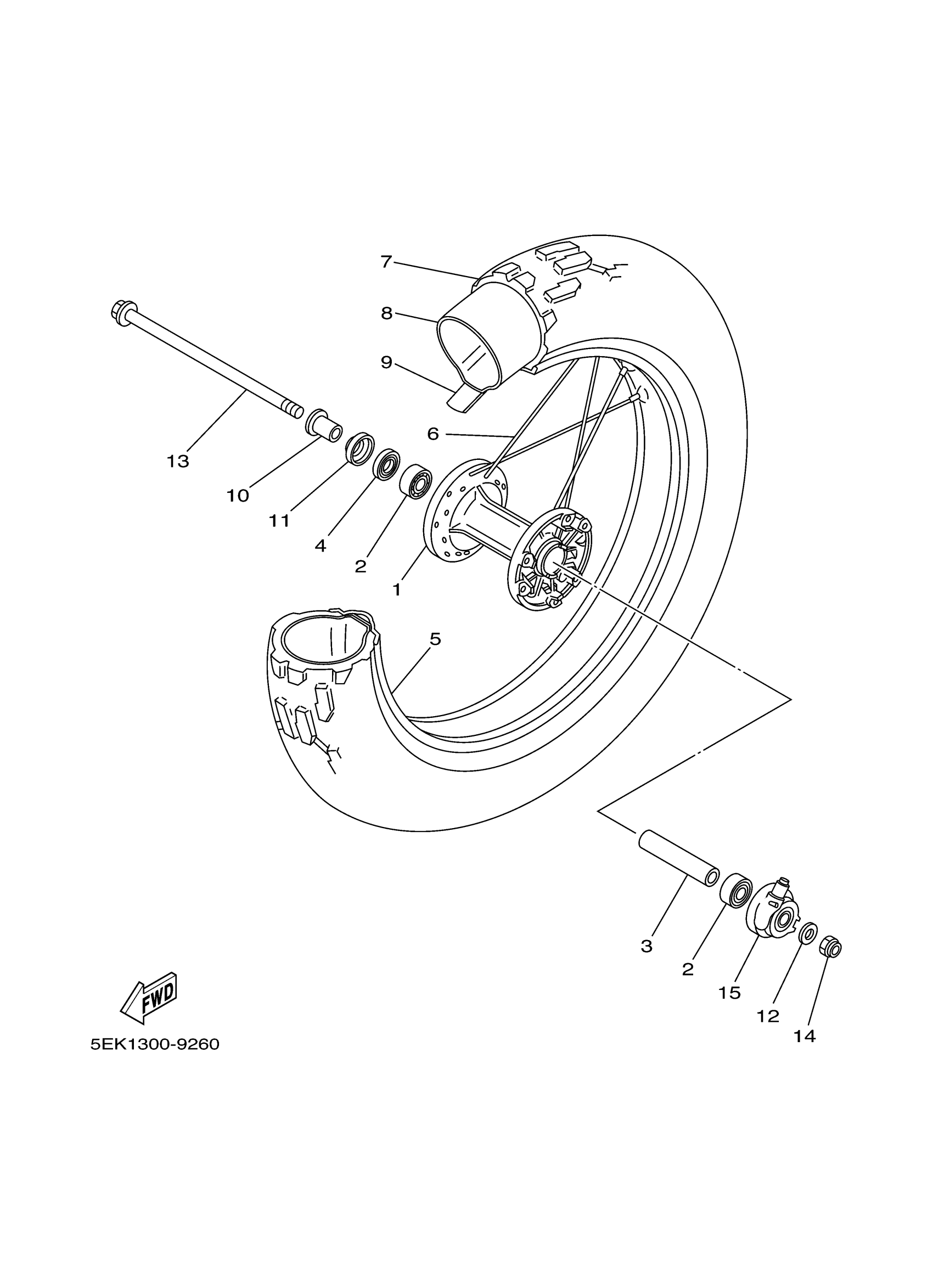

2007 Yamaha TW200 CA (TW200W1C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

5EK-25111-00-00

1

$248.77

In stock

2

BEARING

93306-20203-00

1

$22.98

In stock

3

SPACER(23A)

90560-15312-00

1

$34.42

In stock

4

OIL SEAL (23X)

93102-20281-00

1

$11.35

In stock

5

RIM (2.50-18)

94425-18603-00

1
Out of stock

6

SPOKE SET, REAR

4TP-25304-10-00

—

$87.32

In stock

7

1

$169.99

In stock

8

TUBE (5A8)

94212-18188-00

1

$32.23

In stock

9

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

10

COLLAR (1W1)

90387-15600-00

1

$15.34

In stock

11

COVER, HUB DUST

322-25118-00-00

1

$16.17

In stock

12

WASHER PLATE (3L6)

90201-14740-00

1

$6.18

In stock

13

AXLE, WHEEL

2JX-25181-00-00

1

$70.65

In stock

14

NUT, U(4JT)

95617-14100-00

—

$9.00

In stock

15

GEAR UNIT ASSY

5EK-25190-00-00

—

$88.69

In stock
