2007 Yamaha TW200 CA (TW200W1C) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2007 Yamaha TW200 CA (TW200W1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

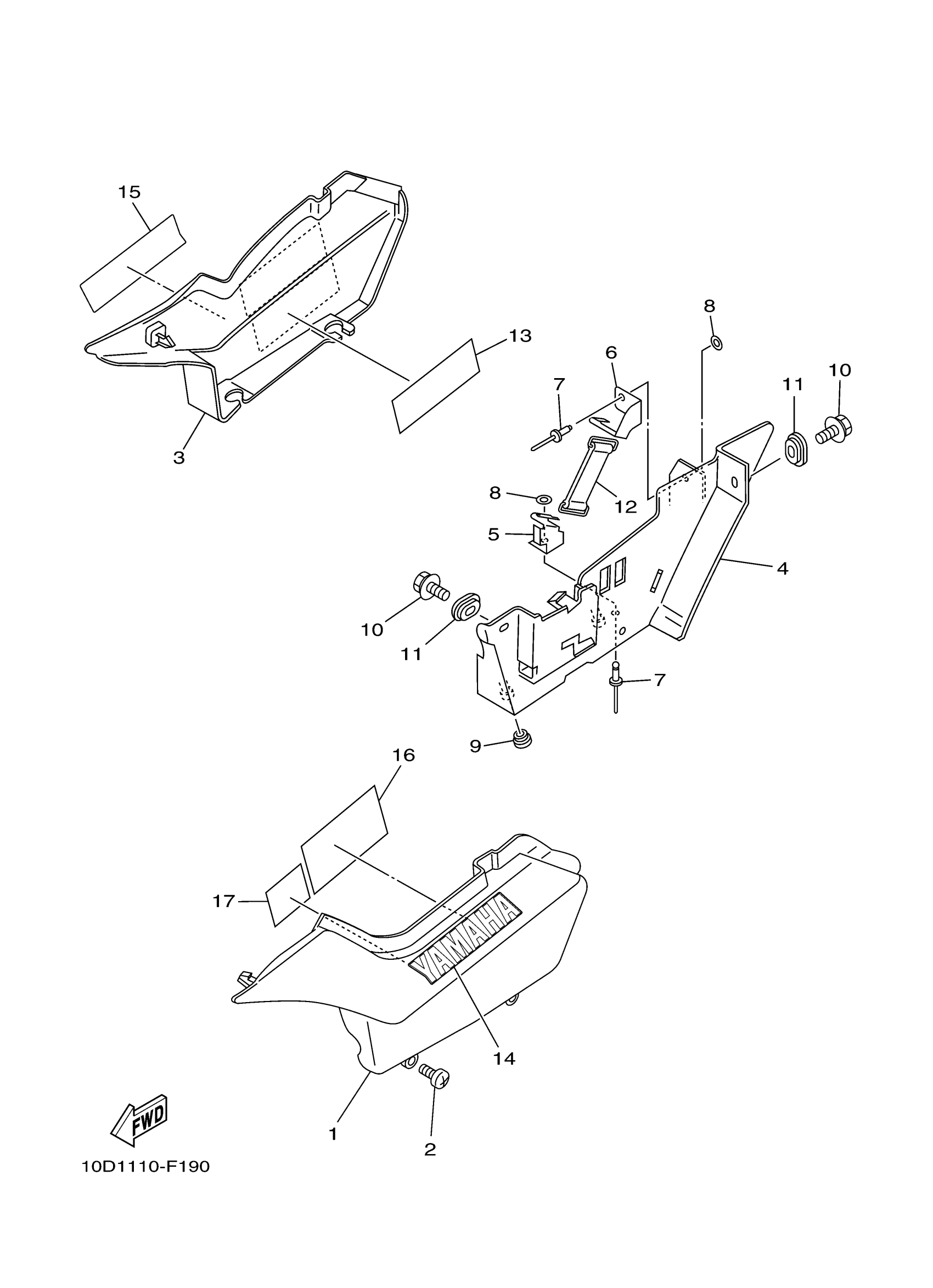

2007 Yamaha TW200 CA (TW200W1C) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1 (LOW GLOSS BLACK) (PURPLISH WHITE SOLID 1)

10D-21711-00-0X

1
Out of stock

2

SCREW, BINDING (10V)

90154-05013-00

1
Out of stock

3

COVER, SIDE 2 (LOW GLOSS BLACK) (PURPLISH WHITE SOLID 1)

10D-21721-00-0X

1
Out of stock

4

BOX

5EK-2177A-00-00

1

$32.42

In stock

5

BRACKET 1

5EK-2175T-00-00

1

$14.32

In stock

6

BRACKET 2

5EK-2175U-00-00

—

$13.51

In stock

7

RIVET,BLIND

90267-40080-00

1
Out of stock

8

WASHER, PLATE(26H)

90201-044H9-00

1

$6.68

In stock

9

GROMMET

90480-13014-00

1

$6.85

In stock

10

BOLT, WITH WASHER

90119-06152-00

1

$2.74

In stock

11

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

12

BAND, BATTERY

116-82131-00-00

1
Out of stock

13

EMBLEM

3JL-28177-A0-00

1
Out of stock

14

EMBLEM, YAMAHA

10D-2153E-00-00

1
Out of stock

15

EMBLEM, YAMAHA

10D-2153E-00-00

1
Out of stock

16

PLATE, EPA 2 (CALIFORNIA)

10D-2179N-00-00

1
Out of stock

16

PLATE, EPA 1 (NON CALIFORNIA)

10D-2179V-00-00

1
Out of stock

17

PLATE, ROUTING 2

4YN-21686-00-00

—

$4.08

In stock
