2007 Yamaha TW200 CA (TW200W1C) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 2007 Yamaha TW200 CA (TW200W1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

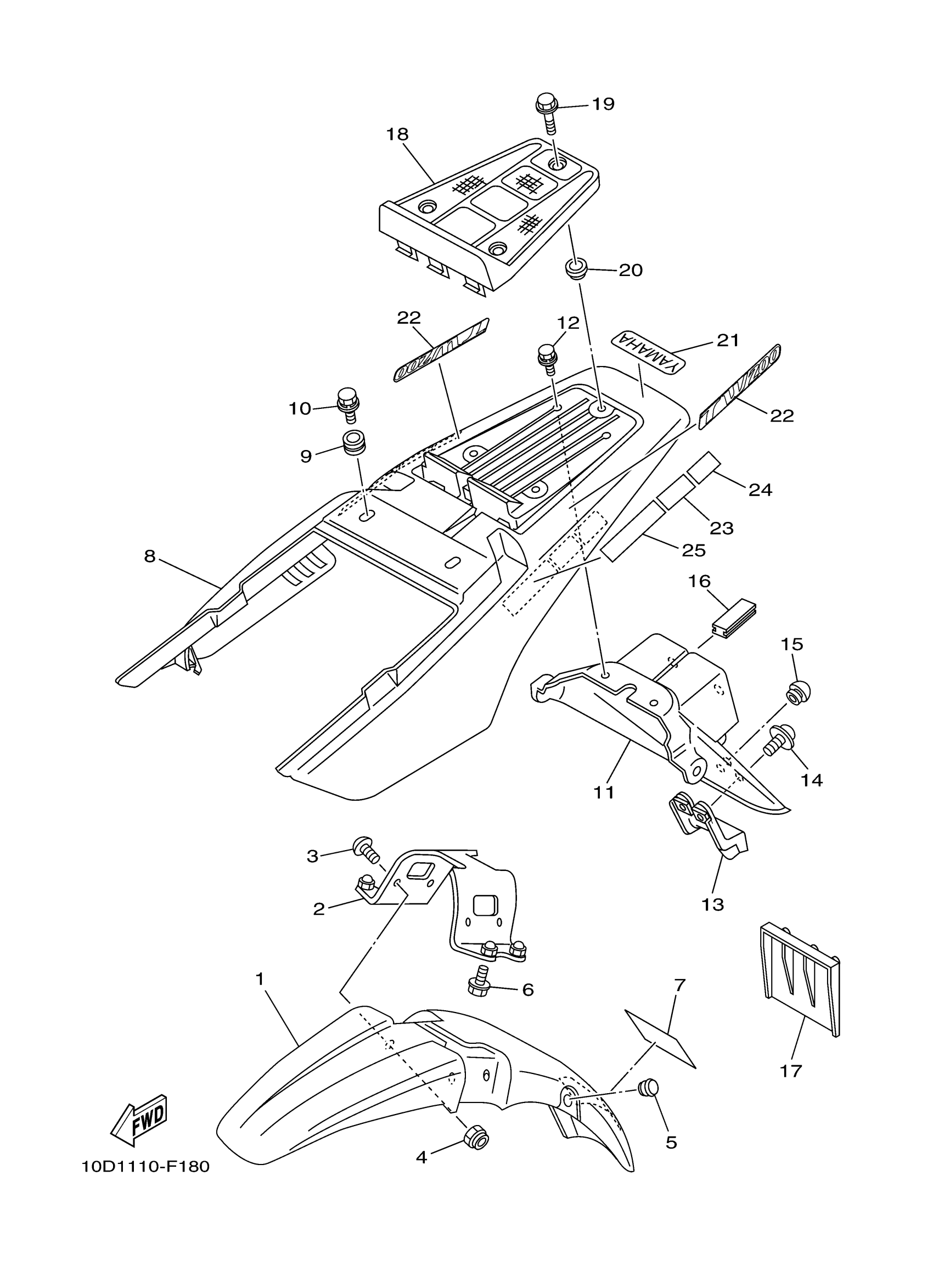

2007 Yamaha TW200 CA (TW200W1C) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

10D-21511-00-00

—
Out of stock

2

BRACKET, FENDER

2JX-21512-00-00

1
Out of stock

3

SCREW, C.R. BINDING (2T4)

90154-05004-00

1
Out of stock

4

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

5

PLUG(2GU)

90338-12192-00

1
Out of stock

6

BOLT, FLANGE

95817-06020-00

1
Out of stock

7

LABEL, TIRE

3XT-21668-A0-00

1
Out of stock

8

FENDER, REAR

10D-21611-00-00

1
Out of stock

9

DAMPER, SIDE COVER (437)

90480-12053-00

1
Out of stock

10

BOLT, WITH WASHER (10V)

90119-06063-00

1
Out of stock

11

BRACKET, LICENSE

2JX-21685-01-00

1
Out of stock

12

BOLT, WITH WASHER

90119-06152-00

1
Out of stock

13

BRACKET, REFLECTOR

2JX-21641-00-00

—
Out of stock

14

SCREW, WITH WASHER(52W)

90159-05121-00

1
Out of stock

15

PLUG

90338-07018-00

1
Out of stock

16

SEAL

2JX-21669-00-00

—
Out of stock

17

FLAP

5VC-21691-00-00

—
Out of stock

18

COVER, REAR FENDER

2JX-21651-10-00

—
Out of stock

19

BOLT, FLANGE

95024-06014-00

—
Out of stock

20

COLLAR (8G8)

90387-06681-00

—
Out of stock

21

EMBLEM, YAMAHA

99241-00080-00

—
Out of stock

22

EMBLEM 1

10D-2163G-09-00

—
Out of stock

23

LABEL 1

3MX-24875-A0-00

—
Out of stock

24

LABEL, CAUTION

3TB-24877-A1-00

—
Out of stock

25

LABEL, CAUTION

3JJ-28446-A2-00

—
Out of stock
