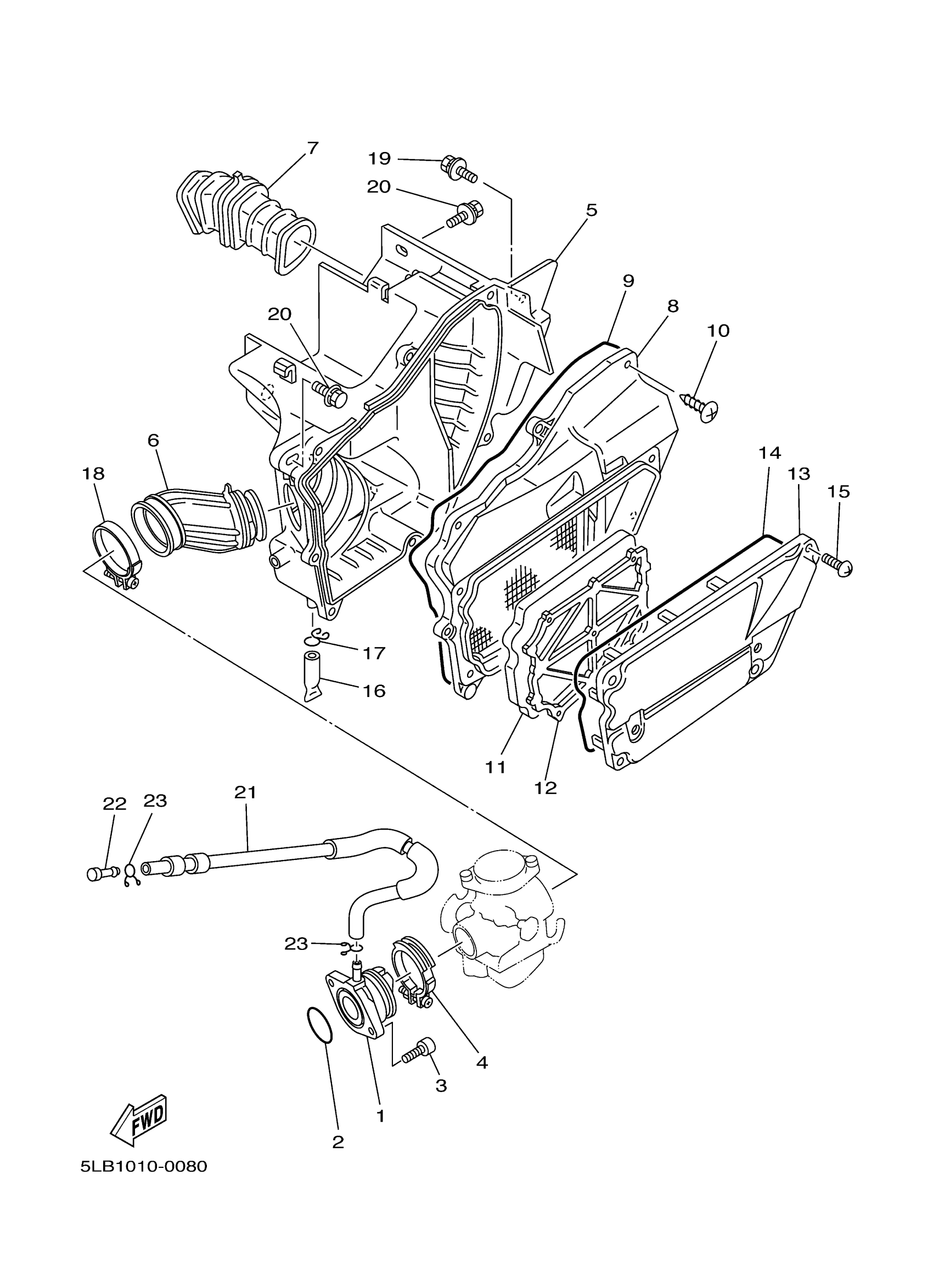

Yamaha TW200W1C (TW200 CA) 10D2 2007 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5LB-13586-02-00

$82.99

2

O-RING (16G)

93210-35537-00

$14.49

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

HOSE CLAMP ASSY(1MX)

90450-44046-00

$16.99

5

CASE, AIR CLEANER 1

2JX-14411-02-00

Unavailable

6

JOINT, AIR CLEANER 1

5LB-14453-11-00

$29.99

7

DUCT

2JL-14437-00-00

Unavailable

8

CAP, CLEANER CASE 1

2JX-14412-00-00

Unavailable

9

SEAL

1VJ-14462-00-00

$18.49

10

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

11

ELEMENT, AIR CLEANER

2JX-14451-00-00

$8.99

12

GUIDE

2JX-14458-00-00

$35.99

13

CAP, CLEANER CASE 2

2JX-14422-00-00

$84.99

14

SEAL

1VJ-14462-00-00

$18.49

15

SCREW, BINDING (8J0)

90154-05005-00

$4.73

16

PIPE, DRAIN

34X-1443E-00-00

Unavailable

17

CLIP(1JH)

90467-11106-00

Unavailable

18

CLAMP HOSE 304144550000

90460-51059-00

Unavailable

19

BOLT, WITH WASHER

90119-06152-00

Unavailable

20

BOLT, WITH WASHER (10V)

90119-06063-00

Unavailable

21

PIPE, INTAKE MANIFOLD

5LB-13584-00-00

Unavailable

22

PLUG

90338-08007-00

Unavailable

23

CLIP

90467-100A1-00

Unavailable
