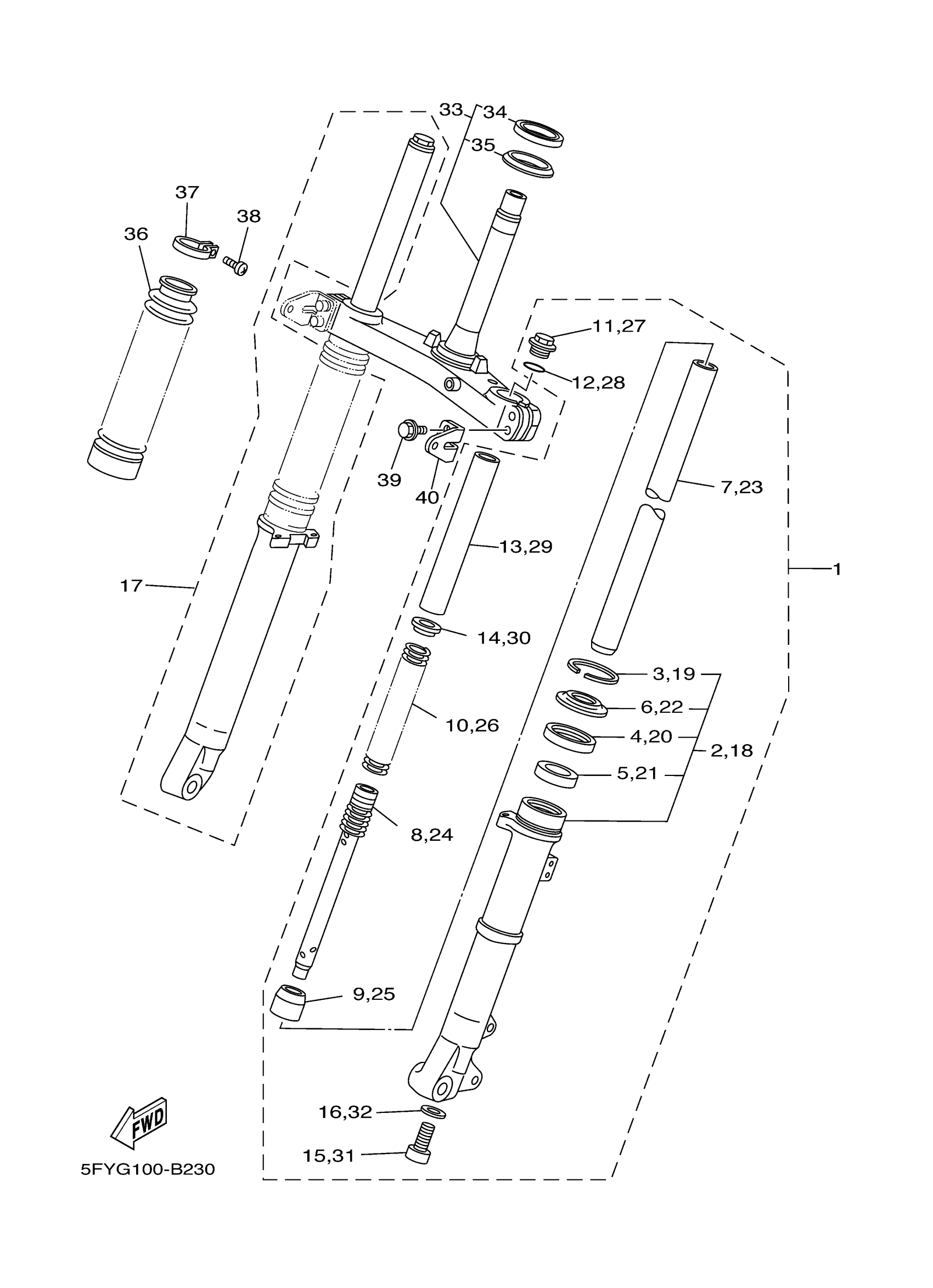

Yamaha TW200W1C (TW200 CA) 10D2 2007 FRONT FORK Diagram
#
Description
Price
2
TUBE, OUTER (LEFT)
5RS-23126-10-00
Unavailable
8
CYLINDER COMP., FRONT FORK
2JX-23170-00-00
Unavailable
13
SPACER
22U-23118-01-00
Unavailable
16
GASKET
509-23158-L0-00
Unavailable
17
FRONT FORK ASSY (R.H)
5FY-23103-20-00
Unavailable
18
TUBE, OUTER
5RS-23136-10-00
Unavailable
24
CYLINDER COMP., FRONT FORK
2JX-23170-00-00
Unavailable
29
SPACER
22U-23118-01-00
Unavailable
32
GASKET
509-23158-L0-00
Unavailable
33
UNDER BRACKET COMP.
5LB-23340-02-00
Unavailable
34
RACE, BALL 1
B6E-23411-00-00
Unavailable
35
SEAL, DUST
164-23462-00-00
Unavailable
36
BOOT
4CS-23191-20-00
Unavailable
37
BAND, BOOT
2K5-23192-00-00
Unavailable
38
SCREW, BOOT BAND
1W4-23194-L0-00
Unavailable
39
BOLT 1
5RS-23346-00-00
Unavailable
40
BRACKET, REFLECTOR 1
49R-85112-00-00
Unavailable
