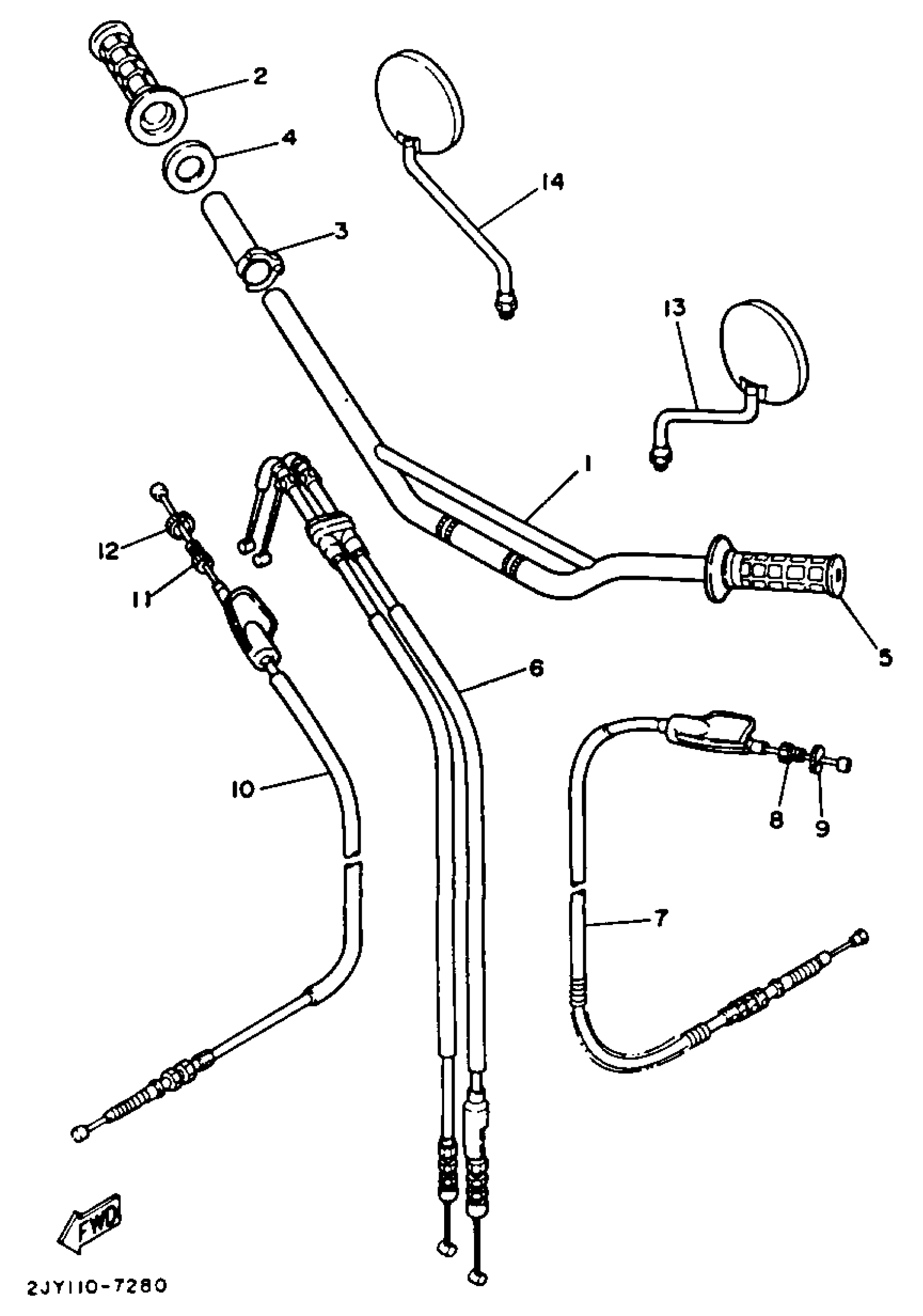

Yamaha TW200UC (TRAILWAY CA) 1988 HANDLEBAR CABLE Diagram

#

Description

Price

1

HANDLEBAR

5LB-26111-00-00

$66.99

2

GRIP RH

33G-26242-01-00

Unavailable

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

$28.99

4

RING, LEAF

3Y1-26249-00-00

$9.99

5

GRIP

33G-26241-01-00

Unavailable

6

THROTTLE CABLE ASSY

2JX-26302-01-00

$94.99

7

CABLE, CLUTCH

1RL-26335-00-00

Unavailable

8

BOLT

90123-08002-00

$10.49

9

NUT

90179-08030-00

$5.49

10

CABLE, BRAKE

2JX-26341-10-00

$61.99

11

BOLT

90123-08002-00

$10.49

12

NUT

90179-08030-00

$5.49

13

MIRROR ASSY., 2

5Y1-26290-11-00

$75.99

14

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$53.99
