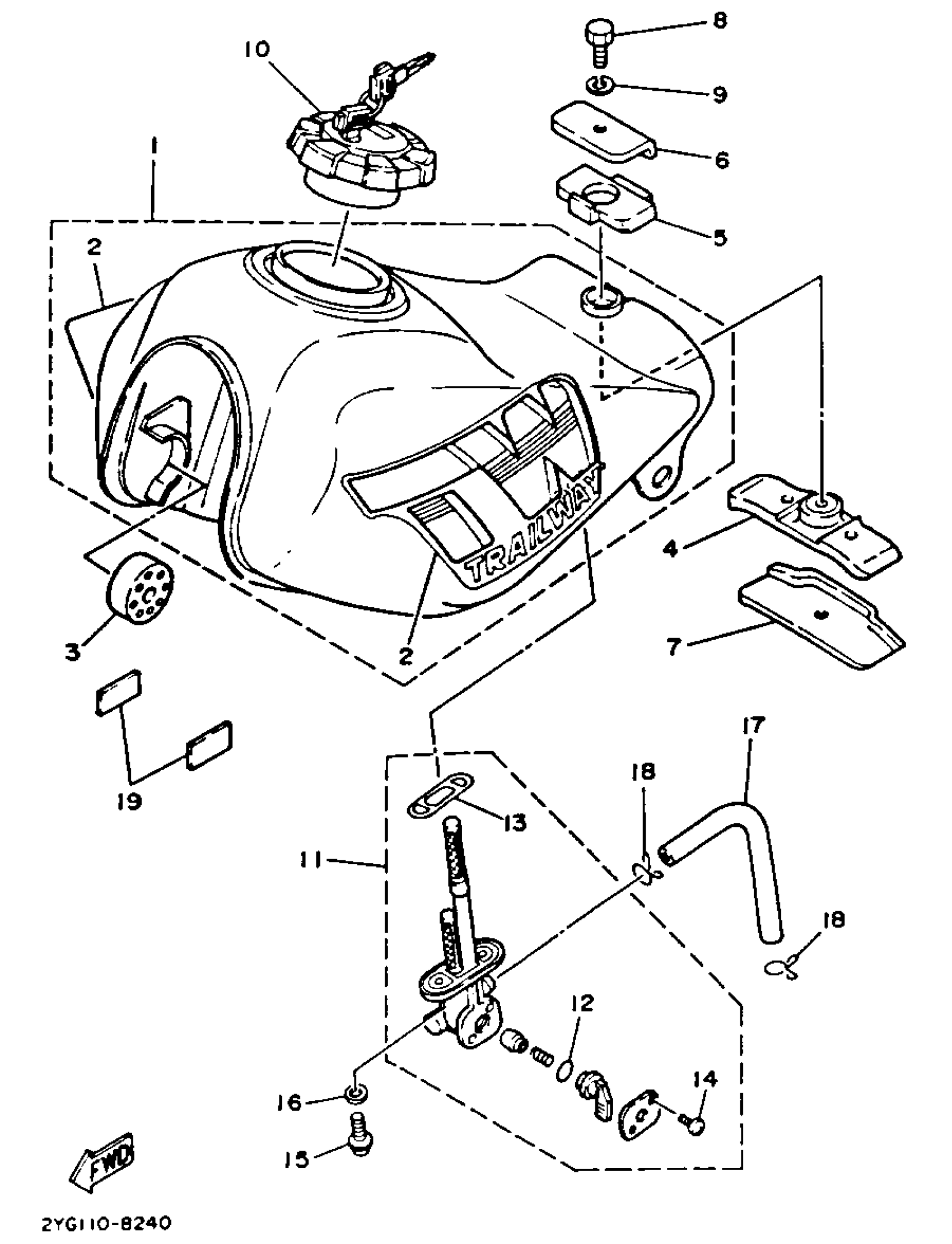

Yamaha TW200UC (TRAILWAY CA) 1988 FUEL TANK NON CALIFORNIA MODEL Diagram

#

Description
Price

1

FUEL TANK COMP.

2JY-Y2410-10-W9

Unavailable

1

FUEL TANK COMP.

2JY-Y2410-T0-01

Unavailable

2

. GRAPHIC SET (CHAPPY RED)

2YG-24240-00-00

Unavailable

2

. GRAPHIC SET (YAMAHA BLACK) (CHAPPY RED)

2YG-24240-10-00

Unavailable

3

DAMPER, LOCATING 1

4L0-24181-00-00

$9.99

4

DAMPER, LOCATING 2

30X-24182-01-00

$20.99

5

DAMPER, LOCATING 3

30X-24183-01-00

$7.99

6

WASHER, SPECIAL

30X-24186-01-00

$7.99

7

WASHER, SPECIAL

30X-24187-00-00

$24.99

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, SPRING

92995-06100-00

Unavailable

10

CAP ASSY

48Y-24602-00-00

Unavailable

11

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

12

O-RING

4X8-24534-00-00

$13.49

13

O-RING

4X8-24512-00-00

$8.99

14

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

15

SCREW 256241430000

90149-06011-00

Unavailable

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

HOSE (L200)

90445-10752-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

DAMPER, LOCATING 1

18A-21778-00-00

Unavailable
