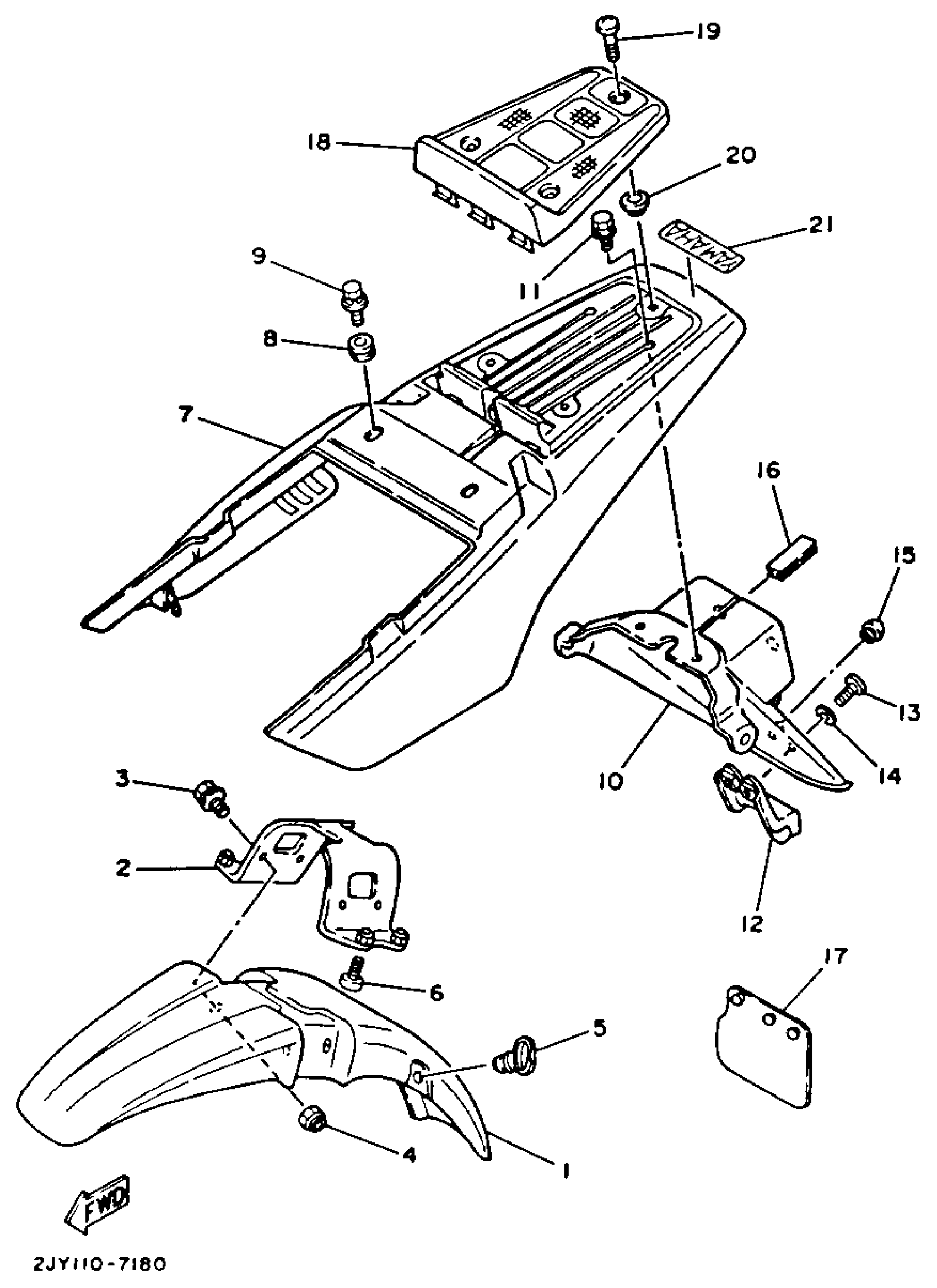

Yamaha TW200UC (TRAILWAY CA) 1988 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2JX-21511-00-00

Unavailable

1

FENDER, FRONT

2YG-21511-00-00

$83.99

2

BRACKET, FENDER

2JX-21512-00-00

$67.99

3

BOLT, WITH WASHER

90119-05071-00

$8.49

4

NUT, S/L FLANGE

95607-05200-00

$9.49

5

GUIDE, WIRE

1A8-21518-00-00

$7.99

6

BOLT,SOCKET HEAD

91314-06020-00

$1.49

7

FENDER, REAR

2JX-21611-00-00

Unavailable

7

FENDER, REAR

2YG-21611-00-00

$150.99

8

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

9

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

10

BRACKET, LICENSE

2JX-21685-01-00

$62.99

11

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

12

BRACKET, REFLECTOR

2JX-21641-00-00

Unavailable

13

SCREW, PAN

98517-05012-00

$4.73

14

WASHER(1RW)

92907-05600-00

Unavailable

15

PLUG

90338-07018-00

Unavailable

16

SEAL

2JX-21669-00-00

Unavailable

17

FLAP

34X-21691-00-00

Unavailable

18

COVER, REAR FENDER

2JX-21651-00-00

Unavailable

19

SCREW, BIND(J39)

98980-06014-00

Unavailable

20

COLLAR (8G8)

90387-06681-00

Unavailable

21

EMBLEM,YAMAHA(3BB)

99242-00020-00

Unavailable
