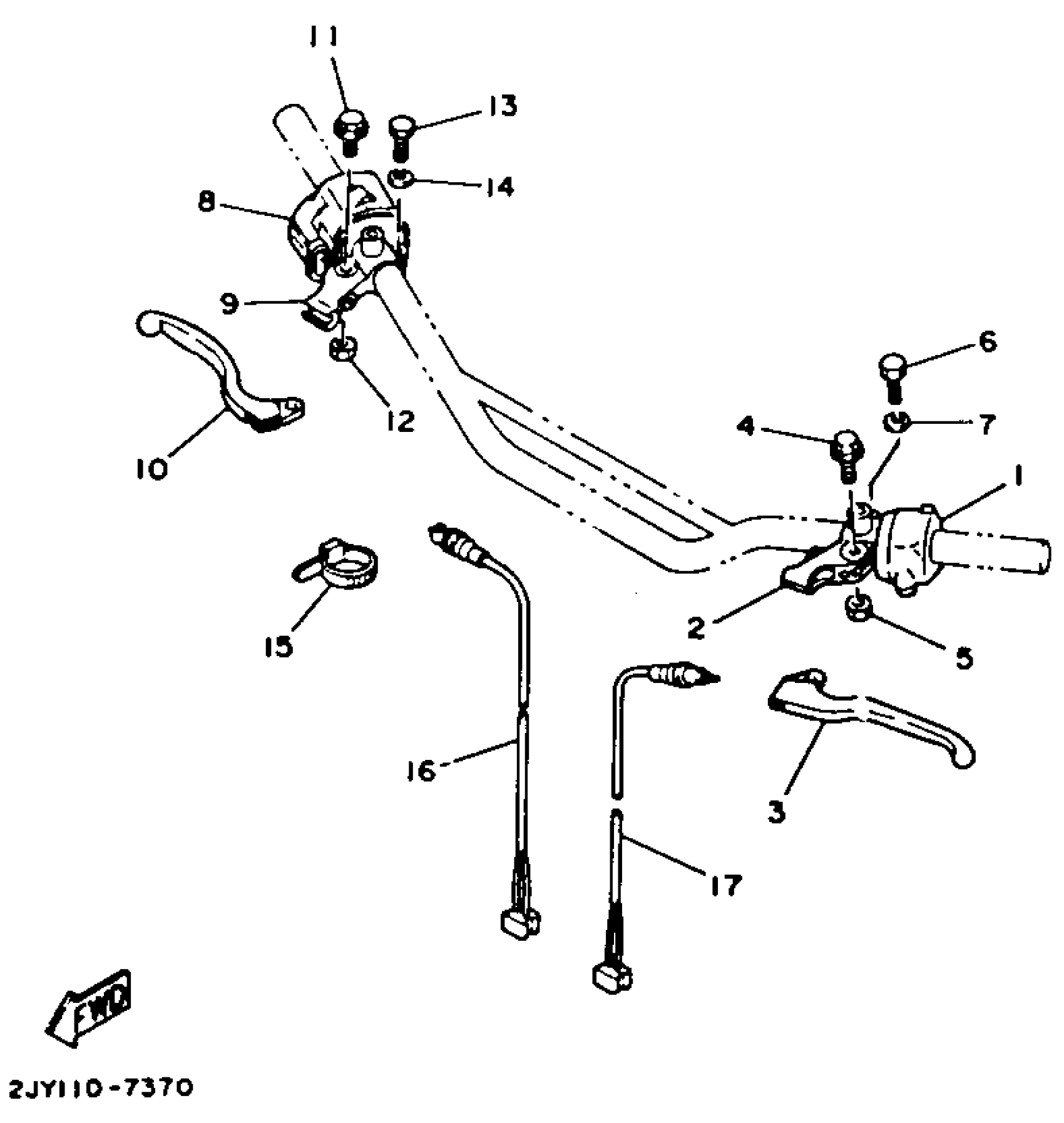

Yamaha TW200TC (TRAILWAY) 1987 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

2JX-83973-01-00

Unavailable

2

HOLDER, LEVER 1

3Y6-82911-00-00

$45.04

3

LEVER 1

23X-83912-02-00

$20.45

4

BOLT(1FG)

90109-06798-00

$5.97

5

NUT, SELF-LOCKING

95617-06100-00

$2.29

6

BOLT, HEXAGON

97007-06022-00

Unavailable

7

WASHER, SPRING

92907-06100-00

$1.49

8

SWITCH, HANDLE 1

2JX-83976-00-00

Unavailable

9

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

Unavailable

10

LEVER R

23X-83922-01-00

$20.72

11

BOLT(1FG)

90109-06798-00

$5.97

12

NUT, SELF-LOCKING

95617-06100-00

$2.29

13

BOLT, HEXAGON

97007-06022-00

Unavailable

14

WASHER, SPRING

92907-06100-00

$1.49

15

BAND, SWITCH CORD

437-83936-01-00

$6.12

16

SWITCH

3Y6-82917-00-00

Unavailable

17

SWITCH

3Y6-82917-00-00

Unavailable
