Description

Price

1

RACE, BALL 2

B6E-23412-00-00

$13.49

2

RETAINER, BALL BEARING

B6E-2341E-00-00

$14.99

3

RACE, BALL 1

BP2-23411-00-00

$11.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

RETAINER, BALL BEARING

BP2-2341E-00-00

$13.99

6

COVER, BALL RACE 2

36X-23416-00-00

$12.99

7

NUT

90179-25004-00

$24.99

8

BOLT (2A2)

90105-14102-00

$5.60

9

CROWN, HANDLE

2JX-23435-10-00

$83.99

10

HOLDER, HANDLE UPPER

1E6-23441-10-35

$23.99

11

BOLT, FLANGE(4FM)

95814-08035-00

$8.49

12

BOLT, FLANGE(3XF)

95024-08050-00

$8.49

13

STAY, HEADLIGHT

5FY-23174-00-00

$98.99

14

BOLT, FLANGE

95817-06012-00

$1.43

15

DAMPER

30X-23445-00-00

$9.99

16

HOLDER, CABLE

34X-23317-00-00

Unavailable

17

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

18

WASHER(1RW)

92907-05600-00

Unavailable

19

NUT, HEXAGON

95317-05600-00

Unavailable

20

STEERING BEARING KIT

BNA-W000B-00-00

Unavailable

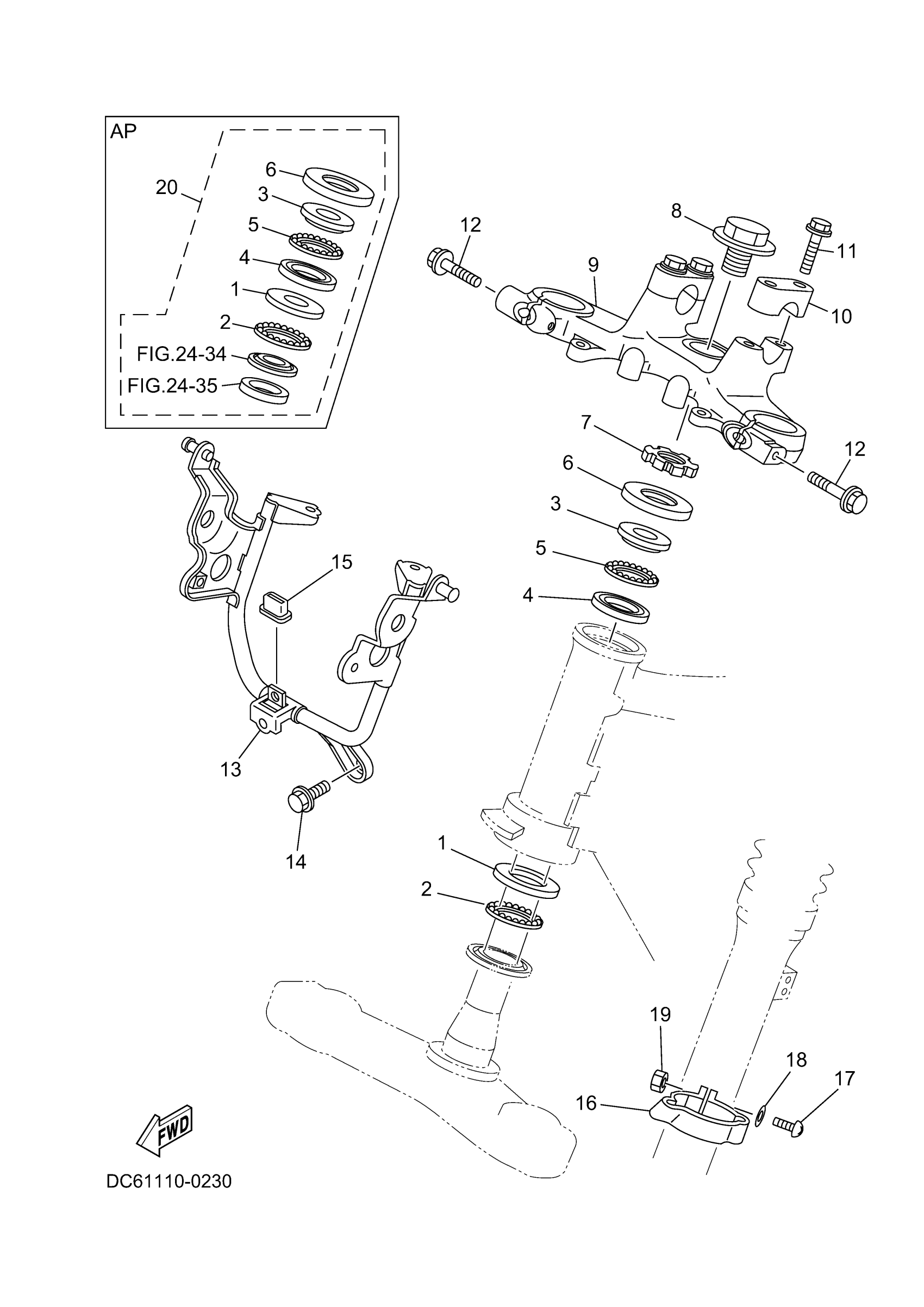

Yamaha TW200T2C (TW200) DC69 2026 STEERING Diagram

RACE, BALL 2

RETAINER, BALL BEARING

RACE, BALL 1

RACE, BALL 2

RETAINER, BALL BEARING

COVER, BALL RACE 2

NUT

BOLT (2A2)

CROWN, HANDLE

HOLDER, HANDLE UPPER

BOLT, FLANGE(4FM)

BOLT, FLANGE(3XF)

STAY, HEADLIGHT

BOLT, FLANGE

DAMPER

HOLDER, CABLE

SCREW, PAN HEAD(4MY)

WASHER(1RW)

NUT, HEXAGON

STEERING BEARING KIT
