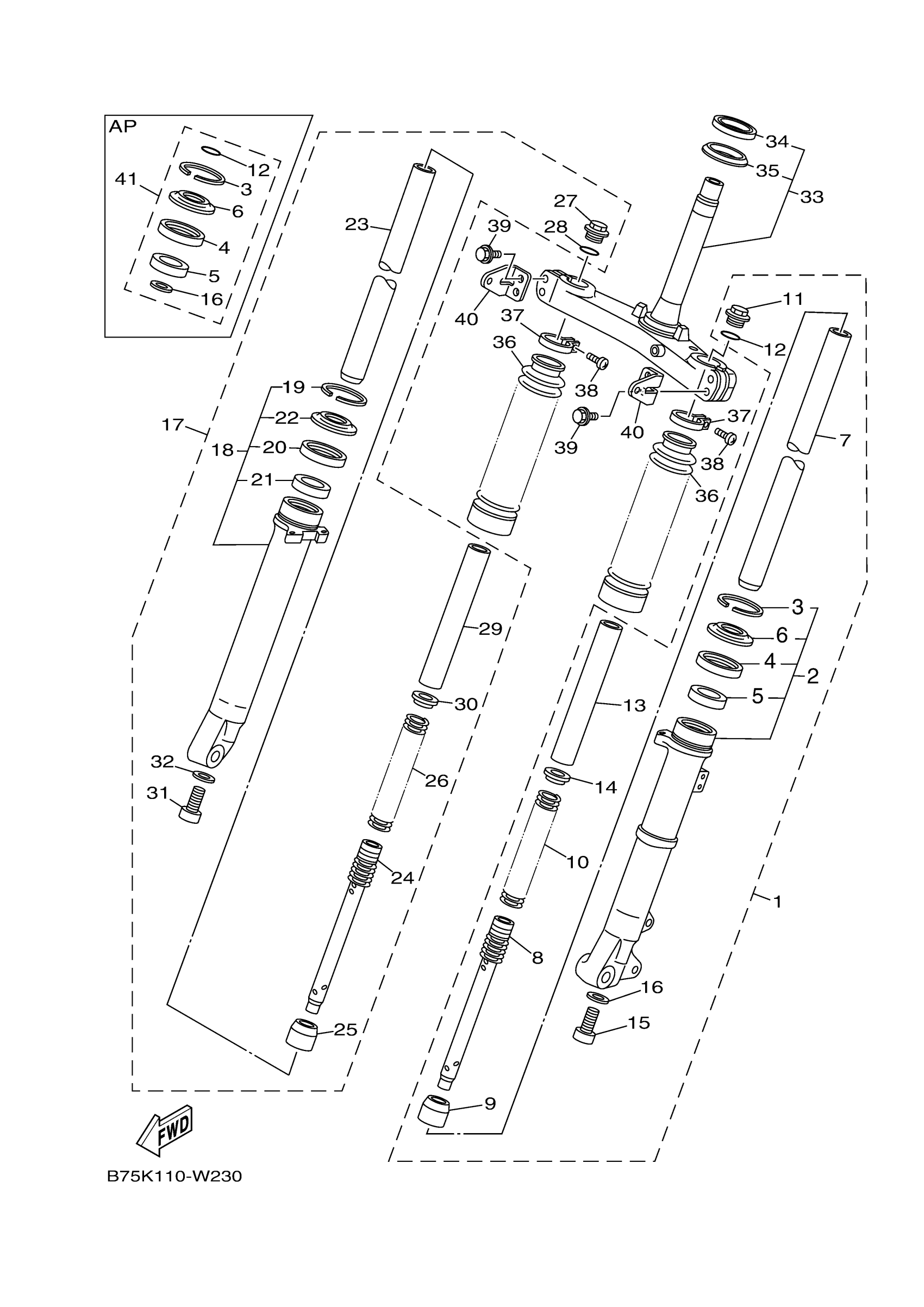

Yamaha TW200T2C (TW200) DC69 2026 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5FY-23102-22-00

Unavailable

2

. TUBE, OUTER (LH)

5RS-23126-11-00

Unavailable

3

RING, SNAP

22W-23153-L0-00

$8.99

4

OIL SEAL

22W-23145-L0-00

$19.99

5

METAL, SLIDE 1

51Y-23125-00-00

$29.99

6

SEAL, DUST

54G-23144-01-00

$9.99

7

INNER TUBE COMP.1

2JX-23110-00-00

$276.99

8

CYLINDER COMP., FRONT FORK

2JX-23170-00-00

Unavailable

9

SPINDLE, TAPER

3R6-23173-L0-00

$17.49

10

SPRING, FRONT FORK

2JX-23141-00-00

$38.99

11

BOLT, CAP

2JN-23111-00-00

$43.99

12

GASKET

3J2-23114-01-00

$1.72

13

SPACER

22U-23118-01-00

Unavailable

14

WASHER, SPRING UPPER

3DM-23149-10-00

$9.99

15

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

16

GASKET

509-23158-L0-00

Unavailable

17

FRONT FORK ASSY (R.H)

5FY-23103-22-00

Unavailable

18

. TUBE, OUTER 2

5RS-23136-11-00

Unavailable

19

RING, SNAP

22W-23153-L0-00

$8.99

20

OIL SEAL

22W-23145-L0-00

$19.99

21

METAL, SLIDE 1

51Y-23125-00-00

$29.99

22

SEAL, DUST

54G-23144-01-00

$9.99

23

INNER TUBE COMP.1

2JX-23110-00-00

$276.99

24

CYLINDER COMP., FRONT FORK

2JX-23170-00-00

Unavailable

25

SPINDLE, TAPER

3R6-23173-L0-00

$17.49

26

SPRING, FRONT FORK

2JX-23141-00-00

$38.99

27

BOLT, CAP

2JN-23111-00-00

$43.99

28

GASKET

3J2-23114-01-00

$1.72

29

SPACER

22U-23118-01-00

Unavailable

30

WASHER, SPRING UPPER

3DM-23149-10-00

$9.99

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

32

GASKET

509-23158-L0-00

Unavailable

33

UNDER BRACKET COMP.

5LB-23340-02-00

Unavailable

34

RACE, BALL 1

B6E-23411-00-00

Unavailable

35

SEAL, STEERING

5VC-23462-00-00

Unavailable

36

BOOT

4CS-23191-20-00

Unavailable

37

BAND, BOOT

2K5-23192-00-00

Unavailable

38

SCREW, BOOT BAND

1W4-23194-L0-00

Unavailable

39

BOLT 1

5RS-23346-00-00

Unavailable

40

BRACKET, REFLECTOR 1

49R-85112-00-00

Unavailable

41

FORK SEAL KIT (ONE FORK)

B75-W003B-01-00

Unavailable
