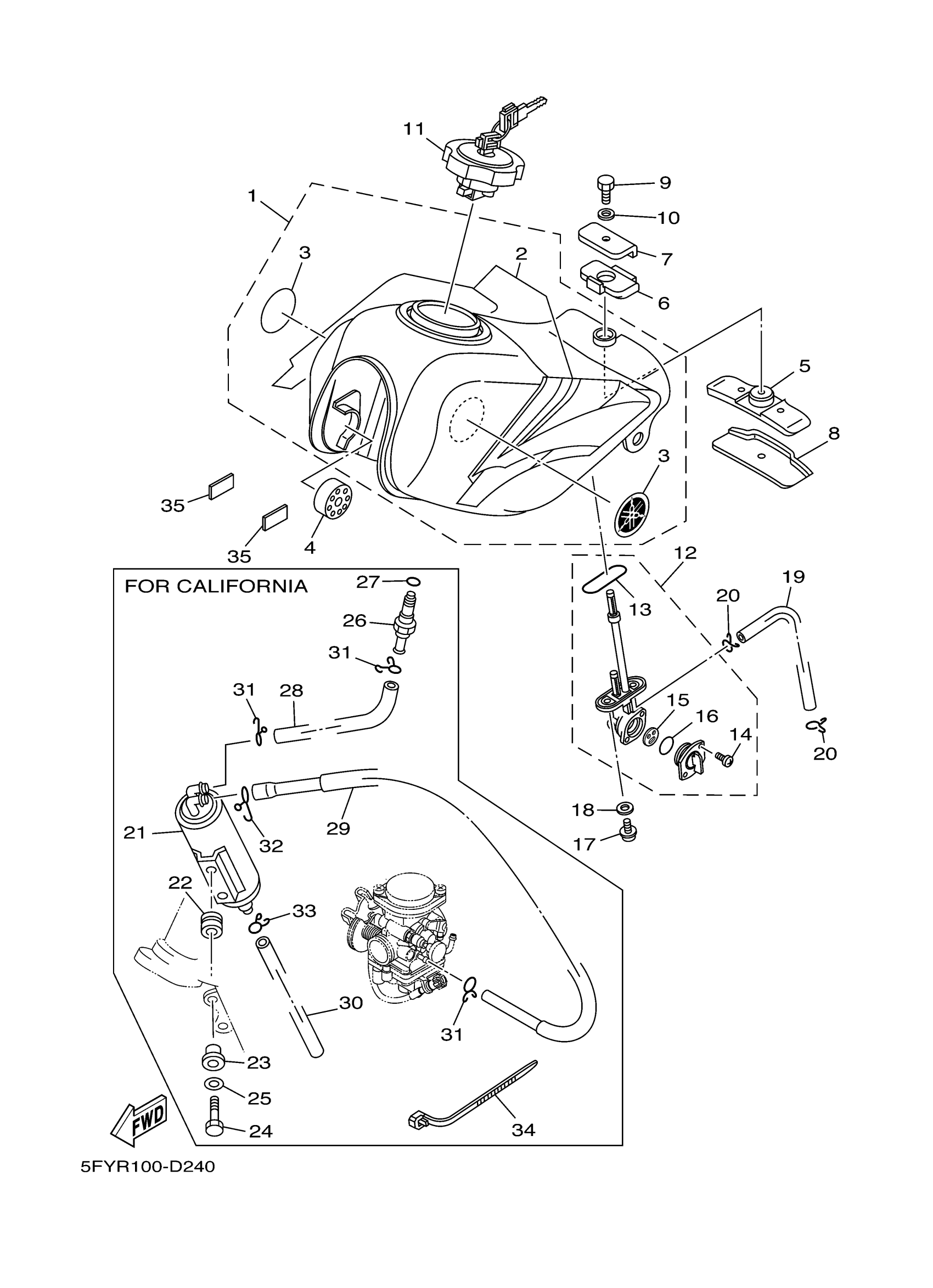

Yamaha TW200T1C (TW200 CA) 5FYS 2005 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (SILVER 3)

5RS-Y2410-10-05

Unavailable

1

FUEL TANK COMP. (SILVER 3)

5RS-Y2410-30-04

Unavailable

2

. GRAPHIC SET

5FY-24240-50-00

Unavailable

3

EMBLEM

5VX-2411B-00-00

$21.59

4

DAMPER, LOCATING 1

4L0-24181-00-00

$8.14

5

DAMPER, LOCATING 2

30X-24182-01-00

$18.12

6

DAMPER, LOCATING 3

30X-24183-01-00

$5.86

7

WASHER, SPECIAL

30X-24186-01-00

$6.29

8

WASHER, SPECIAL

30X-24187-00-00

$21.27

9

BOLT, HEXAGON

97017-06012-00

$2.44

10

WASHER(6TA)

92907-06600-00

$0.73

11

CAP ASSY

11H-24602-10-00

$94.33

11

CAP ASSY

51K-24602-10-00

Unavailable

12

FUEL COCK ASSY 1

23F-24500-20-00

$34.50

13

O-RING

4X8-24512-00-00

$6.25

14

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

15

VALVE PACKING

3AC-24523-00-00

Unavailable

16

SEAL, COCK

3AJ-24534-01-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

HOSE (L200)

90445-10752-00

Unavailable

20

CLIP

90467-090A2-00

Unavailable

21

CANISTER ASSY

4BE-24170-00-00

Unavailable

22

GROMMET(56R)

90480-15342-00

Unavailable

23

COLLAR(52E)

90387-063G3-00

Unavailable

24

BOLT, HEXAGON

97017-06025-00

Unavailable

25

WASHER(6TA)

92907-06600-00

$0.73

26

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

27

O-RING (4G0)

93210-11453-00

Unavailable

28

HOSE (L130)

90445-10017-00

Unavailable

29

HOSE

90445-10045-00

Unavailable

30

.. HOSE (L240)

90445-11M27-00

$22.86

31

CLIP

90467-090A2-00

Unavailable

32

CLIP

90467-100A1-00

Unavailable

33

CLIP(1JH)

90467-11106-00

Unavailable

34

CLAMP(4FM)

90464-15195-00

Unavailable

35

DAMPER, LOCATING 1

18A-21778-00-00

Unavailable
