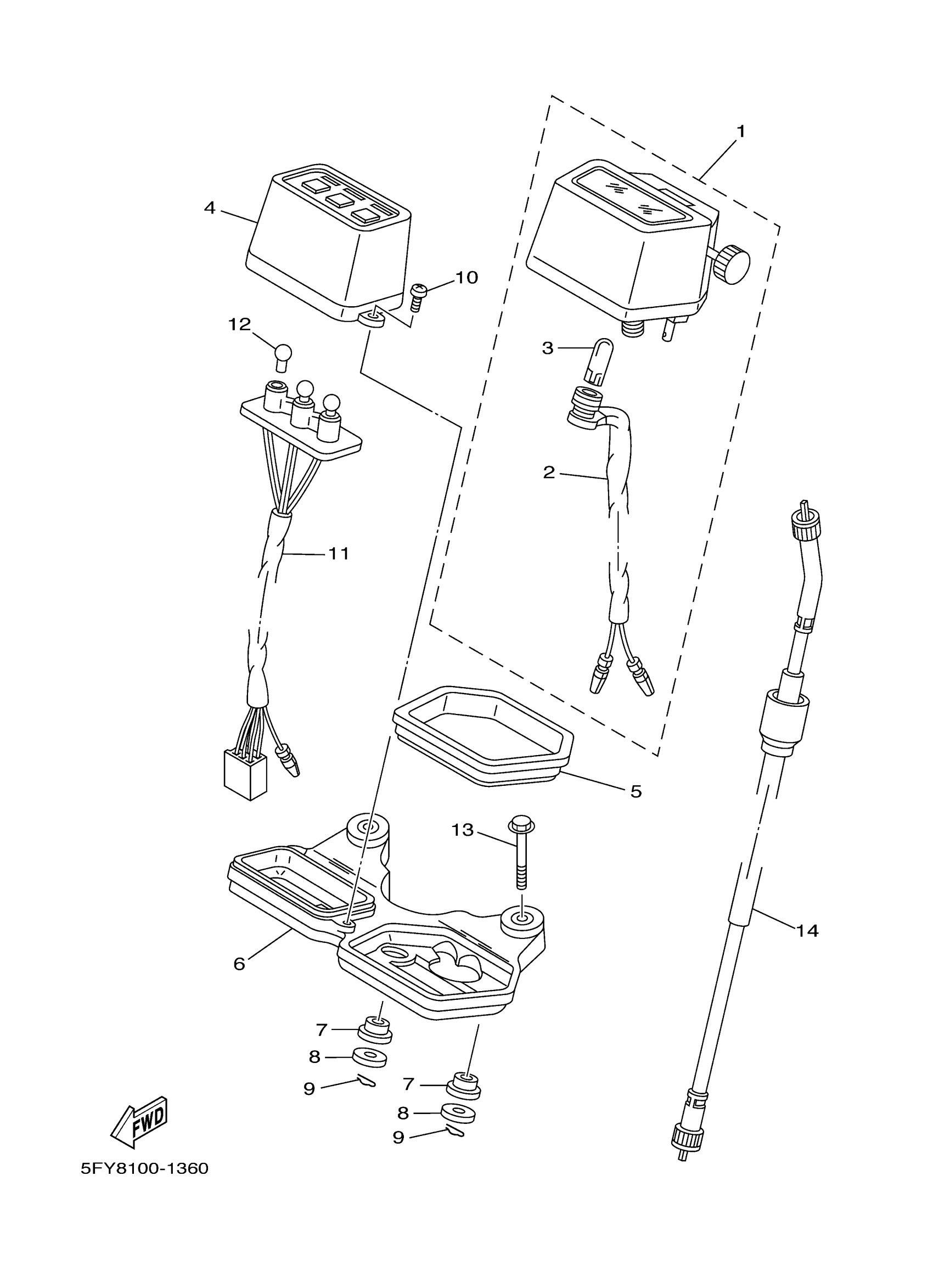

Yamaha TW200SC (TW200 CA) 5FYM 2004 METER Diagram

SPEEDOMETER ASSY

2JX-83510-B1-00

$244.99

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

PILOT BOX, UPPER

5EK-83568-00-00

$76.99

DAMPER

5Y1-83513-00-00

Unavailable

BRACKET, METER

15A-83519-00-00

$53.99

DAMPER 2

1M1-83526-01-00

$4.47

WASHER PLATE 829771780000

90201-05033-00

$10.49

CLIP (156-83525-00)

90468-10050-00

$3.05

SCREW, TAPPING (15A)

90164-04008-00

$9.49

SOCKET CORD ASSY

15A-83509-01-00

$33.99

BULB (12V3.4W)

123-83516-21-XX

Unavailable

BOLT, FLANGE

95817-06040-00

$5.60

SPEEDOMETER CABLE ASSY

5LB-83550-00-00

$37.99
