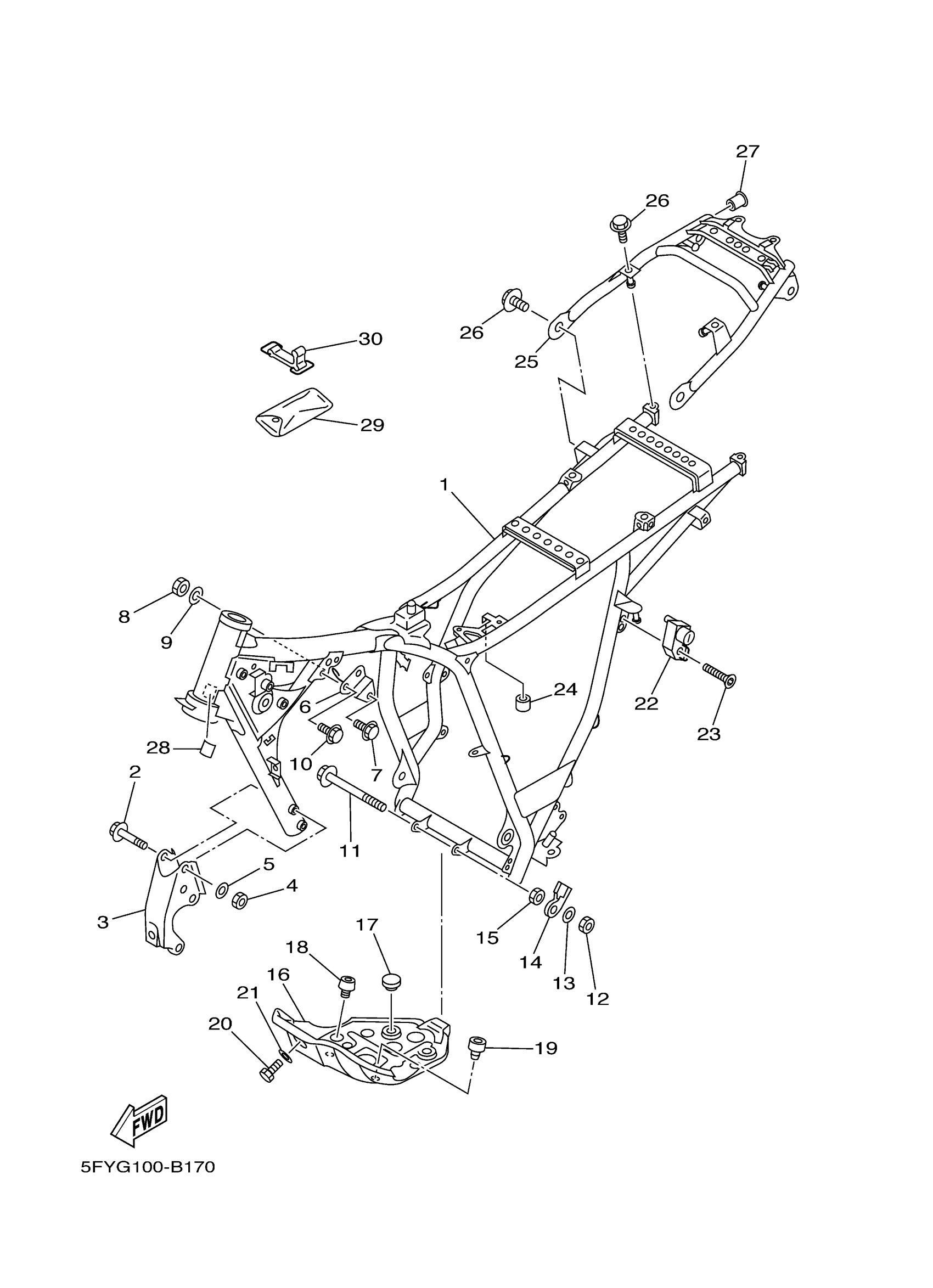

Yamaha TW200SC (TW200 CA) 5FYM 2004 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5FY-21110-40-00

Unavailable

1

FRAME COMP.

5FY-21110-50-00

Unavailable

2

BOLT, WASHER BASED

90105-084A1-00

$10.49

3

STAY, ENGINE 2

1RL-21316-00-WL

Unavailable

3

STAY, ENGINE 3

2JX-21316-01-WL

Unavailable

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

5

WASHER, PLATE (33N)

90201-094G1-00

$9.49

6

STAY, ENGINE 2

5VC-21315-00-00

Unavailable

7

BOLT, FLANGE

95817-08050-00

$2.44

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

9

WASHER, PLATE (33N)

90201-094G1-00

$9.49

10

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

11

BOLT, FLANGE(4EM)

95817-08120-00

$4.99

12

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

13

WASHER, PLATE (33N)

90201-094G1-00

$9.49

14

CLAMP, CABLE

1RL-21337-00-00

Unavailable

15

NUT

90185-08055-00

Unavailable

16

PROTECTOR, ENGINE

1RL-21471-00-35

Unavailable

17

STOPPER, MAIN STAND

128-27114-00-00

Unavailable

18

DAMPER, RUBBER 1

34L-21485-00-00

Unavailable

19

STOPPER, MAIN STAND

4N0-27114-00-00

Unavailable

20

BOLT, HEXAGON

97017-06016-00

Unavailable

21

WASHER(6TA)

92907-06600-00

Unavailable

22

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

23

SCREW (4G1)

90149-06154-00

Unavailable

24

GROMMET (5G0)

90480-12299-00

Unavailable

25

REAR FRAME COMP.

2JX-21190-00-WL

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

PLUG(EU0)

90605-50201-00

Unavailable

28

PROTECTOR

3MA-27491-00-00

Unavailable

29

TOOL KIT

5VC-28100-01-00

Unavailable

30

BAND, BATTERY

3TJ-82131-00-00

Unavailable
