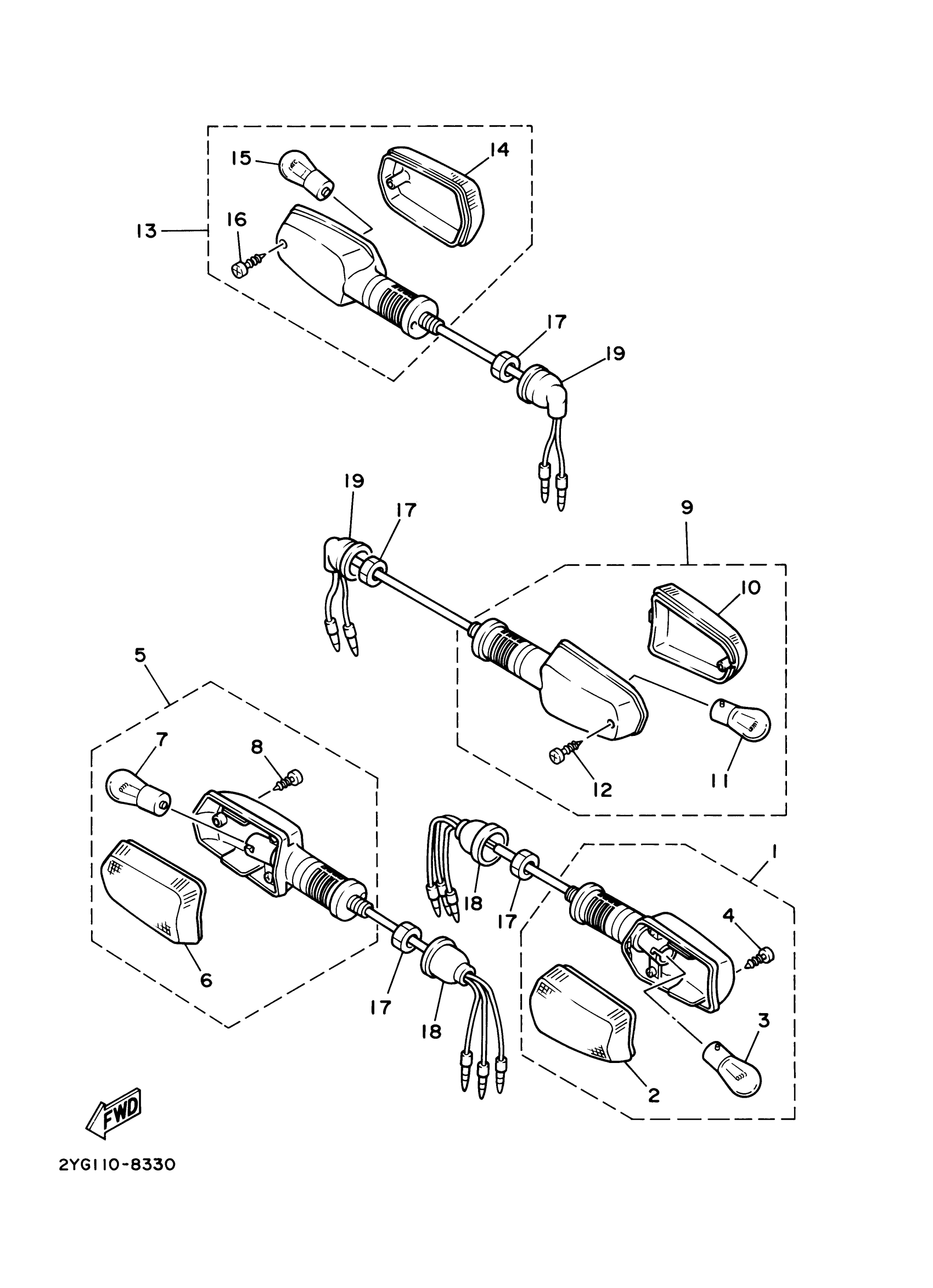

Yamaha TW200SC (TW200 CA) 5FYM 2004 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

$135.99

2

LENS, FLASHER

51L-83332-01-00

Unavailable

3

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

4

SCREW, PAN TAP.2

97707-40520-00

$9.49

5

FRONT FLASHER LIGHT ASSY 2

1UF-83320-00-00

$135.99

6

LENS, FLASHER 2

51L-83342-01-00

$11.99

7

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

8

SCREW, PAN TAP.2

97707-40520-00

$9.49

9

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

10

LENS, FLASHER 2

51L-83342-01-00

$11.99

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

SCREW, PAN TAP.2

97707-40520-00

$9.49

13

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

$134.99

14

LENS, FLASHER

51L-83332-01-00

Unavailable

15

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

16

SCREW, PAN TAP.2

97707-40520-00

$9.49

17

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

18

CAP

10V-83365-01-00

Unavailable

19

CAP

18G-83365-00-00

Unavailable
