Description

Price

1

FENDER, FRONT

3AW-21511-20-00

$83.99

2

BRACKET, FENDER

2JX-21512-00-00

$67.99

3

SCREW, C.R. BINDING (2T4)

90154-05004-00

$4.72

4

NUT, S/L FLANGE

95607-05200-00

$9.49

5

PLUG(2GU)

90338-12192-00

$8.49

6

BOLT, FLANGE

95817-06020-00

$3.81

7

FENDER, REAR

3AW-21611-20-00

$149.99

8

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

9

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

10

BRACKET, LICENSE

2JX-21685-01-00

$62.99

11

BOLT, WITH WASHER

90119-06152-00

$7.49

12

BRACKET, REFLECTOR

2JX-21641-00-00

Unavailable

13

SCREW, WITH WASHER(52W)

90159-05121-00

$4.15

14

PLUG

90338-07018-00

$7.49

15

SEAL

2JX-21669-00-00

$8.99

16

FLAP

5VC-21691-00-00

Unavailable

17

COVER, REAR FENDER

2JX-21651-00-00

Unavailable

18

BOLT, FLANGE

95024-06014-00

Unavailable

19

COLLAR (8G8)

90387-06681-00

Unavailable

20

EMBLEM, YAMAHA

99247-00080-00

Unavailable

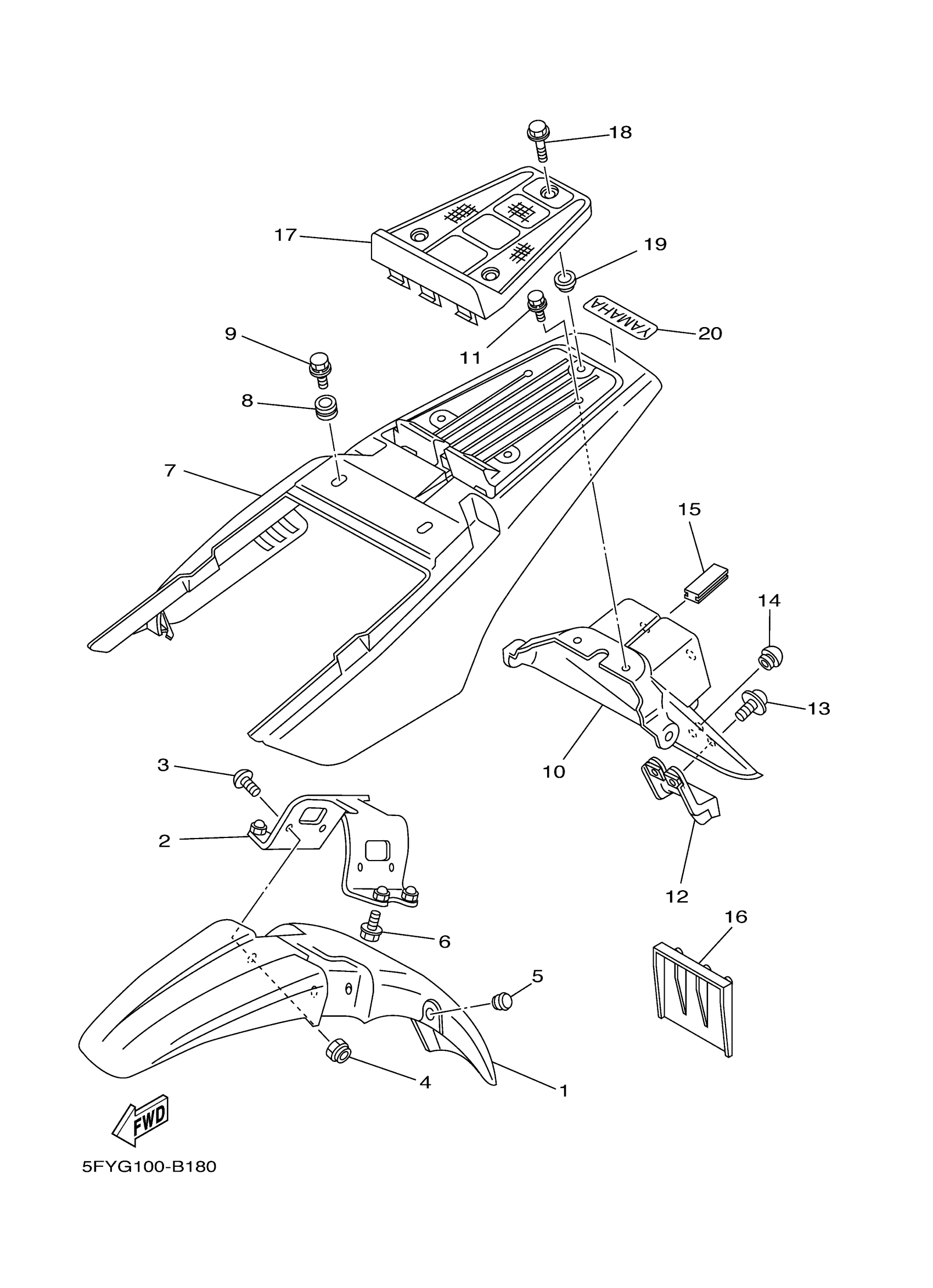

Yamaha TW200RC (TW200 CA) 5FYH 2003 FENDER Diagram

FENDER, FRONT

BRACKET, FENDER

SCREW, C.R. BINDING (2T4)

NUT, S/L FLANGE

PLUG(2GU)

BOLT, FLANGE

FENDER, REAR

DAMPER, SIDE COVER (437)

BOLT, WITH WASHER (10V)

BRACKET, LICENSE

BOLT, WITH WASHER

BRACKET, REFLECTOR

SCREW, WITH WASHER(52W)

PLUG

SEAL

FLAP

COVER, REAR FENDER

BOLT, FLANGE

COLLAR (8G8)

EMBLEM, YAMAHA
