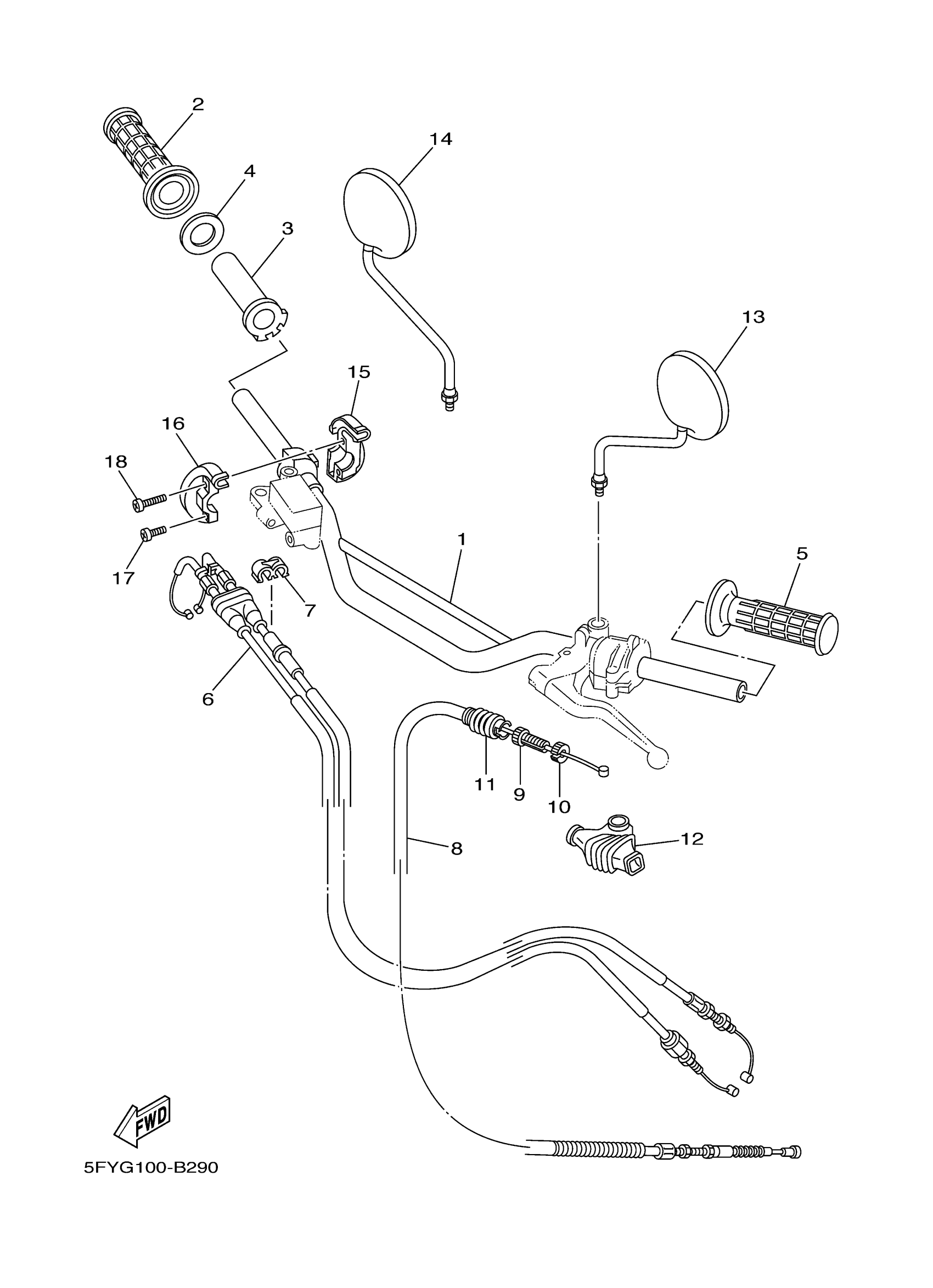

Yamaha TW200R1C (TW200 CA) B75W 2024 STEERING HANDLE & CABLE Diagram

Description

Price

HANDLEBAR

5LB-26111-00-00

$66.99

GRIP (R.H)

1LX-26242-01-00

$34.99

TUBE, THROTTLE GUIDE

5BE-26243-00-00

$17.49

RING, LEAF

3Y1-26249-00-00

$9.99

GRIP (L.H)

1LX-26241-01-00

$33.99

THROTTLE CABLE ASSY

5LB-26302-03-00

$51.99

CLAMP(4KB)

90464-06214-00

$3.61

CABLE, CLUTCH

5EK-26335-00-00

$45.99

BOLT

90123-08002-00

$10.49

NUT

90179-08030-00

$5.49

BOOT, WIRE

1E6-26342-00-00

$30.99

COVER, LEVER

1E6-26372-00-00

$23.99

MIRROR ASSY., 2

5Y1-26290-11-00

$75.99

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$53.99

CAP, GRIP UPPER

3LN-26281-01-00

Unavailable

CAP, GRIP LOWER

3LN-26282-01-00

Unavailable

SCREW, PAN HEAD

98517-05020-00

Unavailable

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable
