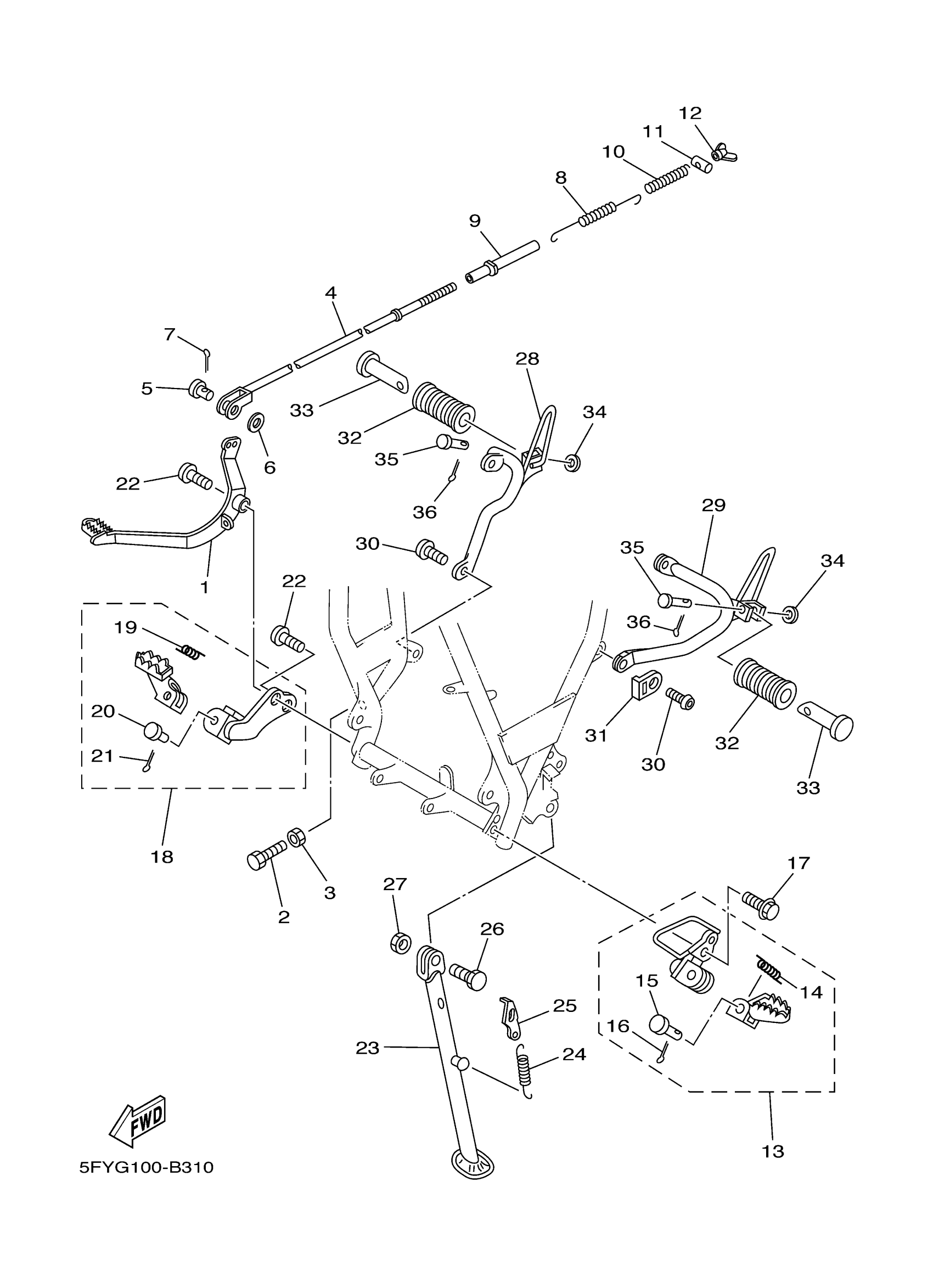

Yamaha TW200R1C (TW200 CA) B75W 2024 STAND & FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

2JX-27211-00-90

$64.99

2

BOLT, HEXAGON

97017-06020-00

$4.06

3

NUT(JN5)

95317-06700-00

$8.49

4

ROD, BRAKE

2JX-27231-00-00

$23.99

5

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

6

WASHER(6TA)

92907-06200-00

$8.49

7

PIN, COTTER (648)

91490-20015-00

$2.20

8

SPRING, TENSION

90506-18289-00

$14.99

9

COVER, SPRING

1M1-27244-00-00

$6.99

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

PIN 1562723700

90249-12008-00

$8.49

12

NUT, WING (1K5)

90175-06013-00

$4.88

13

FRONT FOOTREST ASSY (LEFT)

2JX-27410-00-90

$84.99

14

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

15

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

16

PIN, COTTER

91490-25020-00

Unavailable

17

BOLT,FLANGE

95817-12025-00

Unavailable

18

FRONT FOOTREST ASSY (RIGHT)

15A-27420-02-90

Unavailable

19

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

20

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

21

PIN, COTTER

91490-25020-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-10019-00

Unavailable

23

STAND, SIDE

2JX-27311-02-00

Unavailable

24

SPRING, MAIN STAND

4KN-27116-00-00

Unavailable

25

LINK, SIDE STAND

5RS-27315-00-00

Unavailable

26

BOLT

90109-10473-00

Unavailable

27

NUT, U

90185-10037-00

Unavailable

28

BRACKET 2

2JX-27442-11-00

Unavailable

29

BRACKET 1

5RS-27432-01-00

Unavailable

30

BOLT, BUTTON

92017-08016-00

Unavailable

31

WASHER, SPECIAL

2JX-27437-00-00

Unavailable

32

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

33

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

34

WASHER, PLATE (888)

90201-20279-00

Unavailable

35

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

36

PIN, COTTER (648)

91490-20015-00

$2.20
